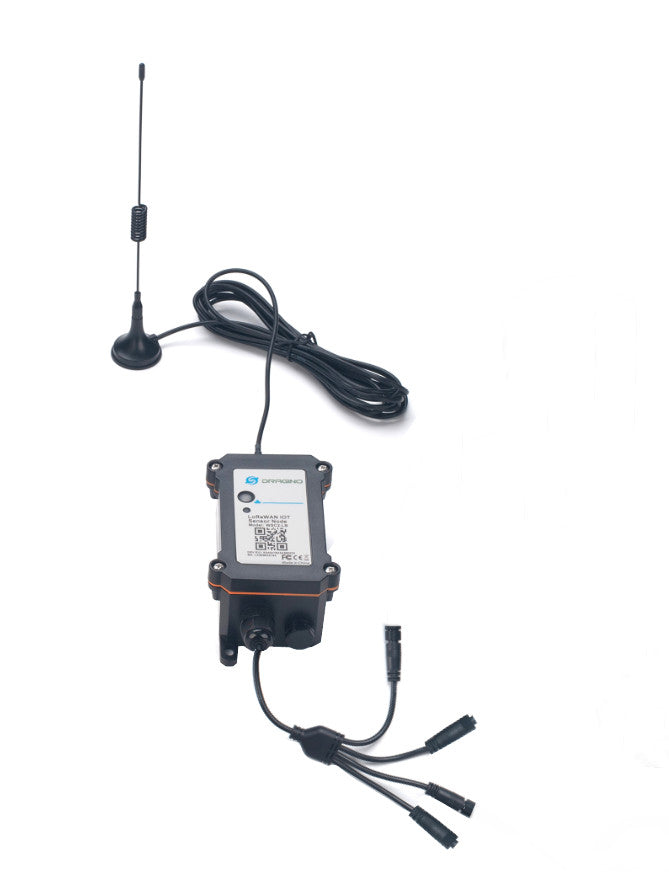

Dragino WSC2-L, LoRaWAN Transmitter for Weather Stations, EU868

The Dragino WSC2-L is the central wireless unit for the Dragino weather station: it reads connected weather sensors via RS485 and pulse input and transmits the measured values via LoRaWAN to any network server. It supports all sensors in the Dragino WSS series, from the 9-in-1 WSS-09 sensor and rain gauges to radiation and air quality sensors; additionally, RS485 sensors from third-party manufacturers can be integrated. This transforms a transmitter and freely combinable sensors into a weather station precisely tailored to the specific measurement task.

Main Features

• LoRaWAN 1.0.3 Class A, compatible with standard LoRaWAN gateways and network servers such as TTN or ChirpStack
• Supports all Dragino WSS weather sensors; uplink length adapts dynamically to the connected sensors
• RS485 interface for Dragino and third-party sensors, as well as pulse input for the WSS-08 optical rain gauge or tipping bucket rain gauges
• Parameterization via Bluetooth 5.1, AT commands, or LoRaWAN downlink; wireless firmware update via OTA
• External 12V supply with integrated 1000 mAh Li-ion battery as a buffer, IP66 housing for outdoor use

Specifications

Wireless

• Protocol: LoRaWAN 1.0.3, Class A
• Frequency band: EU868
• Activation: OTAA, each device with its own set of keys (DevEUI, AppEUI, AppKey) from the factory
• Standard transmission interval: 20 minutes (adjustable)

Interfaces

• RS485 for Dragino WSS sensors and third-party sensors
• Pulse input for rain gauges
• Expansion to multiple RS485 sensors via the 1-to-4 distribution cable DR-F6C-4M (sold separately)

Parameterization and Firmware

• Bluetooth 5.1
• AT commands
• LoRaWAN downlink
• Wireless firmware update (OTA)

Power Supply

• Input and charging voltage: 12 V DC
• Integrated battery: 1000 mAh Li-ion, rechargeable

Housing

• Protection class: IP66

Scope of Delivery

• 1 × WSC2-L transmitter (without sensors, without solar supply)

Compatible Sensors

• WSS-09, 9-in-1 weather sensor with ultrasonic wind measurement
• WSS-08, optical precipitation gauge
• WSS-21, tipping bucket precipitation gauge
• WSS-22, wind speed and wind direction sensor
• WSS-23, CO2 and particulate matter sensor PM2.5/PM10
• WSS-24, rain and snow sensor with heating
• WSS-25, temperature, humidity, light, and air pressure sensor
• WSS-26, global radiation sensor
• WSS-27, PAR sensor

Note: The WSC2-L is not designed for battery-only operation. The transmitter and sensors are powered together via a 12V solar power system, consisting of a solar panel, MPPT charge controller, and a buffer battery. These components, as well as a control cabinet, are not included and are typically sourced locally to match the sensor configuration. The internal 1000 mAh battery serves as a buffer for the transmitter.

Application Areas

• Agricultural weather stations for irrigation planning, crop protection, and frost warning, e.g., with WSS-09, rain gauge, and radiation sensors
• Greenhouse and experimental sites with targeted combinations of PAR, global radiation, and climate sensors
• Municipal climate and environmental monitoring networks with wind, precipitation, particulate matter, and noise data via a comprehensive LoRaWAN network
• Industrial and infrastructure-related sites where existing third-party RS485 sensors are to be connected additionally via LoRaWAN
