Description
The WS2313C-2020-V1.2 is a highly integrated, intelligent RGB LED in a particularly compact 2020 SMD package, combining control logic and RGB LEDs in a single component. It forms a fully addressable pixel and is ideal for applications with high pixel density and limited installation space.
Thanks to an integrated constant current driver, signal conditioning, and reset circuit, it ensures uniform brightness as well as stable and consistent color reproduction. Control is via a single data line with a high transmission rate, making it easy to implement large LED chains.
Features:
- Integrated control and RGB chip in an ultra-compact 2020 SMD package
- Fully addressable RGB pixel
- Built-in signal amplification and reset circuit
- Constant current driver for uniform brightness and color consistency
- No external components required
- Serial data transmission via one line
- High refresh rate for flicker-free display
- Low quiescent current and energy-efficient operation
- Suitable for high LED density applications
- Long lifespan and good EMC/EMI properties
Technical Data:
- Supply voltage: +3.3 V to +5.3 V
- Operating temperature: -40 °C to +85 °C
- Color depth: 24 bit (256 levels per channel, 16.7 million colors)
- Data transfer rate: up to 800 Kbps
- Refresh rate: ≥ 2 kHz
- Package type: 2020 SMD

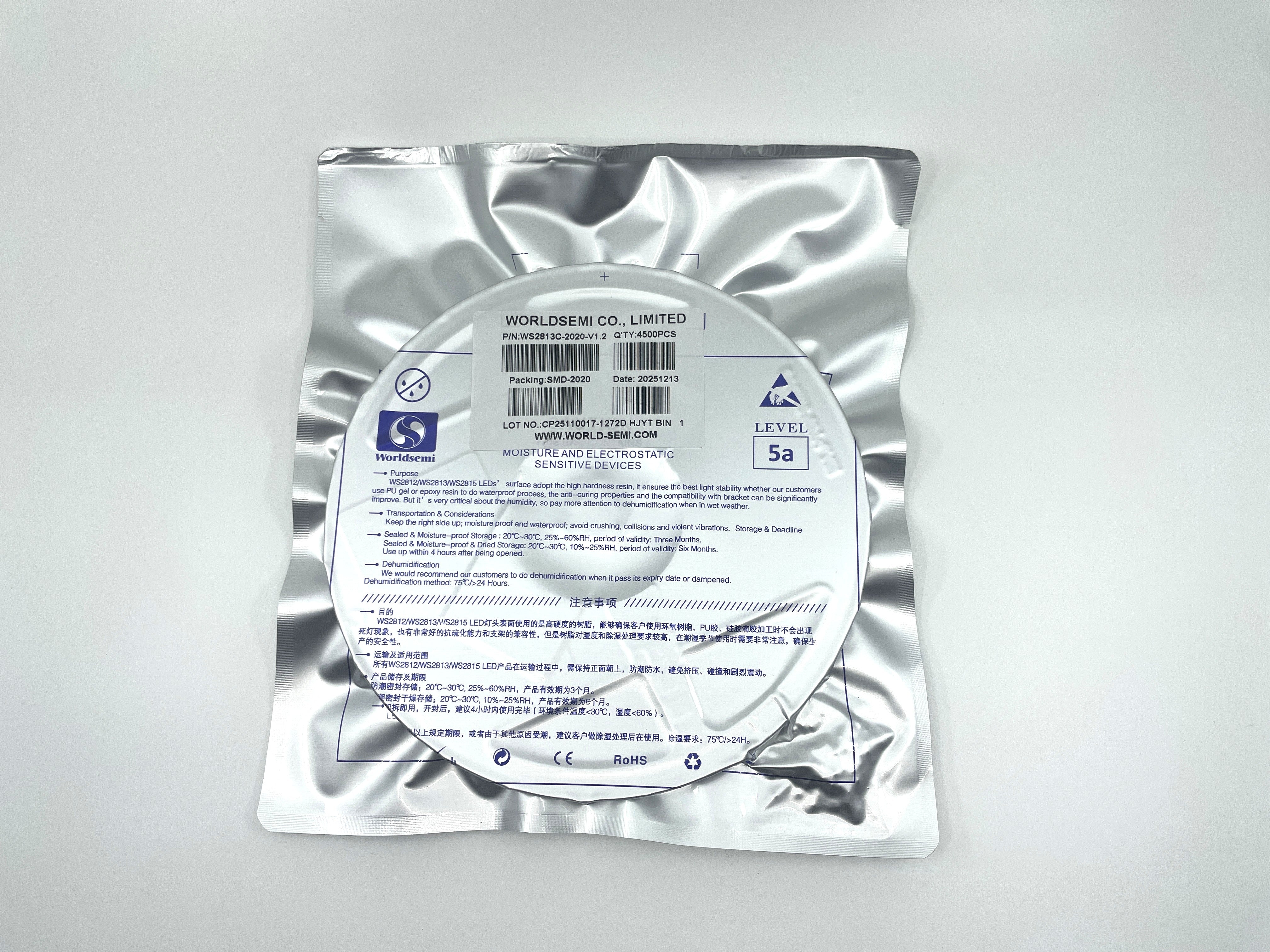

- Packaging: Reel with 4500 pieces
