Description
The WS2813B/2021 is a smart RGB LED in a compact 2021 SMD package, integrating control logic and RGB LEDs into a single component. It forms a fully addressable pixel and was specifically developed for applications requiring high reliability and fail-safety.
Thanks to the dual data line (DIN / BIN), data transmission remains intact even if a single LED within the chain fails. In combination with an integrated constant current driver, signal amplification, and reset circuit, the WS2813B/2021 ensures uniform brightness, stable color reproduction, and reliable operation even in large LED installations.
Features:
- Integrated control and RGB chip in 2021 SMD package
- Fully addressable RGB pixel
- Dual data line (signal redundancy for uninterrupted operation)
- Built-in signal amplification and reset circuit
- Constant current driver for uniform brightness and color consistency
- No external components required
- Serial data transmission over one line with backup signal
- High refresh rate for flicker-free display
- Low quiescent current and energy-efficient operation
- Good EMC/EMI properties and long lifespan
Technical Data:
- Supply voltage: +3.3 V to +5.3 V
- Operating temperature: -40 °C to +85 °C
- Color depth: 24 bit (256 levels per channel, 16.7 million colors)
- Data transfer rate: up to 800 Kbps
- Refresh rate: ≥ 2 kHz
- Package type: 2021 SMD

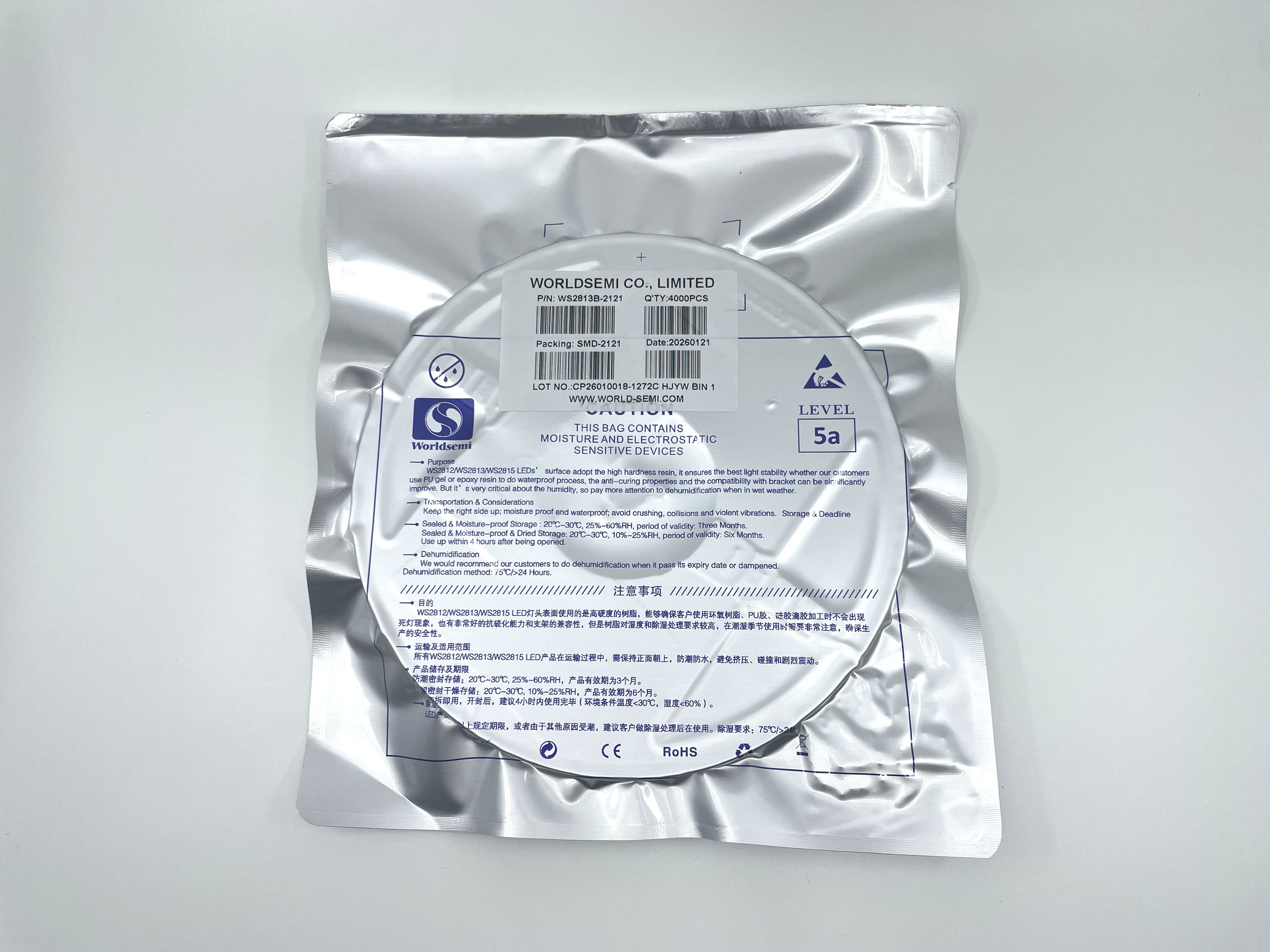

- Packaging: Reel of 4000 pieces
