Description

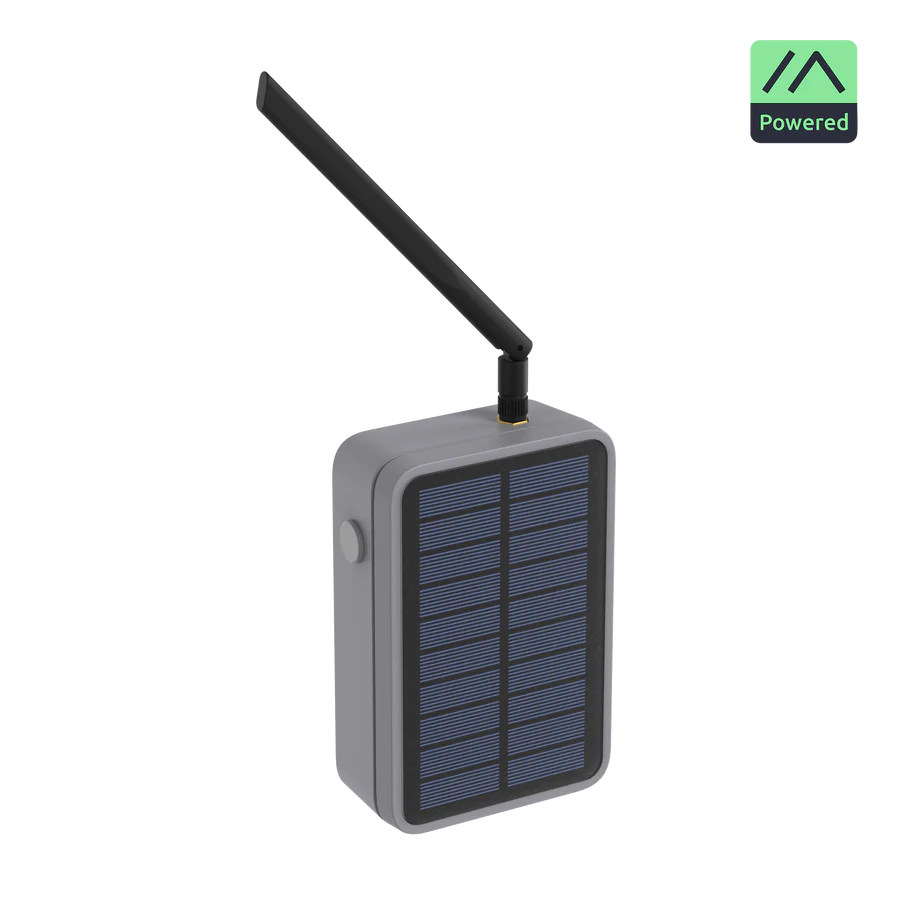

The WisMesh Repeater Mini V2 is the second generation of the compact, solar-powered Meshtastic repeater, which extends and stabilizes LoRa mesh networks in remote or off-grid areas. Based on the RAK4631 WisBlock module and pre-installed Meshtastic firmware, it is ready for immediate use and can be easily configured via Bluetooth using the Meshtastic app.
Housed in a robust, IP67-certified enclosure with a powerful antenna and a 3200 mAh battery, the repeater is ideal for continuous outdoor use. The integrated solar panel ensures self-sufficient operation – without any external power supply. Compared to the first generation, the waterproofing at the USB-C port (dedicated waterproof connector instead of rubber seal) and the battery attachment (3M VHB adhesive) have been improved.
Key Features:
- RAK4631 Core module with nRF52840 and SX1262 LoRa transceiver (22 dBm, EU868)
- IP67 Unify enclosure with RP-SMA connector and sealed USB-C port
- 3200 mAh Li-Ion battery with solar charging for off-grid operations
- Easy setup via Bluetooth using the Meshtastic app
- Flexible mounting options: wall or mast mounting possible
