Waveshare Industrial Isolated USB to RS232/485 Converter

Waveshare 26681 Industrial Isolated USB to RS232/485 Converter, Original FT4232HL Chip, Supports USB to 2-Channel RS232 + 2-Channel RS232/485, Wall and Rail Mounting Available

Features:

• Uses the original chip FT4232HL, fast communication, stable and reliable, better compatibility.

• Supports USB to 2-channel isolated RS232/485 + 2-channel isolated RS232.

• Integrated unibody power supply isolation, provides stable isolated voltage, does not require additional power supply for the isolated connection

• Integrated unibody digital isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption

• Integrated TVS (Transient Voltage Suppressor), effectively suppresses overvoltages and transient voltage spikes in the circuit, lightning protection and ESD protection

• Built-in self-healing fuse and protection diodes, ensures stable current/voltage outputs, provides overcurrent/overvoltage protection, improves shock resistance

• Integrated 120R connection resistor on the RS485 interface, can be activated/deactivated via jumper

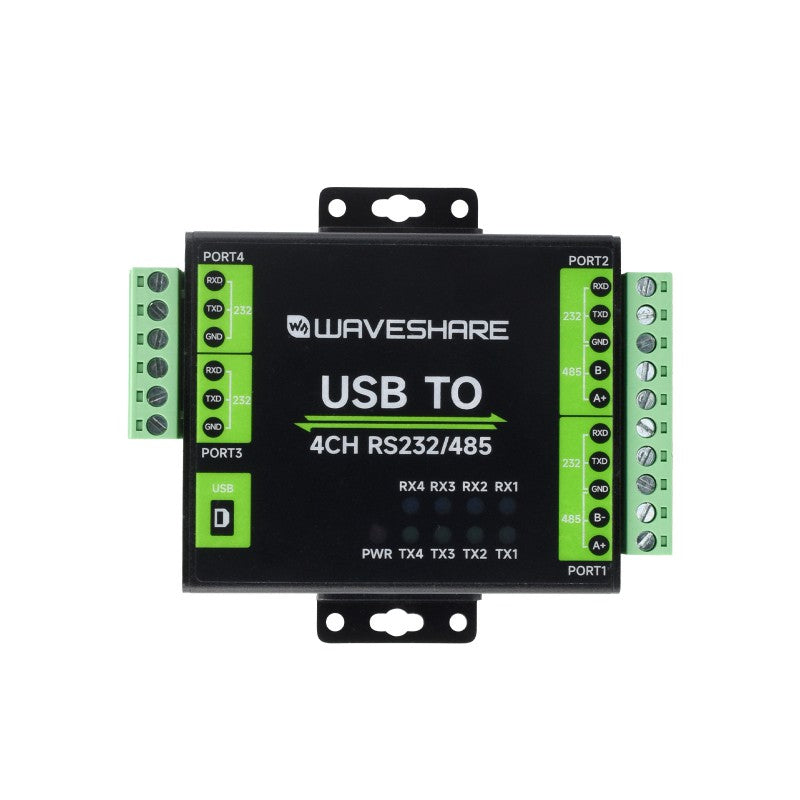

• 9 LEDs to display power and transceiver status

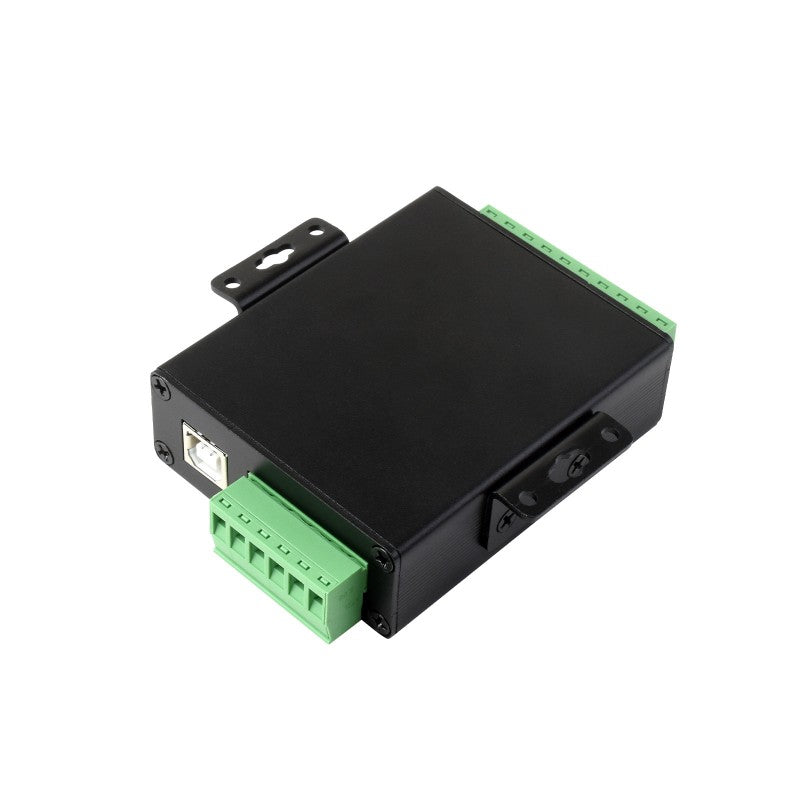

• Industrial-grade metal housing, supports wall and rail mounting, solid and elegant, easy to install

Specifications:

• Product Type: Industrial Digital Isolated USB to RS232/485 Converter
• Host port: USB
• Device connection: RS232/485
• USB:
  • Operating voltage: 5 V

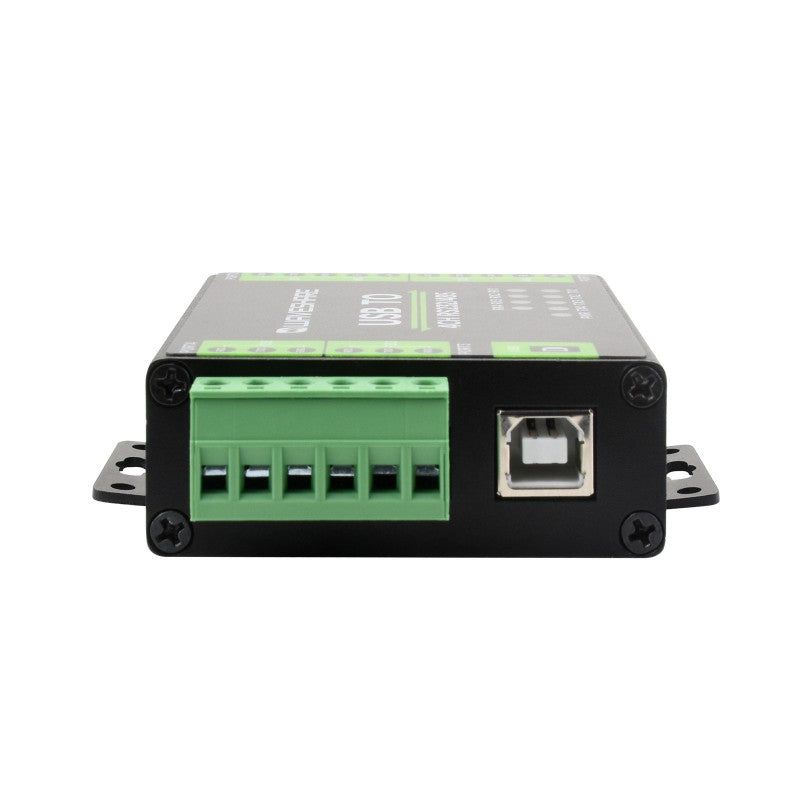

  • Connection: USB-B
  • Fuse: 200 mA self-healing fuse, isolated output
• Isolated RS232:

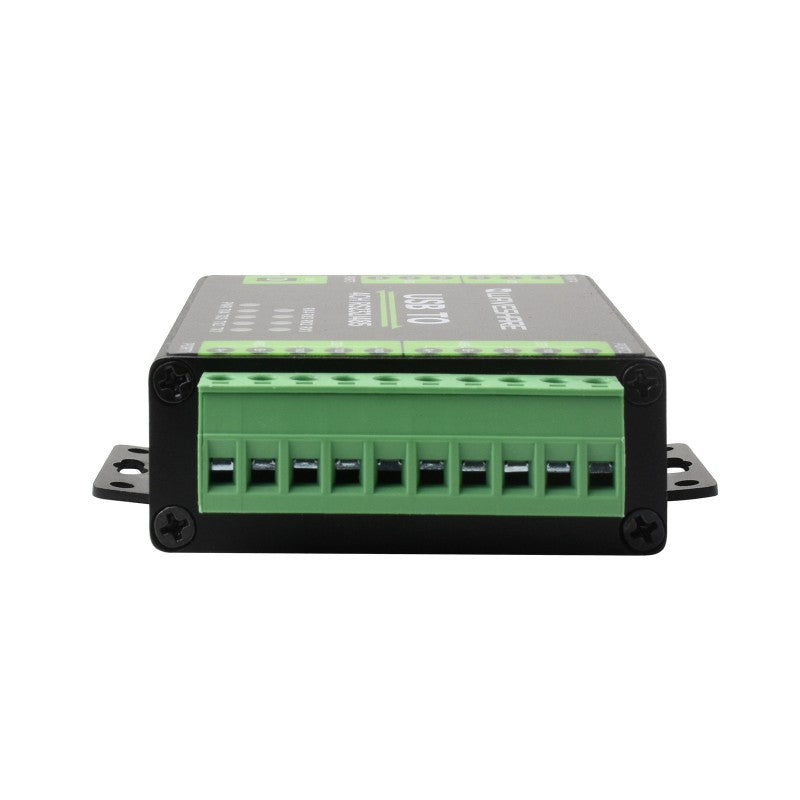

  • Connection: screw terminal
  • Fuse: TVS diode, overvoltage and ESD protection, power isolation and signal isolation
  • Transmission mode: Point to point
  • Baud rate: 300 bit/s to 921,600 bit/s
• Isolated RS485:
  • Connection: screw terminal
  • Directional control: Automatic hardware control
  • Fuse: TVS diode, overvoltage and ESD protection, power isolation and signal isolation
  • Resistor: Onboard reserved 120R matching resistor, NC by default, enabled via jumper
  • Transmission mode: Point-to-multipoint connections (up to 32 nodes, for 16 or more nodes, the use of repeaters is recommended)
  • Baud rate: 300 bit/s to 921,600 bit/s
• Show:
  • PWR: Red power indicator, lights up when a USB connection is established and voltage is detected
  • TX1 to TX4: Green TX indicator, lights up when the USB port is sending data
  • RX1 to RX4: Blue RX indicator, lights up when the device ports are sending data back
• Operating environment:
  • Operating temperature: -40 to 85 °C
  • Humidity: 5% RH to 95% RH
• Operating systems: Mac, Linux, Android, Windows 11/10/8.1/8/7

For further technical details please visit the manufacturer's product page .
