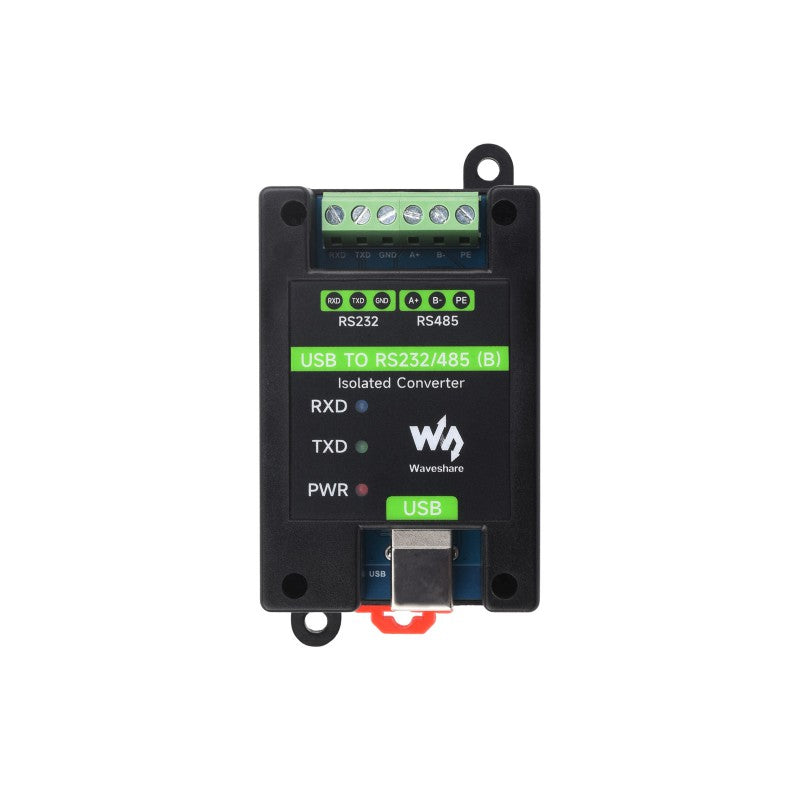

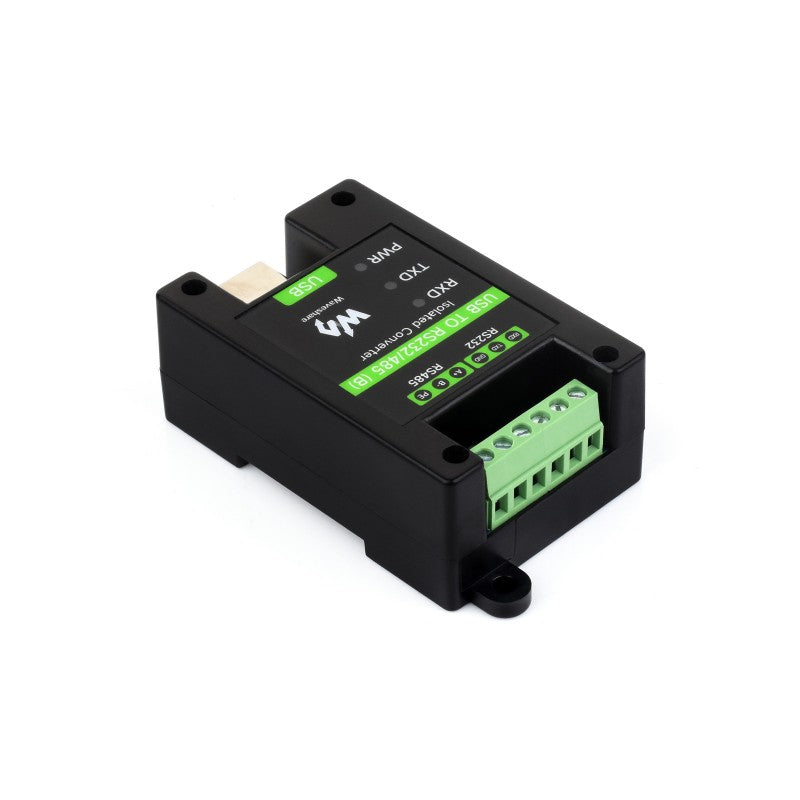

USB to RS232/RS485 converter wall & DIN rail mounting

Waveshare 26547 Industrial-grade USB to RS232/RS485 Converter with Isolation, Built-in Original FT232RNL Chip, Multiple Fuse, Support Wall and Rail Mounting

Features:

• Integrated original FT232RNL chip. Fast communication, stable and reliable, better compatibility.
• Integrated unibody power supply isolation, provides stable isolated voltage, no additional power supply required for the isolated port.
• Overvoltage, overcurrent and ESD protection through TVS, fuse and protective diodes
• Integrated TVS (Transient Voltage Suppressor), effectively suppresses overvoltages and transient voltage spikes in the circuit, lightning and electrostatic safe.
• Integrated 120R connection resistor on the RS485 interface, can be activated/deactivated via jumper
• 3 LEDs to indicate power and transceiver status
• Industrial ABS enclosure for rail mounting, small, easy to install and cost-effective

Specifications:

• Product Type: Industrial-Grade Isolated USB to RS232/485 Converter
• Host connection: USB
• Device connection: RS232/485
• USB:
  • Operating voltage: 5 V
  • Connection: USB-B
  • Fuse: 200 mA self-recovery fuse, output isolation
  • Transmission distance: approx. 5 m
• Isolated RS485:
  • Connection: screw terminal
  • Directional control: Automatic hardware control
  • Fuse: 600 W lightning and surge protection, 15 kV ESD fuse (integrated 120R compensating resistor)
  • Transmission distance: Up to 1200 m
  • Transmission mode: Point-to-multipoint connections (up to 32 nodes, for 16 or more nodes, the use of repeaters is recommended)
  • Baud rate: 300 bit/s to 921,600 bit/s
• Isolated RS232:
  • Connection: screw terminal
  • Transmission distance: approx. 15 m
  • Transmission mode: Point to point
  • Baud rate: 300 bit/s to 921,600 bit/s
• LED displays:
  • PWR: Red power indicator, lights up when a USB connection is established and voltage is detected
  • TXD: Green TX indicator, lights up when the USB port is sending data
  • RXD: Blue RX indicator, lights up when the device ports are sending data back
• Operating environment:
  • Operating temperature: -15 °C to 70 °C
  • Humidity: 5% RH to 95% RH
• Supported operating systems: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7
• Miscellaneous:

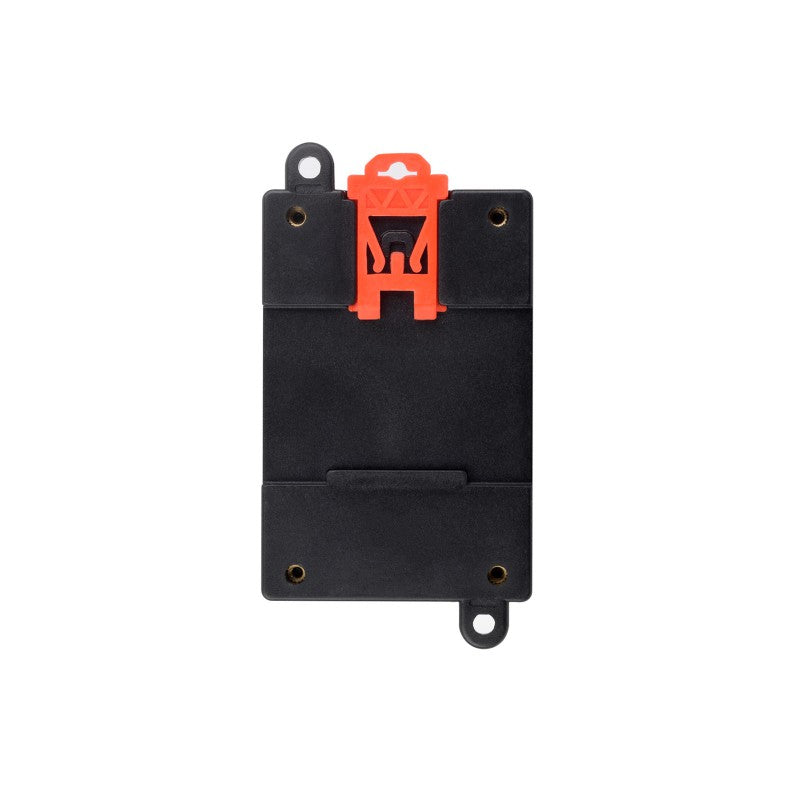

  • Housing: ABS housing for rail mounting, suitable for 35 mm DIN rail
  • Dimensions: 81.9 x 54.0 x 32.0 mm

For further technical details please visit the manufacturer's product page .
