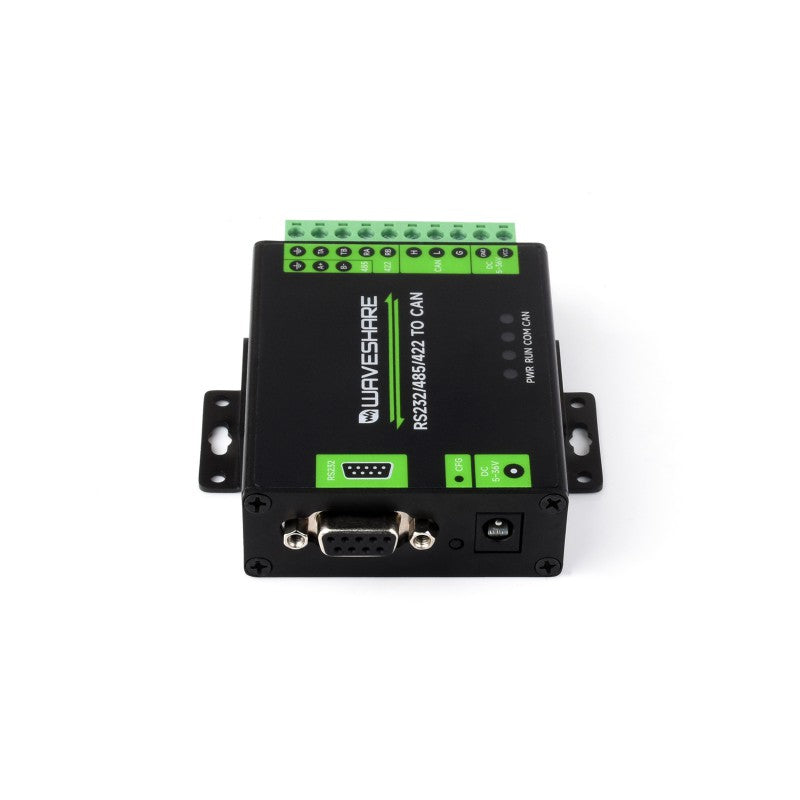

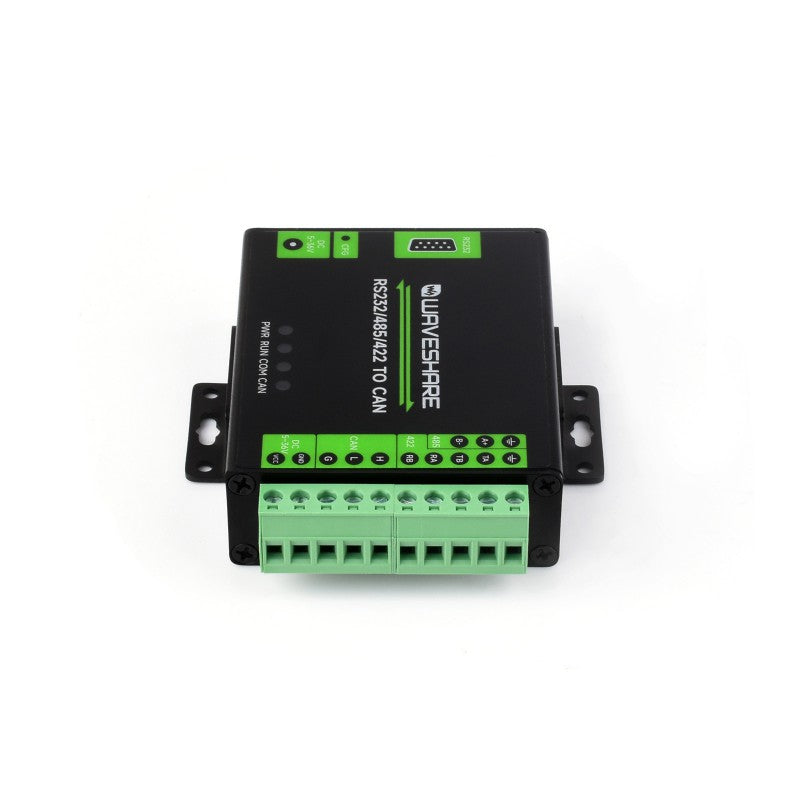

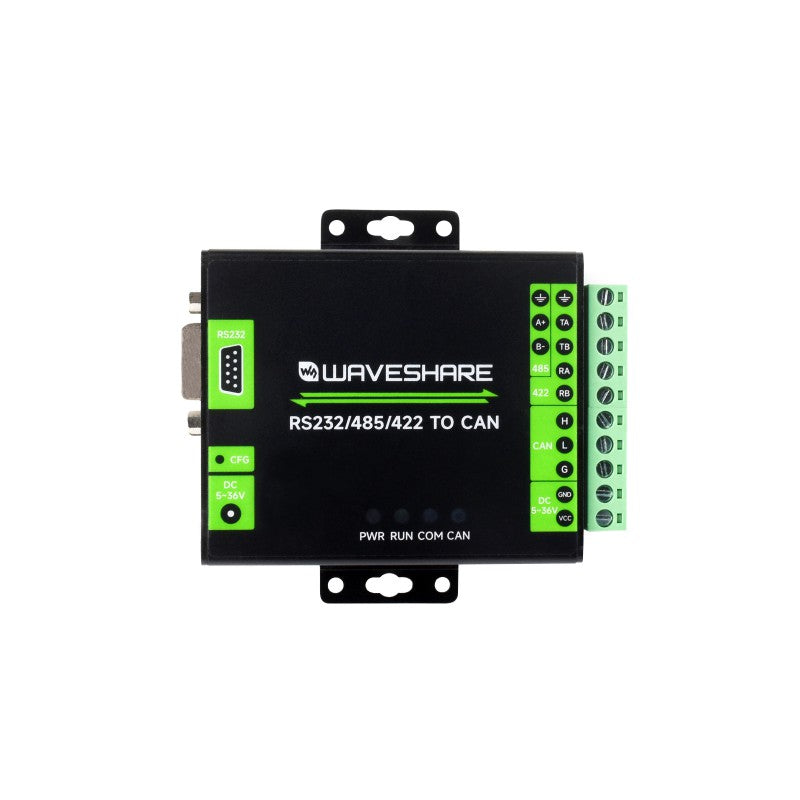

Waveshare RS232/485/422 to CAN industrial isolated converter, supports Modbus RTU conversion

Waveshare 26333 RS232/485/422 to CAN industrial isolated converter, supports Modbus RTU conversion, multiple protection circuits

Features:

• Supports data communication and conversion between RS232/485/422 and CAN interfaces.

• Complies with CAN 2.0B specification (extended frame), compatible with CAN 2.0A specification (standard frame); conforms to ISO 11898-1/2/3.

• CAN baud rate: 10 kbps to 1000 kbps, configurable

• Supports 14 configurable filters, can only receive CAN bus data in a specific range and type

• Supports 4 operating modes: transparent conversion, transparent conversion with identifiers, format conversion and Modbus RTU protocol conversion

• Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss

• Integrated unibody power supply isolation, provides stable isolated voltage, does not require additional power supply for the isolated connection

• Integrated unibody digital isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption

• Integrated TVS (Transient Voltage Suppressor), effectively suppresses overvoltages and transient voltage spikes in the circuit, lightning and electrostatic protected

• Integrated 15 kV ESD insulation protection and 600 W lightning and surge protection

• Integrated 120R termination resistor on the RS485/RS422 port, configurable via jumper

• Supports device firmware upgrades via RS232/485/422, simplifying firmware customization

• Supports setting of operating parameters via configuration software or serial commands, saves settings after power off

• Integrated screw terminal for power supply, allows a wide input range from 5 V to 36 V DC

• 4 LEDs to display power and transceiver status

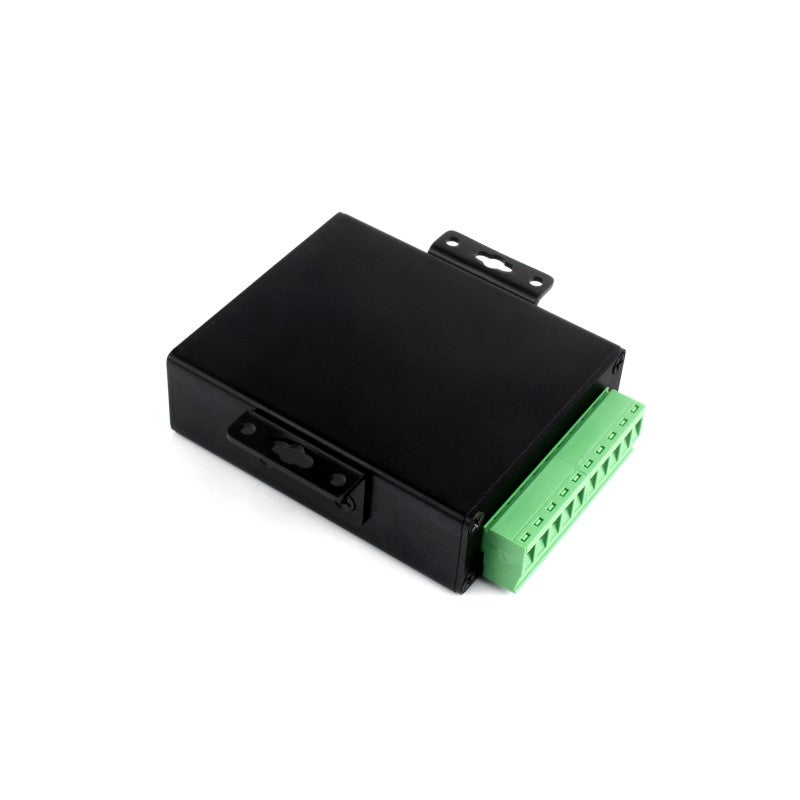

• Industrial-grade metal housing, supports wall and rail mounting, solid and elegant, easy to install

Specifications:

• Product type: Active digital isolated RS232/485/422 to CAN converter
• Power supply interface:
  • Power supply: 5 to 36 V DC
  • Safety: Anti-Reverse
• Device connection: RS232/485/422, CAN
• Isolated CAN:
  • Connection: screw terminal
  • Directional control: Automatic hardware control
  • Resistance: Onboard 120R matching resistor
  • Baud rate: 10 kbit/s to 1000 kbit/s
• Isolated RS232:
  • Connector: DB9 female
  • Transmission range: approx. 15 m
  • Transmission mode: Point to point
  • Baud rate: 1200 bit/s to 460800 bit/s
• Isolated RS485/422:
  • Connection: screw terminal
  • Directional control: Automatic hardware control
  • Fuse: TVS diode, overvoltage and ESD protection, power isolation and signal isolation
  • Resistance: Integrated 120R trim resistor, NC by default, can be activated via jumper
  • Transmission mode: Point-to-multipoint connections (485 mode: up to 32 nodes, for 16 or more nodes, the use of repeaters is recommended; 422 mode: up to 256 nodes, for 16 or more nodes, the use of repeaters is recommended)
  • Baud rate: 1200bps~460800bps
• Show:
  • PWR: Red power indicator, lights up when voltage is detected
  • RUN: System operation indicator, turns off when the CAN bus is not functioning normally
  • COM: RS232/485/422 RX indicator, lights up when the RS232, 485 or 422 port is receiving data
  • CAN: CAN-RX indicator, lights up when the CAN port receives data
• Operating environment:
  • Operating temperature: -10 to 70 °C

For further technical details please visit the manufacturer's product page .
