Description

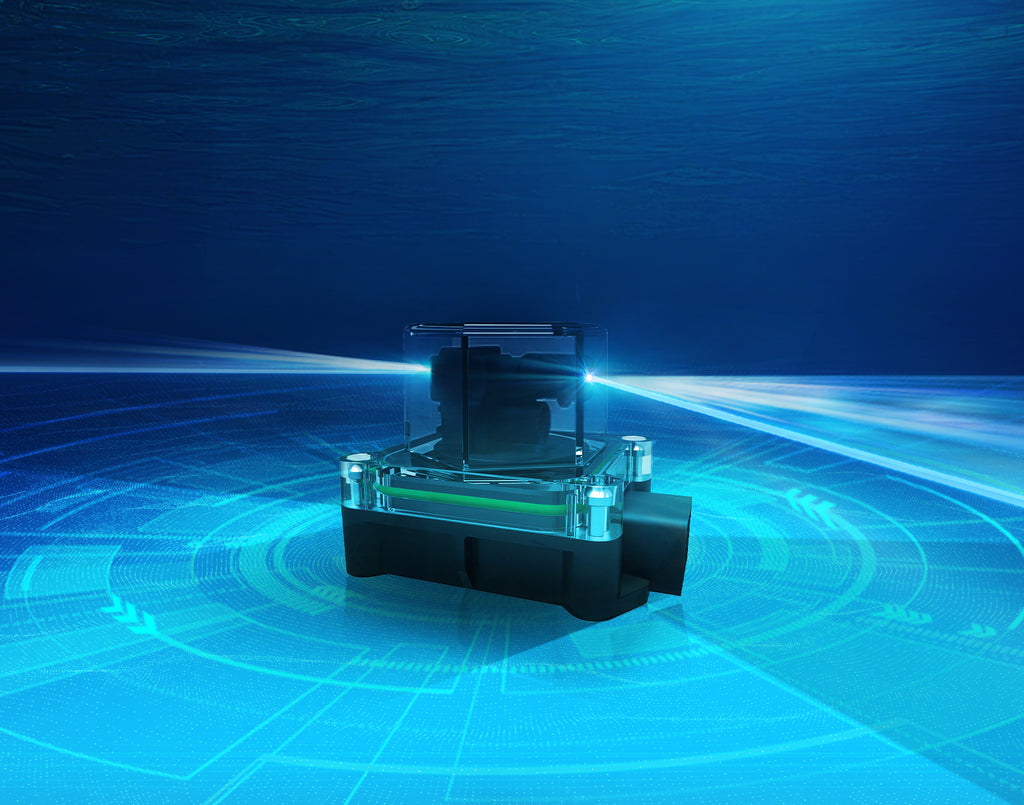

The VLS-H5 captures highly accurate point cloud data of pool walls through 360° rotation at 6 revolutions per second. In combination with SLAM algorithms, the sensor enables underwater robots to reliably map, position, and detect obstacles.
In clear water (NTU ≤ 0.5), a single scan covers more than 78 m² of pool surface. Even in turbid water (NTU ≤ 4), an effective range of ≥ 1.5 m is maintained. Hardware and software-based ambient light suppression increases tolerance to direct sunlight to 160 KLux.

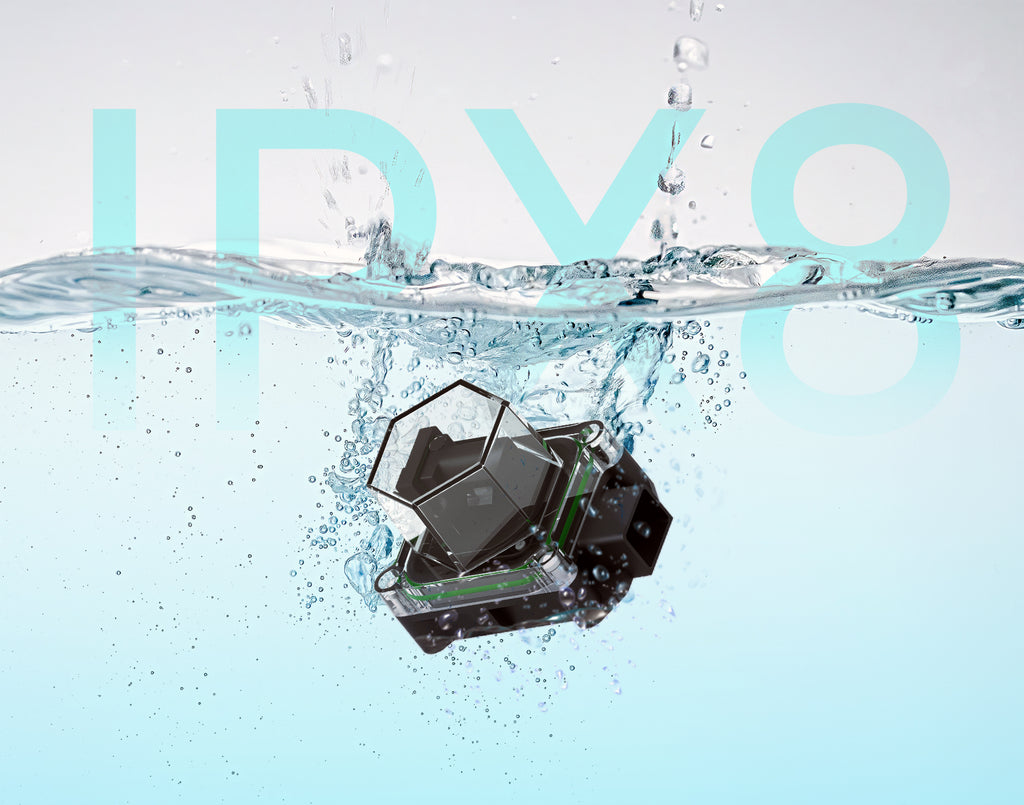

The compact housing (75 x 52 x 53 mm) is IPX8 waterproof and designed for continuous operation down to 4 m water depth. Corrosion, scratch, and UV-resistant materials and coatings ensure durability and easy integration.
Technical Data:
- Range: > 5 m (NTU ≤ 0.5) / > 1.5 m (NTU ≤ 4)
- Scan Angle: 360°
- Refresh Rate: 6 Hz
- Accuracy: < 3 cm (NTU ≤ 0.5) / < 4 cm (NTU ≤ 4)
- Repeatability: < 1 cm 1σ (NTU ≤ 0.5) / < 2 cm 1σ (NTU ≤ 4)
- Ambient Light Tolerance: 160 KLux
- Protection Class: IPX8 (up to 4 m depth)
- Operating Temperature: 0 °C – +50 °C
- Interface: UART
- Dimensions (L×W×H): 52 × 75 × 53.1 mm
- Weight: 125 g
