Description

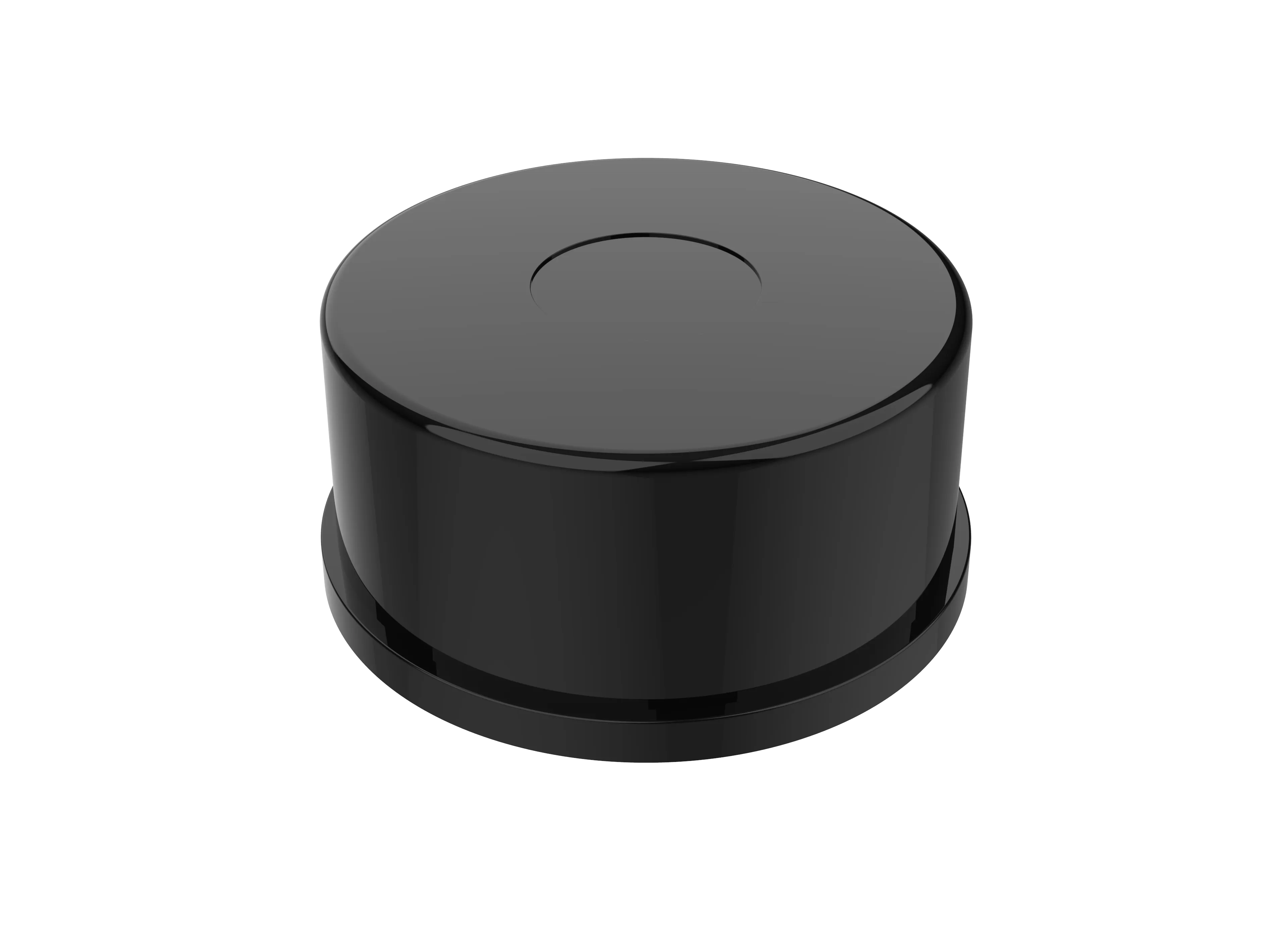

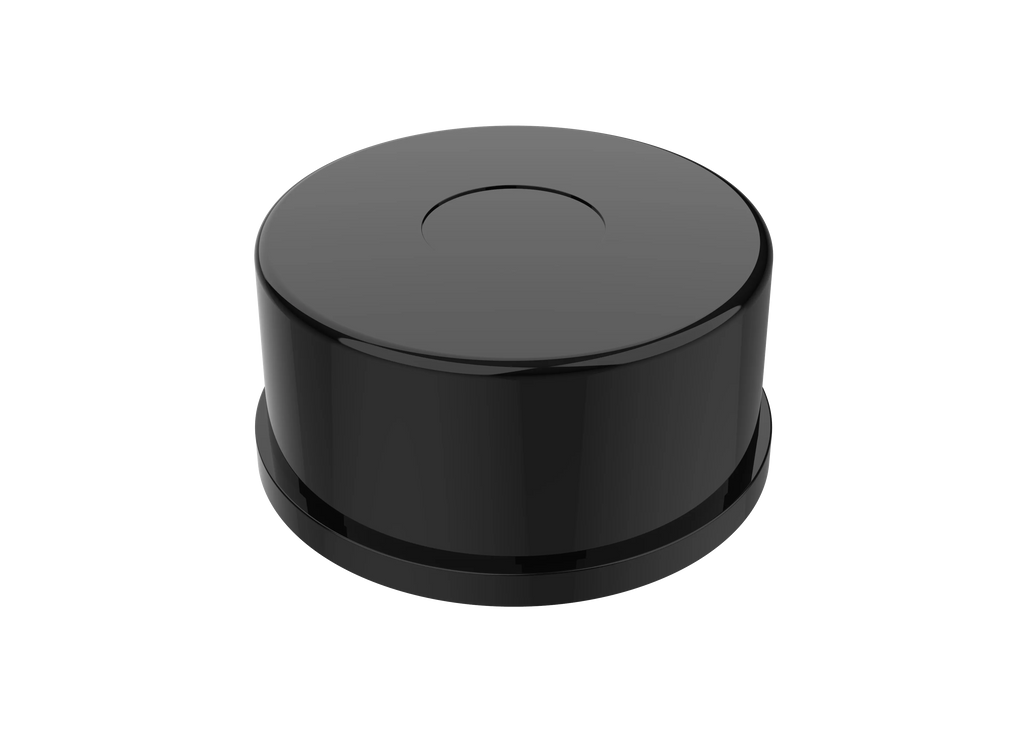

The YDLIDAR TG50 is a robust 2D LiDAR sensor with 360° omnidirectional visibility and a range of up to 50 m. Based on Time-of-Flight (ToF) technology, it combines optical, electronic, and algorithmic components for highly accurate distance measurements. The rotating system continuously acquires angular information and provides point cloud data of the environment. Thanks to its IP65 protection class, the TG50 is also suitable for demanding industrial environments.
Product features:
- 360° omnidirectional scanning with 5-12 Hz scan frequency
- Measuring range from 0.05 to 50 m
- Measurement frequency up to 20,000 Hz
- High measurement accuracy and stable performance
- High immunity to ambient light interference
- IP65 protection class (dustproof and protected against water jets)
- Laser safety according to Class I (eye-safe)
Typical applications:
- Navigation and obstacle avoidance in robots
- Industrial automation
- Safety and surveillance systems
- Intelligent transportation applications
- Environment perception and 3D reconstruction
- Digital human-machine interaction
- Robotics research and ROS education
Scope of delivery:
- TG50 LiDAR Sensor
- USB-C Cable
- USB adapter board
