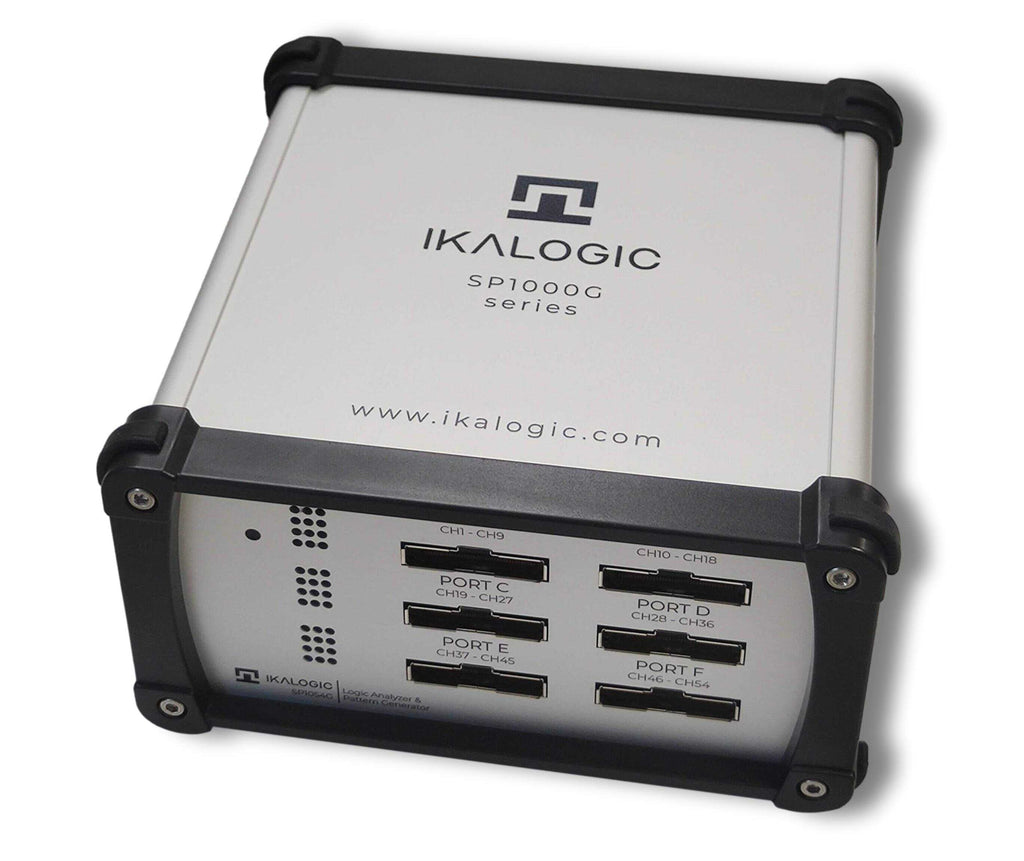

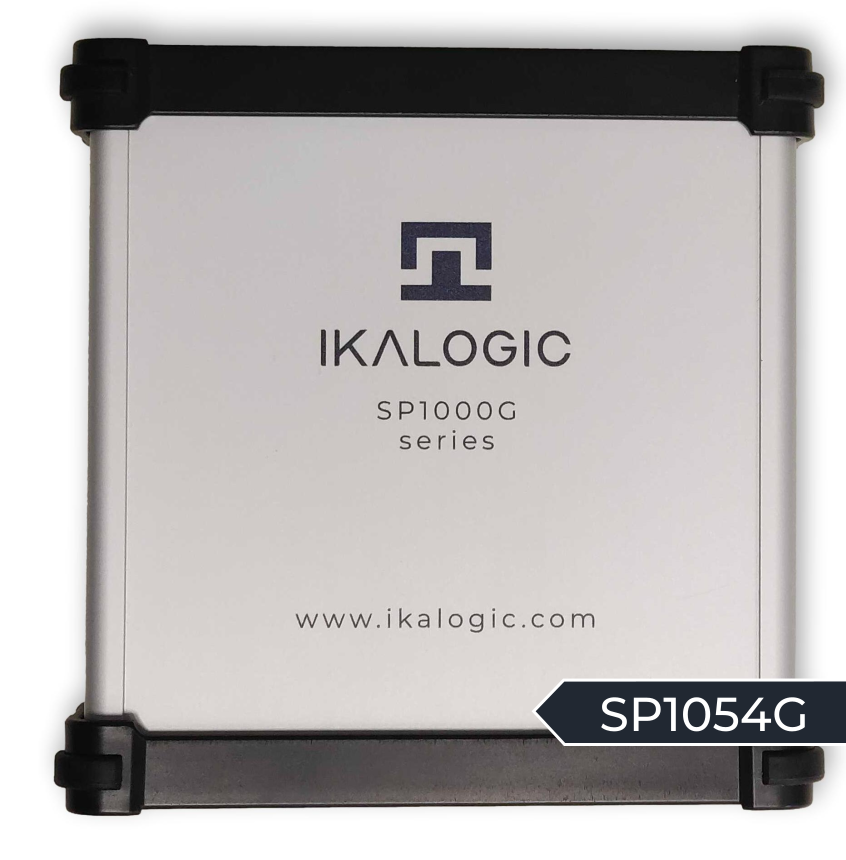

SP1054G 54 Channel Logic Analyzer & Pattern Generator

The SP1054G is the flagship of the SP1000G series and is designed for users requiring the highest channel count, maximum sampling rate, and large buffer memory. Featuring 54 fully configurable logic channels, 1 GSPS sampling rate on all channels simultaneously, and 12 GB of internal memory, this model is ideal for complex test environments in industrial, research, and high-frequency development.

Main features:

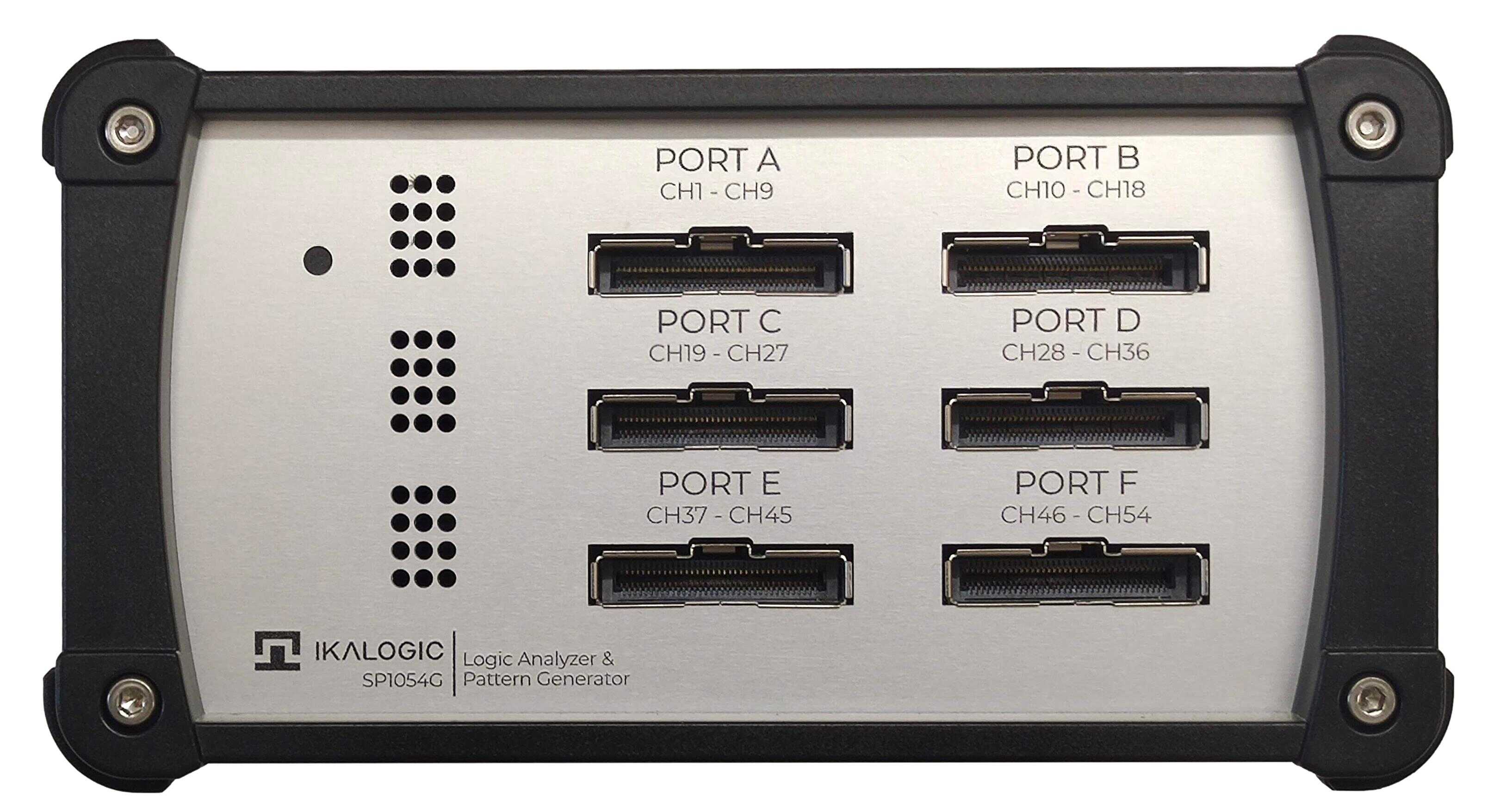

• 54 freely configurable channels (input, push-pull or open-drain)
• 1 GSPS sampling rate (1 ns resolution) – on all 54 channels simultaneously

• Pattern generator on any number of channels

• Operating modes: Timing (1 GHz) & State (up to 250 MHz)

• Supports logic levels from 0.9 V to 5 V

• 12 GB internal buffer memory
• USB 3.0 streaming interface

• Trigger IN/OUT, reference clock IN/OUT

• Platform-independent software for Windows, macOS and Linux

Typical applications:

• Fully automated tests with many parallel data lines

• Validation of complex digital systems with high channel count

• High-speed embedded debugging and logic analysis

• Research laboratories and RF systems with synchronous data requirements

• Protocol analysis with high data rate on multiple interfaces simultaneously

• Signal diagnostics of ADCs, DACs and sensor interfaces
