Description

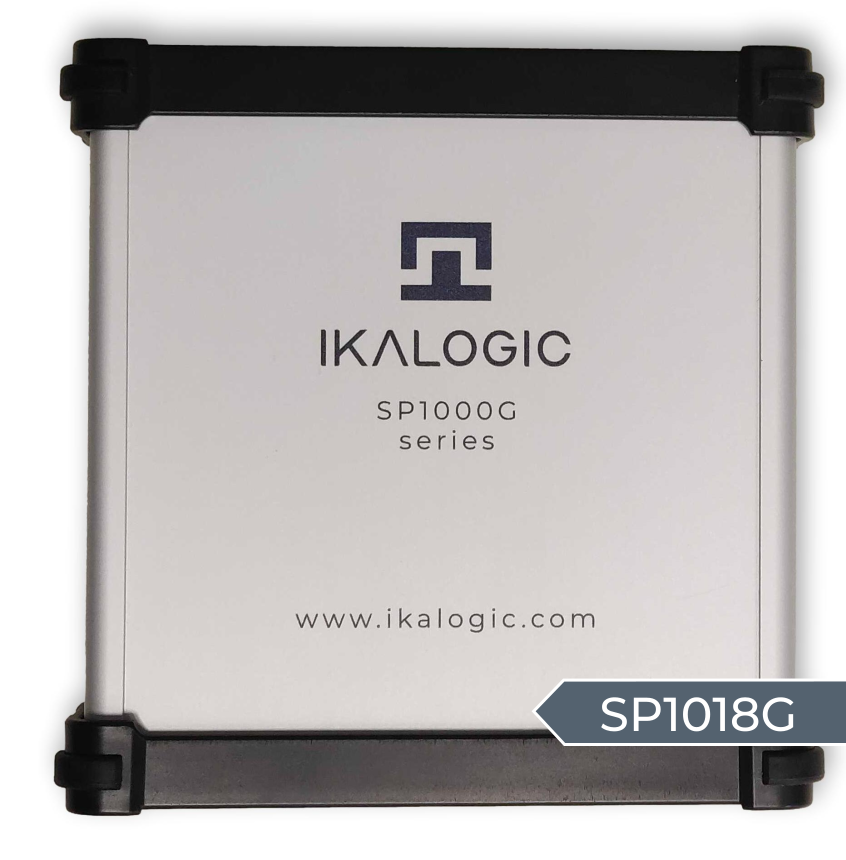

The SP1018G from the SP1000G series combines logic analysis with 1 GSPS (1 ns resolution) and a freely programmable pattern generator. With 18 fully configurable channels (usable as input, push-pull, or open-drain output), external clocking, and extensive trigger options, it is the ideal tool for developers and labs with the highest demands for precision and flexibility.
Main features:
- 18 freely configurable channels (input, push-pull or open-drain)
- 1 GSPS (1 ns time resolution) – on all 18 channels simultaneously
- Pattern generator on any number of channels
- Operating modes: Timing (1 GHz) & State (up to 250 MHz)
- Supports logic levels from 0.9 V to 5 V
- 4 GB internal memory for long, bandwidth-independent recordings
- USB 3.0 streaming interface
- Trigger IN/OUT, reference clock IN/OUT
- Platform-independent software for Windows, macOS and Linux
Typical applications:
- Automated or manual testing of semiconductors

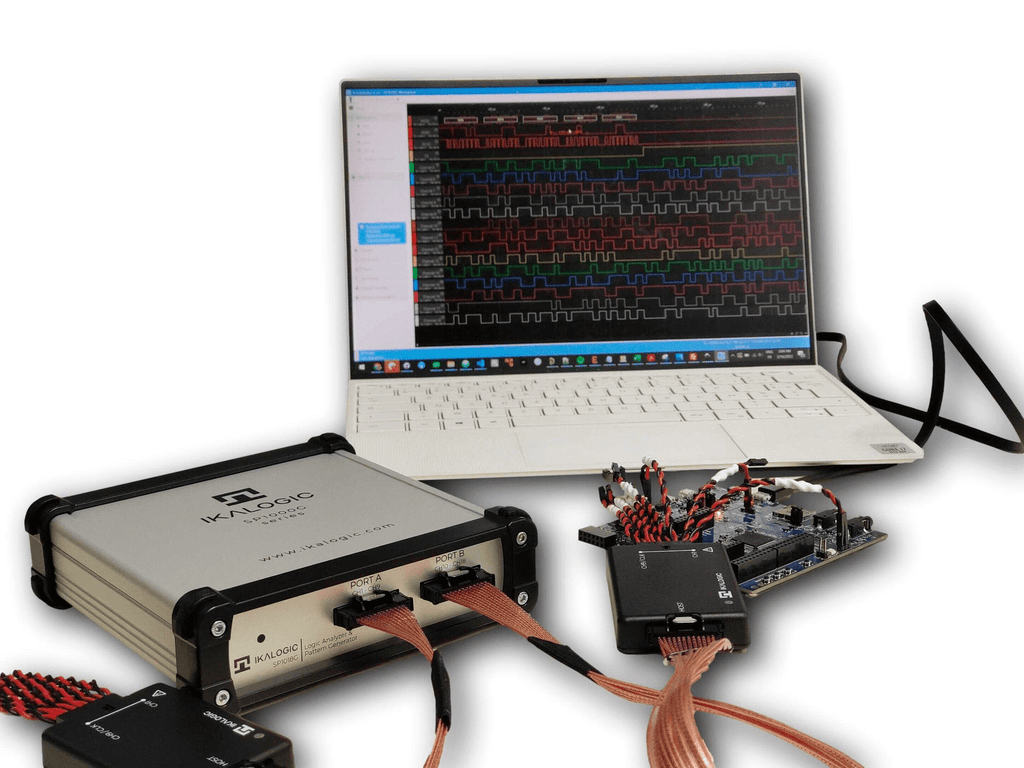

- Validation of electronic circuits
- Embedded system development and debugging
- Research & Development
- Protocol analysis: SPI, I2C, UART, 1-Wire and much more
- Analysis of ADC signals & digital data streams
