Description

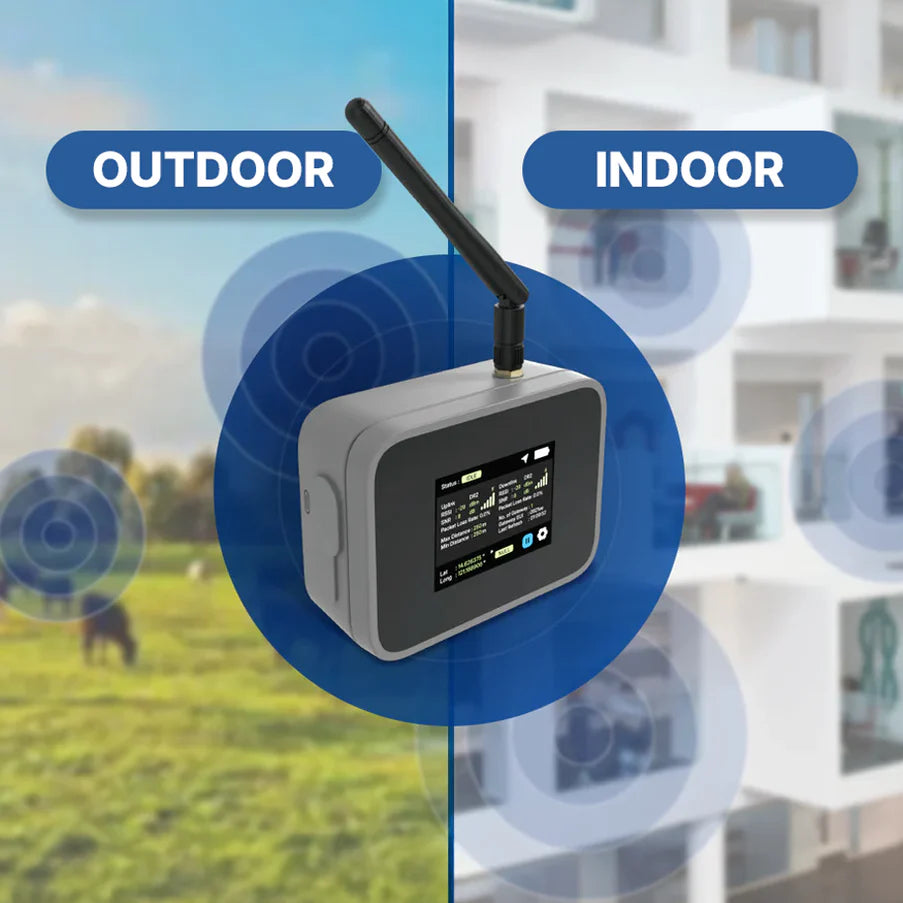

The RAKwireless Field Tester Plus (RAK10701-PLUS) is the advanced version of the proven RAK Field Tester, designed for professional users who require precise analysis and visualization of LoRaWAN networks, both indoors and outdoors. The device combines a larger display, an improved user interface, and additional analysis features to more efficiently evaluate the coverage and performance of LoRaWAN gateways.
A special advantage of the Plus model: Unlike the previous generation, the Field Tester Plus also supports indoor operation – thanks to the ability to record and display reliable measurement data even without active GPS.
Main features:
- Supports LoRaWAN frequency: EU868
- Compatible with LoRaWAN 1.0.3
- Larger 3.5-inch TFT touch display (480x320) for improved readability
- Visualization of the GPS position on an integrated map (with GPS reception)
- Works reliably even without GPS – ideal for indoor measurements
- Advanced analytics features such as SNR history and packet statistics
- Display the number of gateways/hotspots within range
- Display of minimum and maximum RSSI and SNR values
- Display of minimum and maximum distance to gateways/hotspots
- Compatible with WisToolBox, configurable via BLE
- Integrated 5000 mAh battery, rechargeable via USB-C
- Replaceable external antenna (2.3 dBi) via RP-SMA connector
- Robust housing for outdoor use
- Operating temperature: -10 °C to 60 °C
- Storage temperature: -40 °C to 80 °C
Scope of delivery:
- RAK10701-PLUS Field Tester
- 2.3 dBi antenna
- 2.8 dBi antenna
- USB-C cable
- Hard case
Documents:
