Description

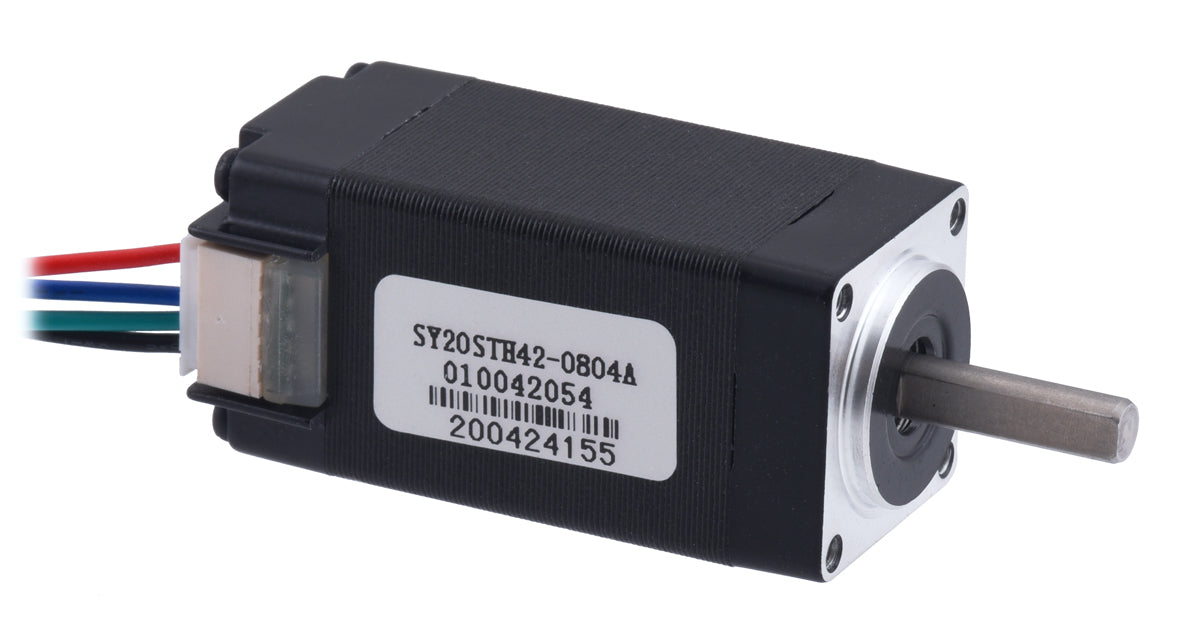

This small, 80 g NEMA 8 hybrid bipolar stepper motor from SOYO has a step angle of 1.8° (200 steps/revolution). Each phase draws 800 mA at 4.3 V, enabling a holding torque of 300 g-cm.
Features:
- Size: 20 mm square × 42 mm, without shaft (NEMA 8)
- Weight: 80 g (2.8 oz)
- Shaft diameter: 4 mm “D”
- Steps per revolution: 200
- Rated current: 800 mA per coil
- Nominal voltage: 4.3 V
- Resistance: 5.4 Ω per coil
- Holding torque: 300 g-cm (4.2 oz-in)
- Inductance: 1.5 mH per coil
- Cable length: 30 cm (12″)
- Output shaft supported by two ball bearings
