Description

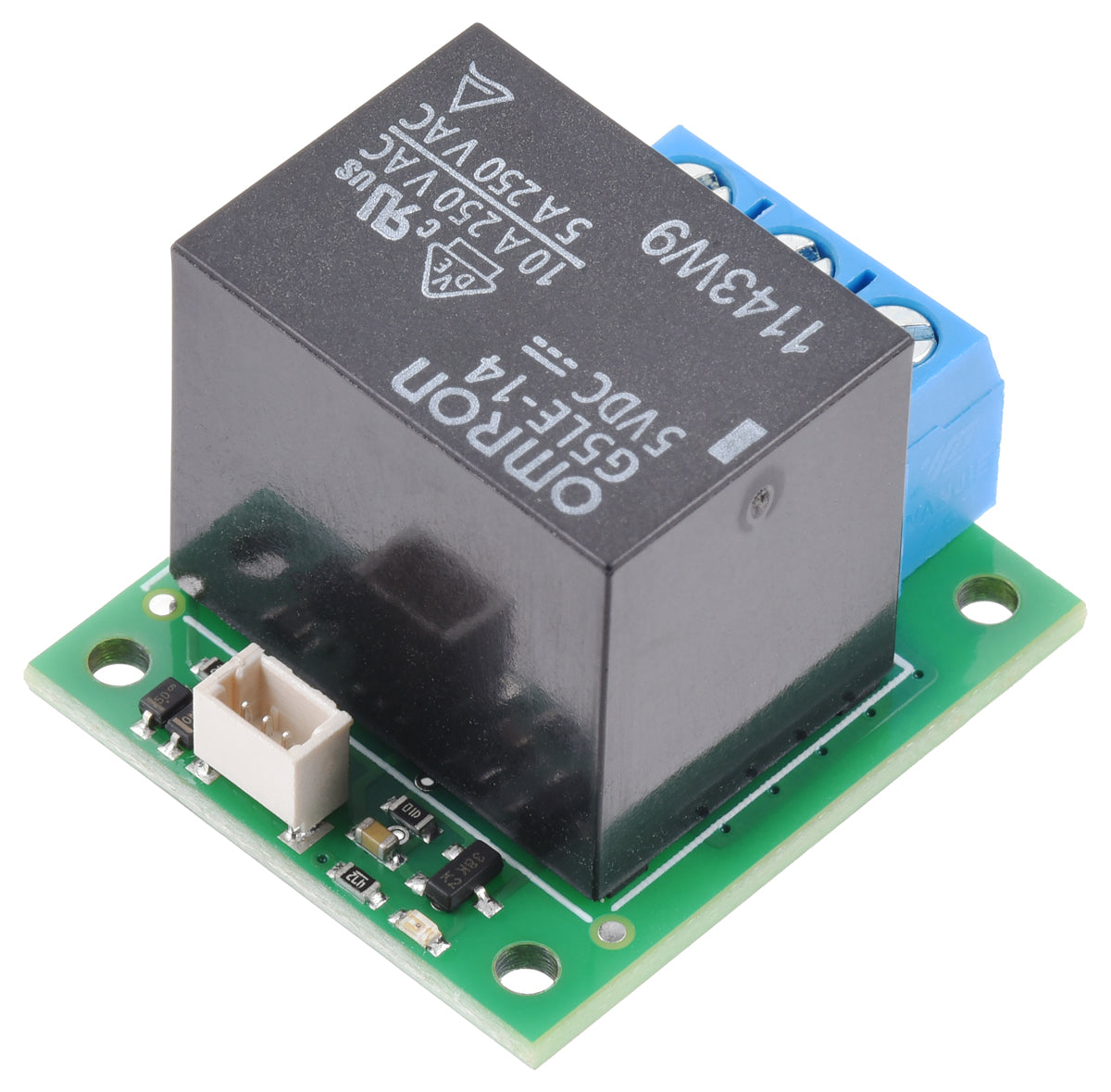

The Pololu Basic SPDT relay module enables the simple control of a single-pole double-throw (SPDT) switch via low control voltages and currents. It is ideally suited for galvanic isolation and switching higher loads with microcontrollers or other logic signals.
The module is equipped with a 5V power relay (Omron G5LE-14-DC5) and features 5 mm screw terminals for the switching contacts as well as a JST-SH top-entry connector for the control signals. The relay is rated for currents up to 10 A under most conditions.
Technical data:
- Relay type: SPDT (1× changeover contact)
- Control voltage: 5 V DC
- Maximum switching current: up to 10 A
- Switch connections: Screw terminals (5 mm pitch)
- Control connector: JST SH-Style, Top-Entry (3-pin)
