Description

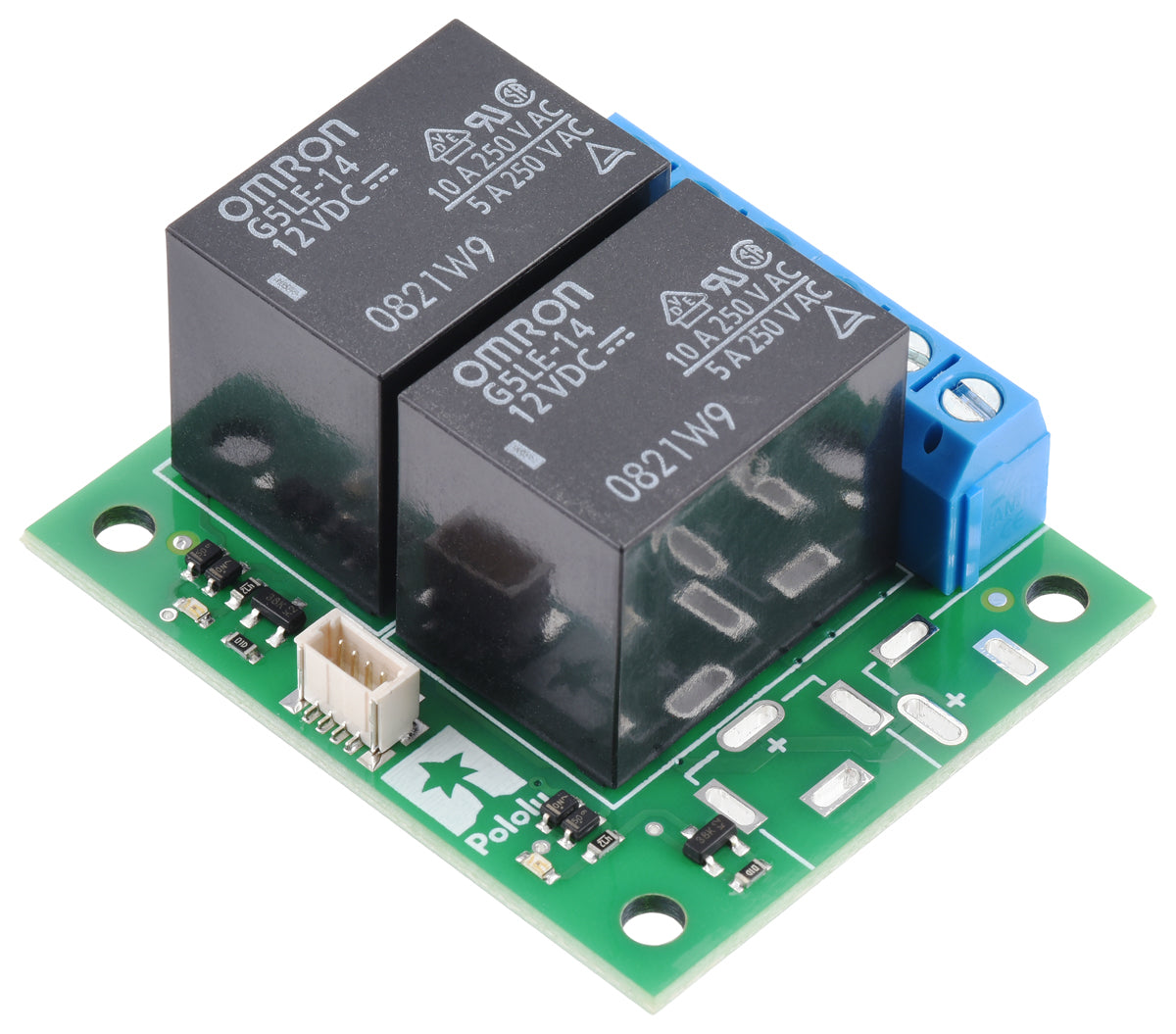

The Pololu Basic 2-channel SPDT relay module enables the independent control of two single-pole double-throw (SPDT) switches via low control voltages and currents. It is ideally suited for the safe switching of higher loads with microcontrollers or logic signals.
The module is equipped with two 12V power relays (Omron G5LE-14-DC12) and features 5 mm screw terminals for the switching contacts as well as a JST-SH top-entry connector for the control signals. The relays are rated for currents up to 10 A under most conditions.
Technical data:
- Relay type: 2× SPDT (2× changeover contacts)
- Control voltage: 12 V DC
- Maximum switching current: up to 10 A per channel
- Switch connections: Screw terminals (5 mm pitch)
- Control connector: JST SH-Style, Top-Entry (4-pin)
