Pololu 9V Step-Up Voltage Regulator U3V16F9

PololuSKU: EXP-R25-1572

Price:
Sale price3,60 €

excl. VAT plus Versand

Stock:
In stock (44 units), ready to be shipped

Manufacturer article number: 4944
Customs tariff number: 85423990
Country of origin: US

✔ Fast dispatch within 24 hours
✔ Shipping from Germany
✔ Encrypted payment

Description

This compact switching step-up voltage regulator efficiently generates 9 V from input voltages as low as 1.3 V and handles continuous input currents up to around 1.6 A. (Note: minimum start-up voltage is 2.7 V, but it operates down to 1.3 V after that.) The pins have a 2.54mm spacing, making this board compatible with standard solderless breadboards and perfboards.

Features and specifications:
  • Output voltage: 9 V with 4% accuracy
  • Input voltage: 1.3 V to 16 V (Note: minimum start-up voltage is 2.7 V)
  • Typical efficiency of 85% to 95%, depending on input voltage, output voltage, and load
  • Switching frequency: ~1.2 MHz under heavy loads
  • Power-save mode that increases light load efficiency by reducing switching frequency
  • Typical no-load quiescent currents under 1 mA
  • 2 A switch current limit
  • Typical continuous input currents up to around 1.6 A
  • Tolerates input voltage above output set voltage
  • Integrated protections
  • Compact size: 13.1 × 8.1 × 3 mm
  • Weight: 0.4 g

Typical efficiency

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns.

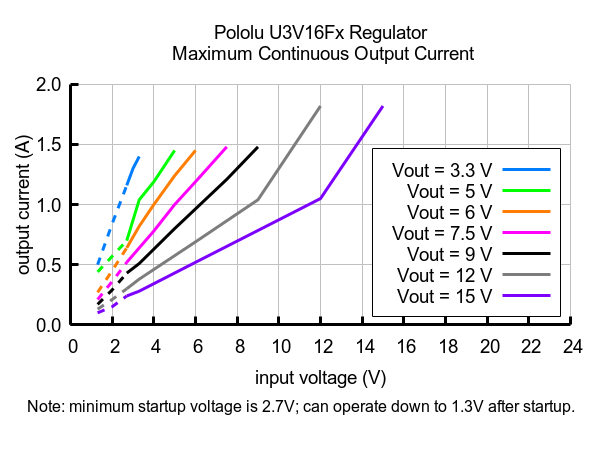

Maximum continuous output current

The maximum achievable output current is approximately proportional to the ratio of the input voltage to the output voltage. Additionally, the maximum output current can depend on other factors, including the ambient temperature and air flow. The graph below shows the typical maximum continuous output currents these regulators can deliver at room temperature with no forced airflow or heat sinking.




Quiescent current

The quiescent current is the current the regulator uses just to power itself, and the graph below shows this for the different regulator versions as a function of the input voltage.
