Description

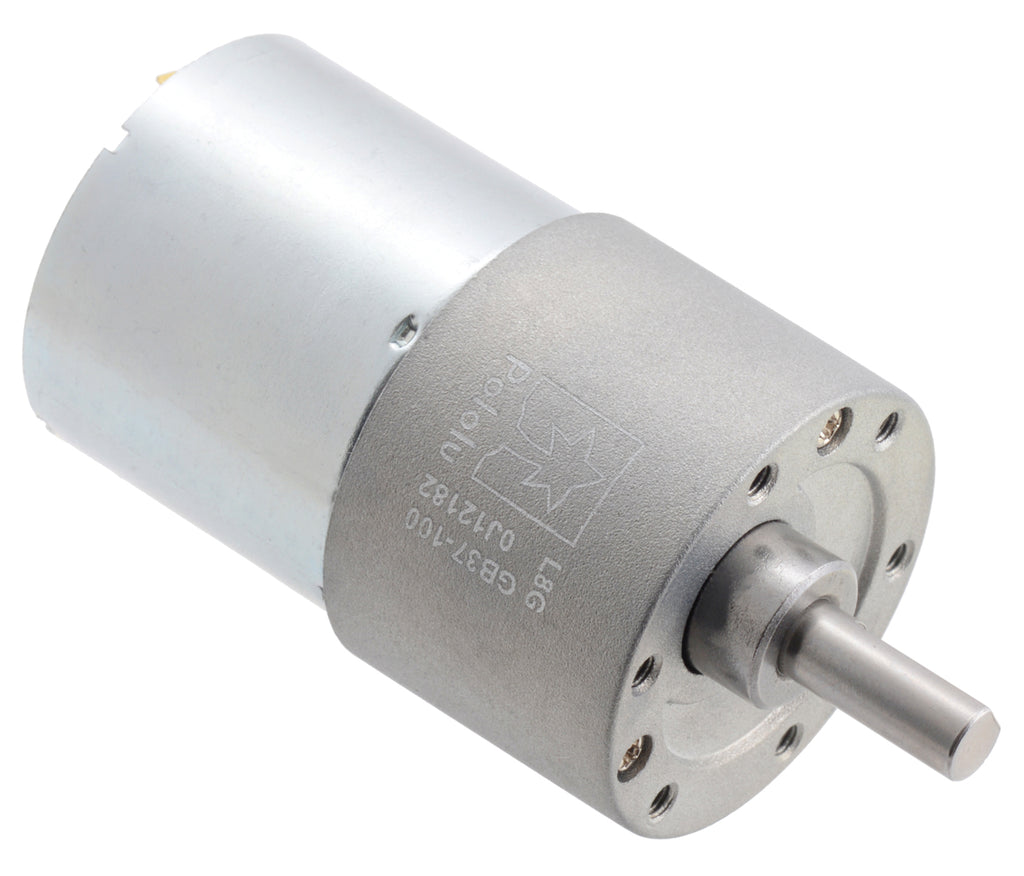

This geared motor is a powerful brushed DC motor with a metal gearbox and a gear ratio of 131.25:1, designed for 24V operation. The gearbox consists primarily of spur gears, but features helical gears in the first stage to reduce noise and improve efficiency. These units have a 16mm long, D-shaped output shaft with a diameter of 6mm.
Specifications:
- Size: 37D x 57L mm
- Weight 195 g
- Shaft diameter: 6 mm
- Translation ratio: 131.25:1
- Idle speed at 24 V: 79 rpm
- No-load current at 24 V: 0.1 A
- Stall current at 24 V: 3 A
- Locking torque at 24 V: 47 kg·cm
- Maximum output power at 24 V: 6 W
- Idle speed at 12 V: 39 rpm
- No-load current at 12 V: 0.08 A
- Stall current at 12 V: 1.7 A
- Locking torque at 12 V: 30 kg·cm
- Motor type: 24 V
- Maximum efficiency at 24 V: 46%
- Speed at maximum efficiency: 68 rpm
- Torque at maximum efficiency: 6.3 kg·cm
- Current at maximum efficiency: 0.40 A
- Output power at maximum efficiency: 4.4 W
- Encoder?: No
