Description

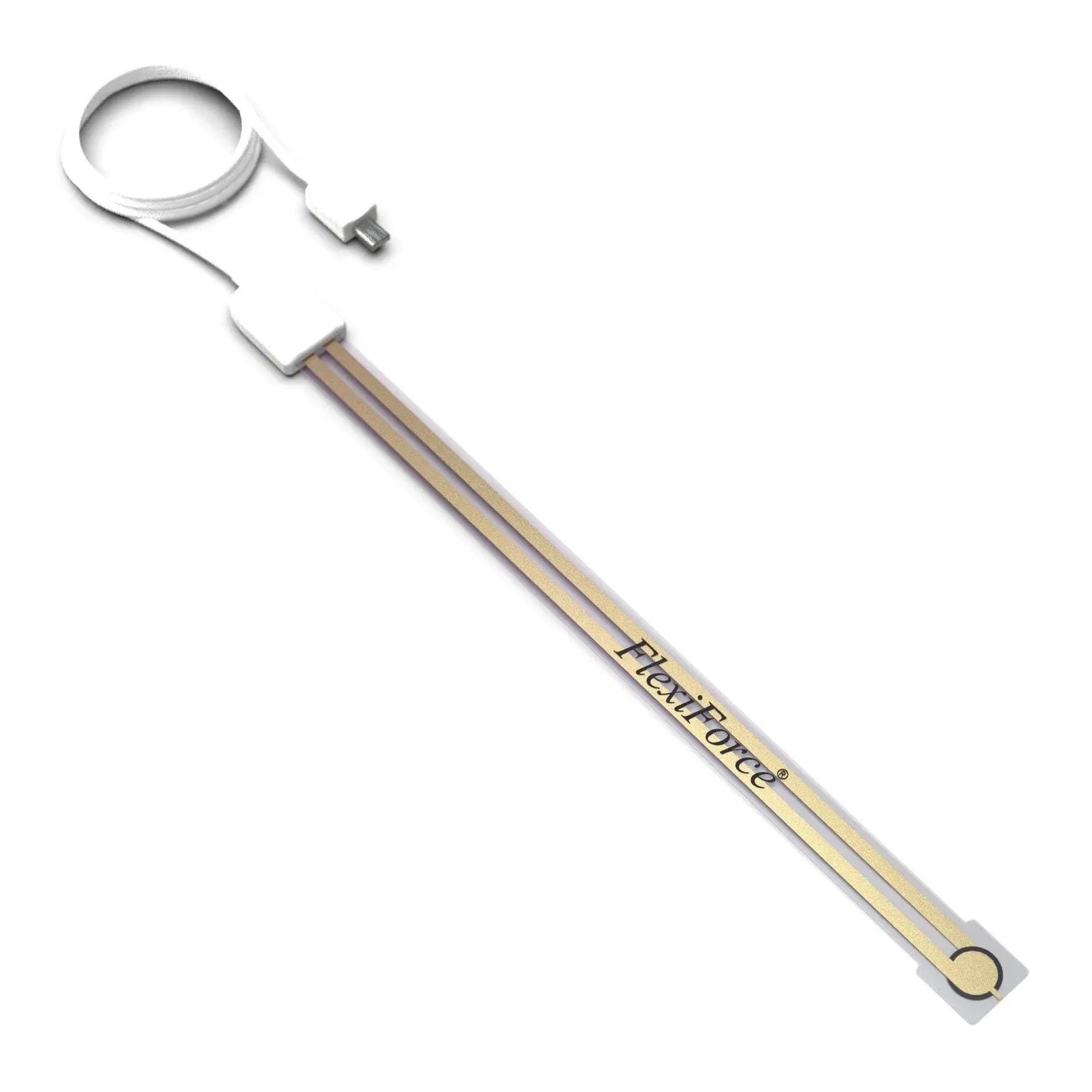

biosignalsplux force sensors are based on the proven FlexiForce™ (TekScan, Inc.) and Force Sensing Resistor® (Interlink Electronics, Inc.) force sensors, and have been specifically adapted for biomechanics, ergonomics, and sports research to measure force impulses.
The lightweight designs of these sensors are available in 7 different sizes, lengths, and shapes, as well as with varying force ranges, offering suitable options for localized monitoring of force impulses with uncompromised performance. These characteristics enable unobtrusive measurement even in the most demanding applications, for instance where space is limited.
Features:
- 3.8 cm x 4.0 cm dimensions
- Thin-film design
- Force impulse measurement
- Diverse and customizable measurement ranges
- Pre-conditioned analog output
- Force and pressure impulse measurements
- Ready-to-use and miniature design
Specifications:
- Response time: <1.2 ms
- Measurement range: Up to 100 kg
- Repeatability: ±2.5% (of full scale)
- Drift: <7%
- Cable length: 100 cm ±0.5 cm
- Connector type: UC-E6 (male; must be connected to a biosignalplux acquisition unit)
- Compatibility:
This sensor is compatible with both BITalino and biosignalplux systems
