Description

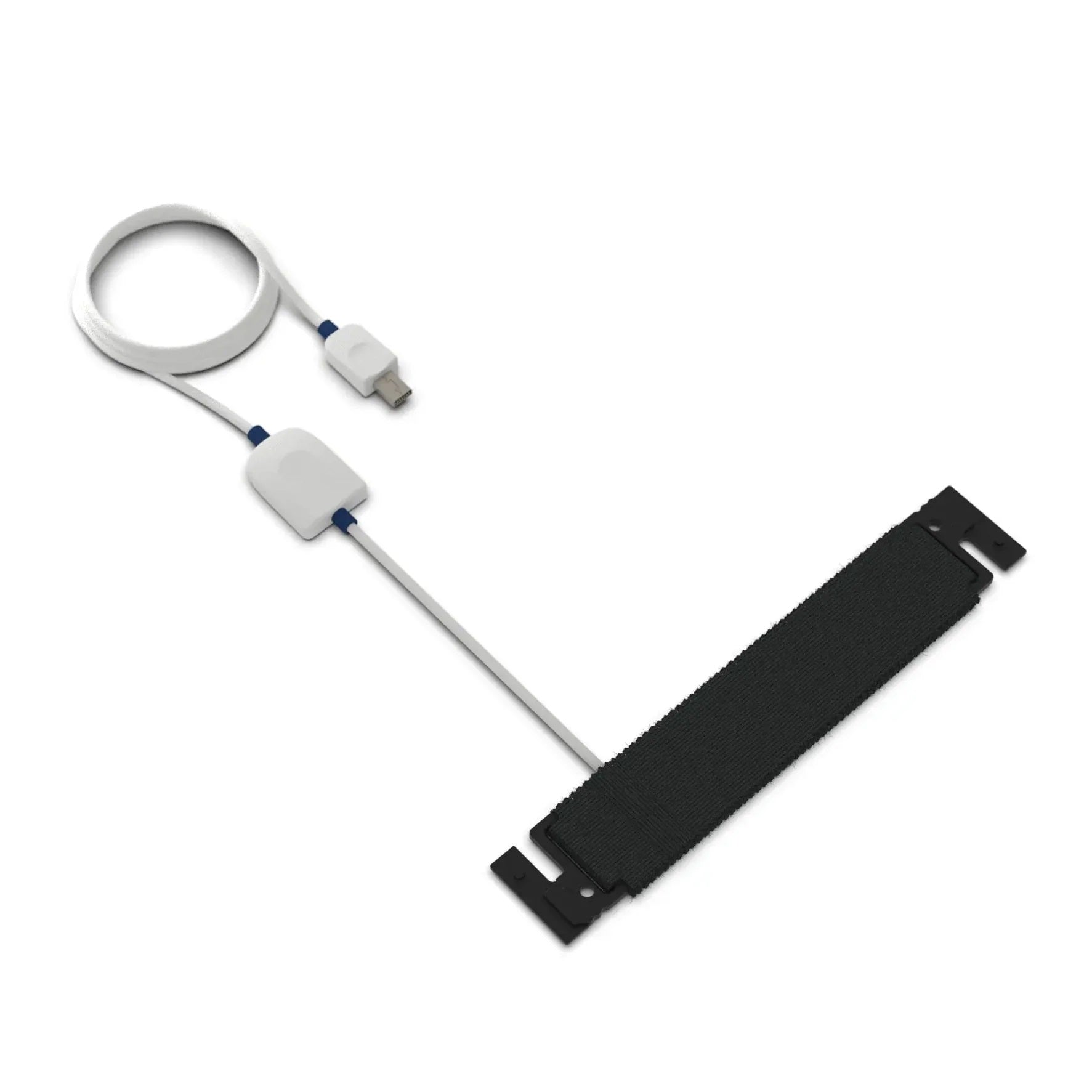

The biosignalsplux Piezoelectric Respiration Sensor (PZT) is an affordable entry-level solution for acquiring basic respiration data. This sensor consists of a wearable chest strap with an integrated, localized sensing element that measures displacement variations caused by the volume changes of the thorax or abdomen during breathing cycles (inhalation/exhalation).
The elastic chest strap can be adjusted in length to suit different anatomies (e.g. male and/or female), body locations (e.g. thorax and/or abdomen), and thorax/abdomen circumferences. Typical applications of this sensor include respiration monitoring for the determination of breathing cycles, rates, relative amplitudes, and other characteristics.
Features:
- Piezoelectric film technology
- Displacement measurement
- Raw data output
- Adjustable elastic chest strap
- Pre-conditioned analog output
- Ready-to-use & miniaturized form
Specifications:
- Type: Piezoelectric
- Range: ±1.50 V
- Gain: 1
- Consumption: 35 uA
- CMMR: ≥ 106 dB
- Cable Length: 100cm±0.5cm
- Connector Type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
- Maximum sensor band length: 70cm (band) + 14cm (sensor), 84cm total
- Minimum sensor band length: 38cm (band) + 14cm (sensor), 52cm total
