Description

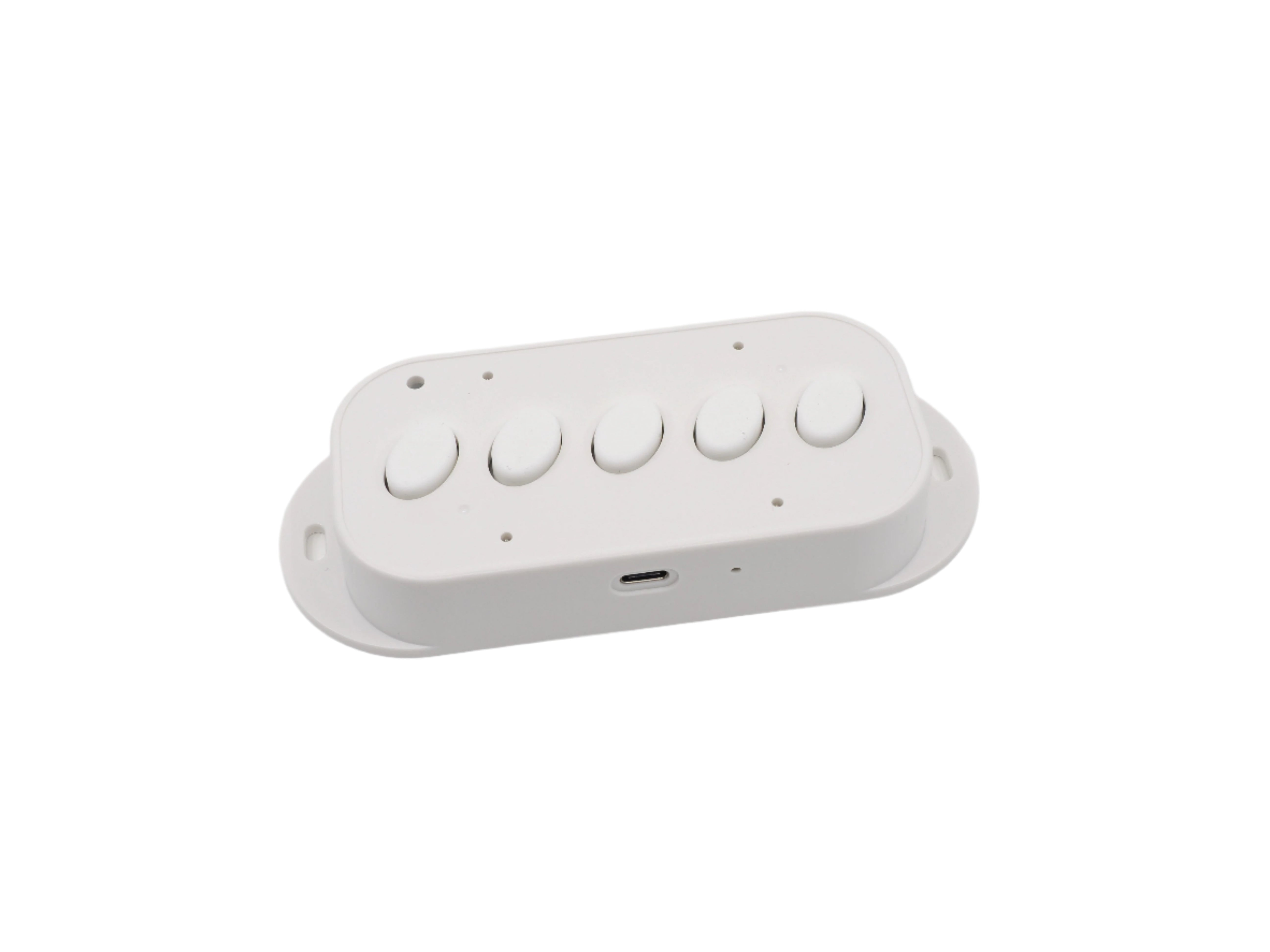

The Dragino PB05-L is a compact, wall-mountable LoRaWAN push-button panel with five programmable buttons. Each button press sends a signal to an IoT server via the LoRaWAN v1.0.3 Class A protocol.
The included PVC panel contains pre-designed icons, but can easily be replaced with custom designs. The PB05-L is powered by 2x AA batteries (not included) and allows for a total of up to 30,000 keystrokes. Replacing the batteries is easy.
An integrated speaker provides optional audible feedback when pressed or upon receiving a server response. The EU868 version supports remote configuration via downlink and firmware updates via the programming port.
Main features:
- EU868 frequency band
- 5x programmable buttons
- Replaceable PVC panel with symbols
- Integrated speaker with optional sound
- LoRaWAN v1.0.3 Class A compatible
- Remote configuration & firmware update possible
- Wall-mountable IP52 housing
- Powered by 2x AA batteries (not included), up to 30,000 keystrokes
