Description

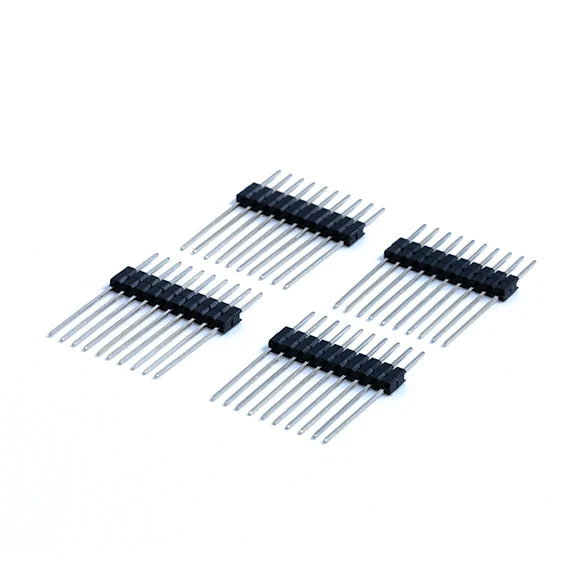

The long pin headers (19+2+4 mm) expand the Crazyflie 2.x deck system to three expansion decks at the same time. They are optimized for the configuration with two decks on top and one deck on the bottom of the Crazyflie, for example Lighthouse Positioning Deck and Motion Capture Marker Deck on top as well as Qi Charging Deck on the bottom. Also ideal in combination with the Color LED Deck.
The pin headers included in the delivery of the Crazyflie are designed for a maximum of two decks. Two pin headers are required per Crazyflie, so one pack is sufficient for two Crazyflies.
Technical data:
- Number of contacts: 10
- Pitch: 2 mm
- Pin thickness: 0.5 mm
- Construction: Pin 19 mm, plastic 2 mm, pin 4 mm
- Weight: 0.6 g
- Dimensions (W x H x D): 25 x 20 x 2 mm
Scope of delivery:
- 4 x Long Pins (19+2+4 mm)
