Description

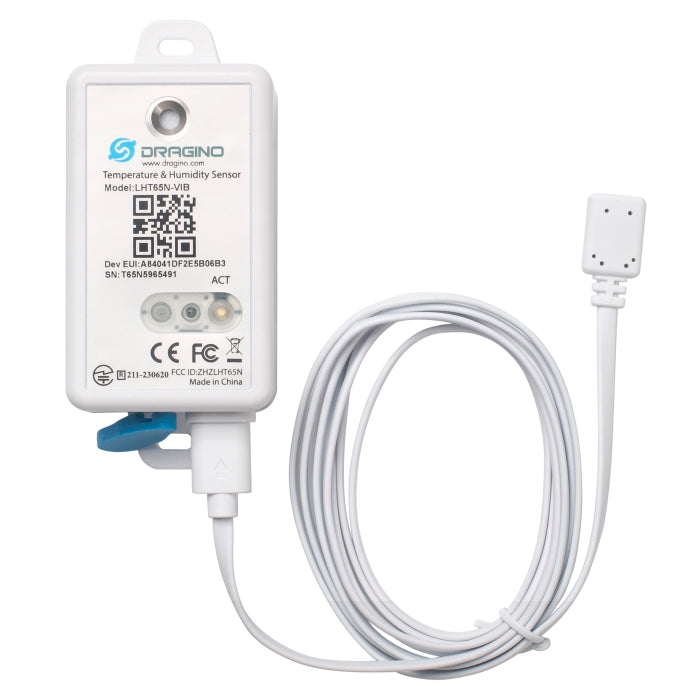

The Dragino LHT65N-VIB-EU868 is a LoRaWAN-based sensor for simultaneous acquisition of indoor climate and a second, application-specific measured variable. It combines an integrated temperature and humidity sensor with a vibration sensor and efficiently transmits both measured values via LoRaWAN to the IoT platform.
This variant is suitable for applications where, in addition to ambient temperature and humidity, the mechanical condition of a machine or system is to be recorded. Typical applications include predictive maintenance on pumps, motors, and compressors, vibration monitoring on conveyor and ventilation systems, or the early detection of bearing wear and imbalances.
The integrated datalog function ensures that no measurement data is lost even during temporary connection failures. Buffered values are automatically retransmitted once the connection is restored.
Features:
- LoRaWAN v1.0.3 Class A, frequency band EU868
- Integrated temperature and humidity sensor
- Integrated vibration sensor with event uplink
- Datalog function with automatic retransmission
- Parameterization via AT commands and LoRaWAN downlink
- Firmware update via programming interface
- Status LED for diagnosis
- Wall mounting
- Multi-year battery life (depending on transmission interval)
Internal Temperature Sensor:
- Resolution: 0.01 °C
- Accuracy: typ. ±0.3 °C
- Measurement range: −40 to 80 °C
Internal Humidity Sensor:
- Resolution: 0.04 %RH
- Accuracy: typ. ±3 %RH
- Measurement range: 0 to 96 %RH
Vibration sensor:
- Detection principle: 3-axis accelerometer
- Uplink trigger: upon detected vibration (event trigger) and periodically
- Configurable threshold via downlink
Areas of application:
- Predictive maintenance on pumps, motors, and compressors
- Condition monitoring of conveyor and ventilation systems
- Early detection of bearing wear and imbalances
- Vibration monitoring on sensitive equipment and control cabinets
