Description

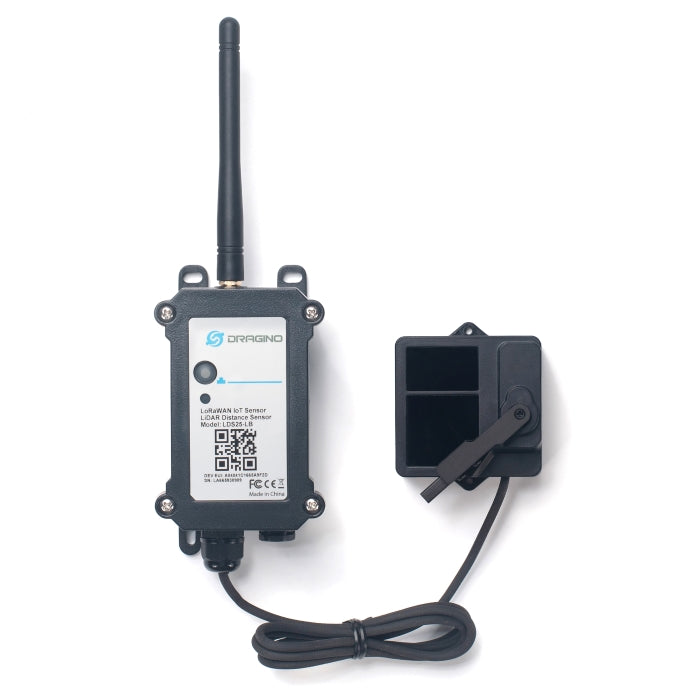

The Dragino LDS25-LB-EU868 is a battery-powered LiDAR ToF distance measurement system with automatic cleaning. It accurately measures distances from 0.1 m to 25 m and is ideal for industrial applications, material monitoring, and object and level detection. The integrated cleaning brush keeps the sensor optics dust-free for long-term stable measurements. Data transmission is power-efficient via LoRaWAN, and configuration and firmware updates are possible via Bluetooth.
Specifications:
- LoRaWAN 1.0.3 Class A
- Frequency band: EU868
- Measuring range: 0.1 m to 25 m
- Accuracy: ±6 cm (0.1–6 m), ±1% (6–25 m)
- Resolution: 1 cm
- Auto-Clean function with configurable brush
- FOV: 3°, IP5X
- Ambient Light Immunity: up to 100 kLux
- Bluetooth 5.1 for configuration and OTA updates
- Power supply: 8500mAh Li/SOCI2 battery
