Description

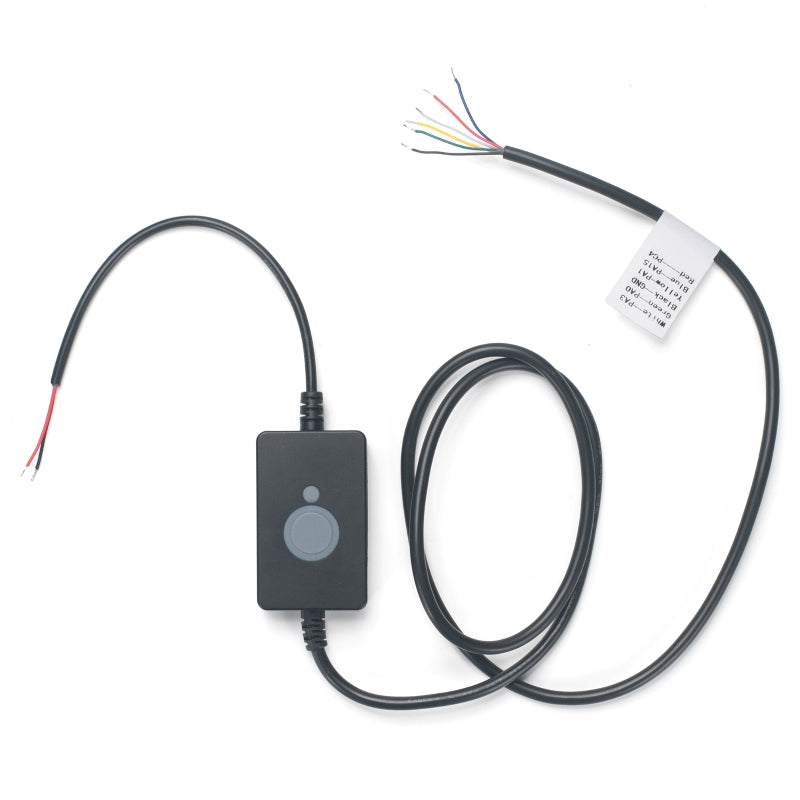

The LC04 is a LoRaWAN Class C control cable for switching up to four low-voltage channels. The module is powered by 8 to 28 V and passes this voltage on to the connected devices via four outputs. Switching is done via LoRaWAN downlink, allowing external low-voltage devices such as RGB signal towers to be controlled directly from the radio network without local control wiring.
Key features:
- LoRaWAN v1.0.3 Class C: continuous reception of downlinks, switching commands take effect immediately
- Four switchable outputs for low-voltage consumers
- Output voltage corresponds to input voltage (8 to 28 V), max. 200 mA per channel
- Control via downlink and timed switching
- Parameterization via AT command, log function and key reset
Specifications:
- LoRaWAN: v1.0.3 Class C
- Frequency band: EU868
- Supply and input voltage: 8 to 28 V
- Outputs: 4 channels, output voltage equal to input voltage
- Max. output current: 200 mA per channel
- Control: Downlink and time control
- Parameterization: AT commands
- Functions: Log function, key reset
Areas of application:
- Control of RGB signal towers and status lights
- Switching of low-voltage consumers in machines and systems
- Remote control of actuators without local control wiring
- Time-controlled switching tasks, e.g. lighting or signaling
