Description

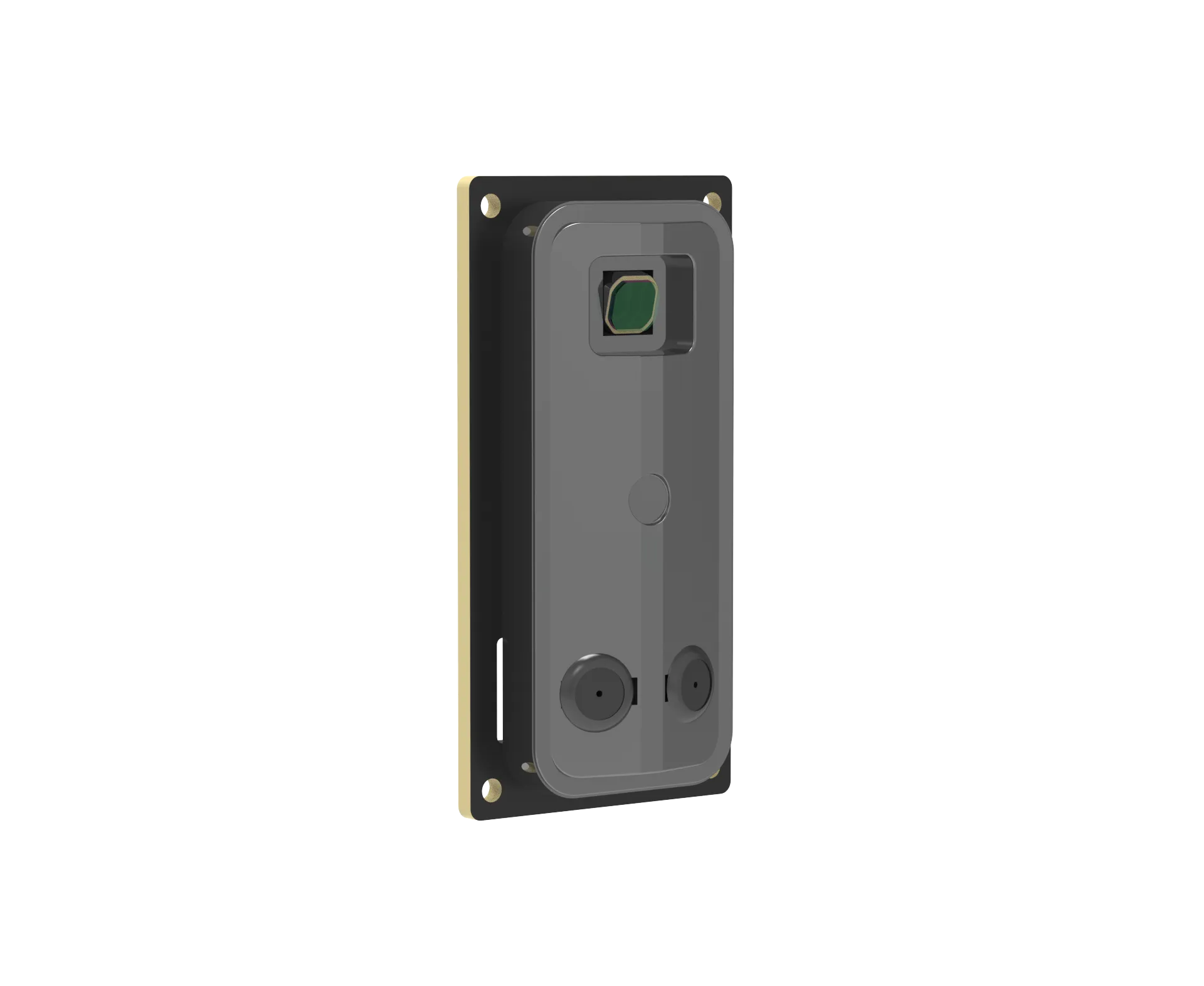

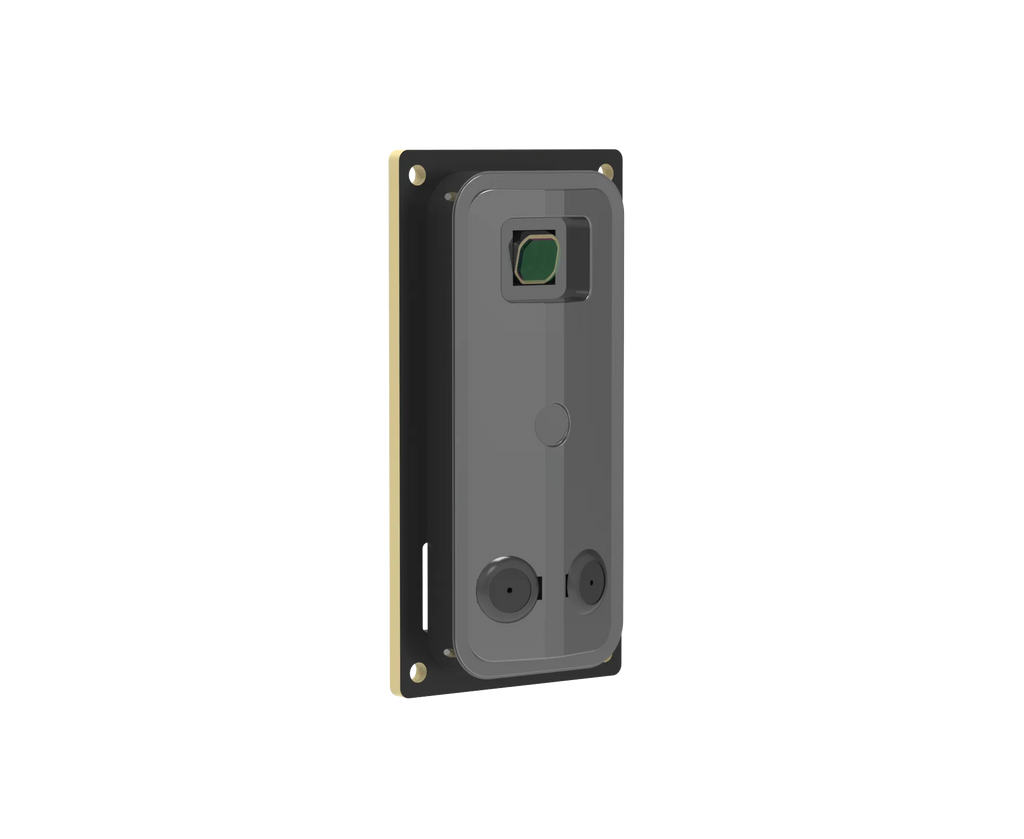

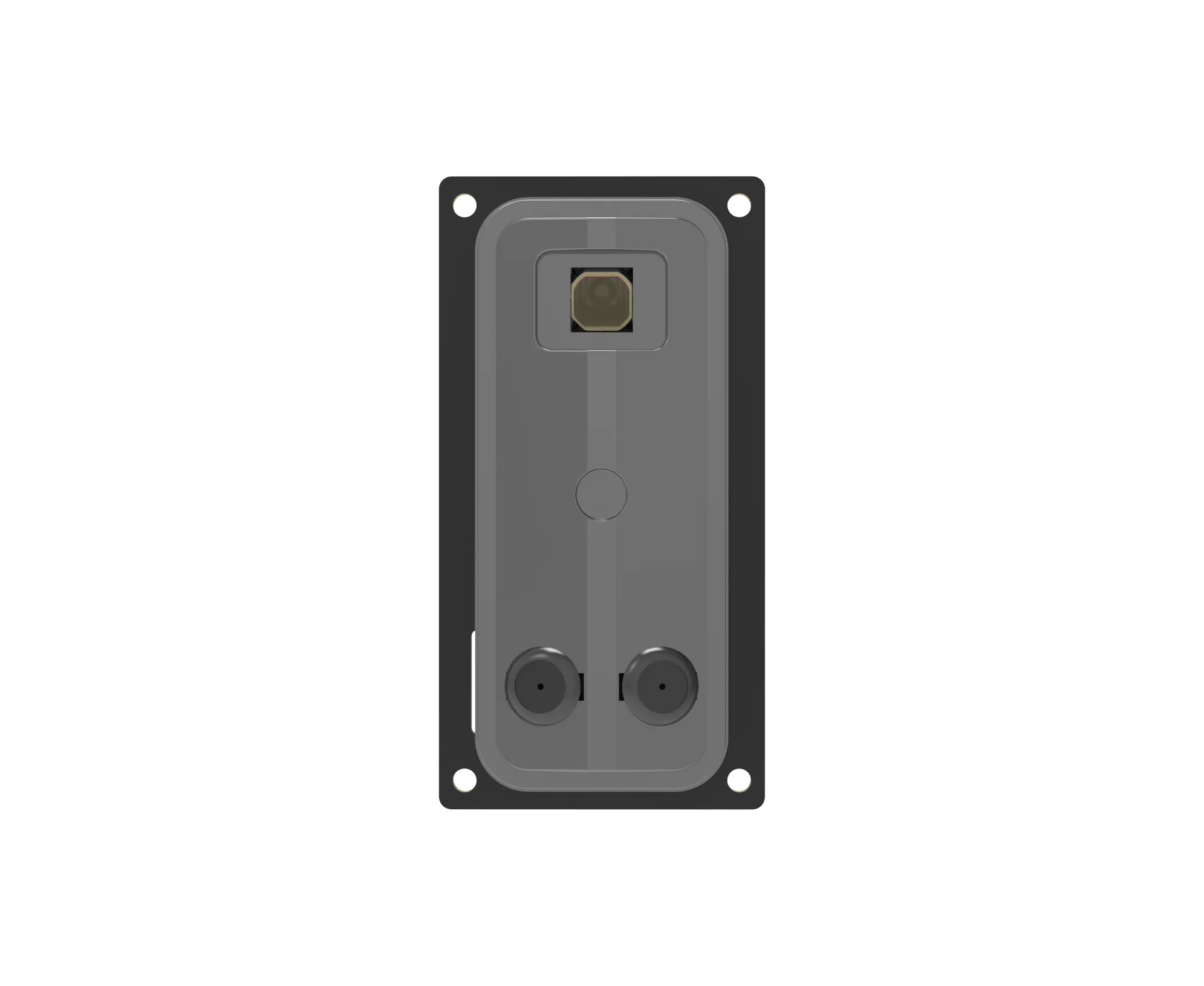

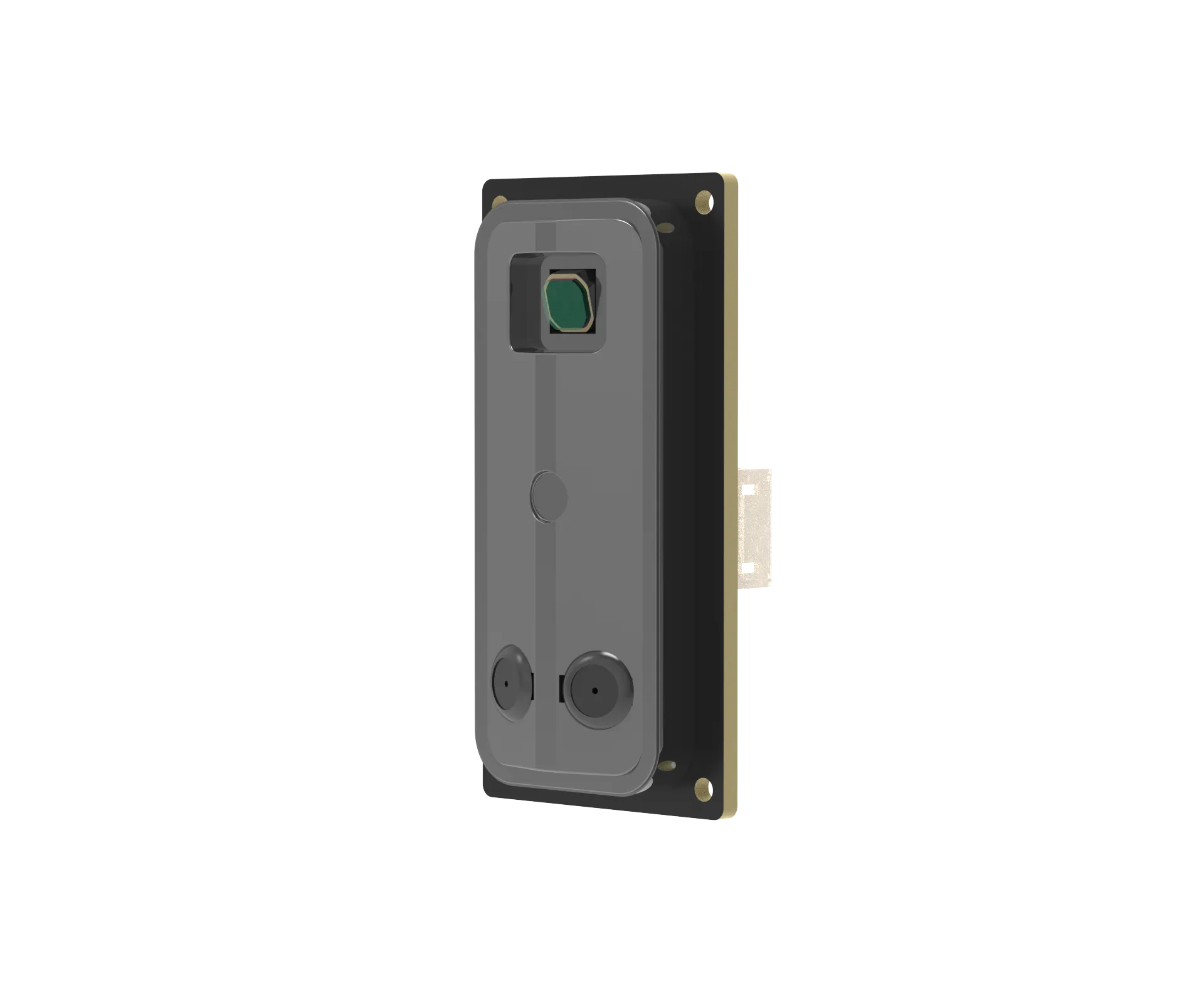

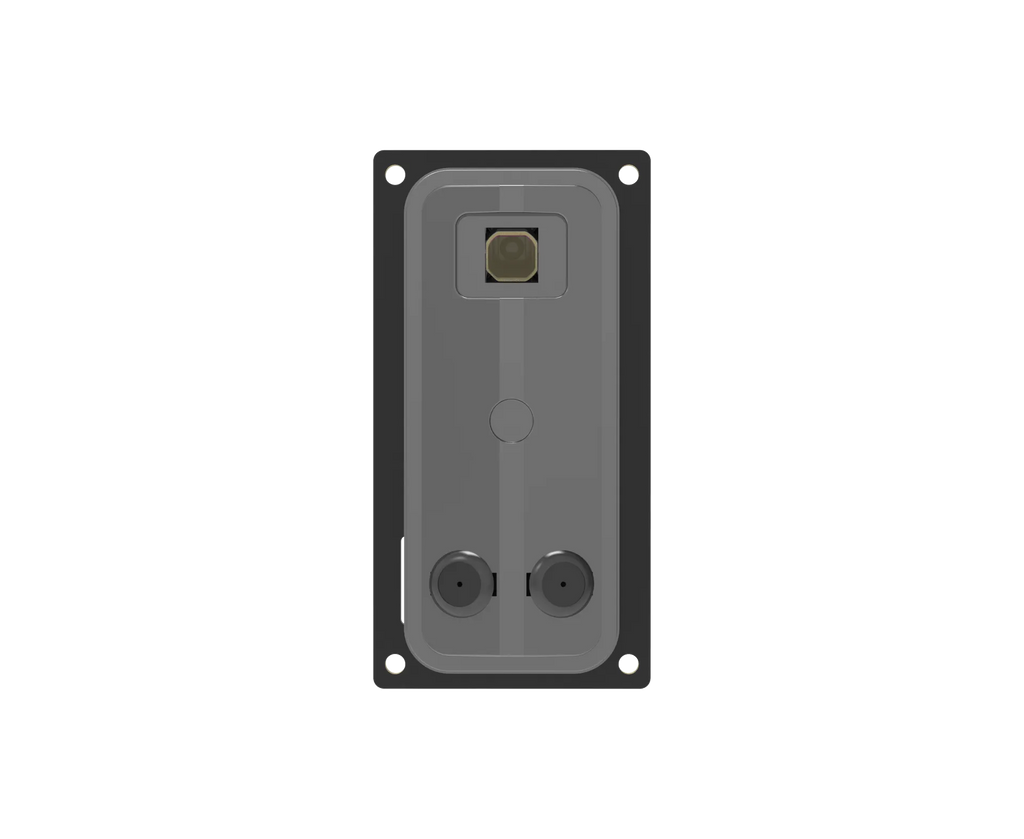

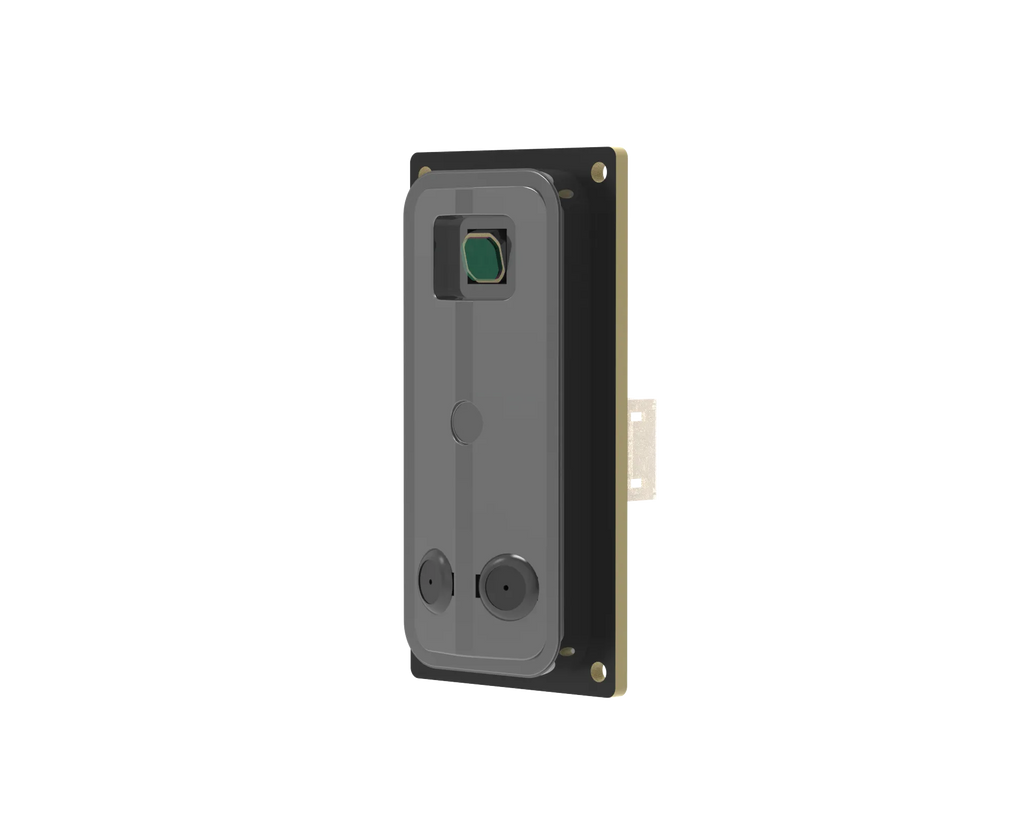

The YDLIDAR GS5 is a compact linear LiDAR sensor with fixed optics. Based on the triangulation principle, the GS5 captures an 80° field of view with high angular resolution and delivers precise point clouds for environment detection. Thanks to its robust design with no moving parts, the GS5 is ideal for obstacle avoidance and path planning in mobile robots and smart devices.
Product features:
- High measurement accuracy and stable performance
- Angular resolution up to 0.54°
- Detection of the smallest objects from 6 mm diameter
- No blind spot in combined use, field of view ≥ 80°
- Detection range: 70 mm to 1000 mm
- Lifespan over 10,000 hours
Typical areas of application:
- Obstacle avoidance in robots
- Smart devices and household robotics
- Navigation and safety for service and vacuum robots
Scope of delivery:
- GS5 Sensor
- USB-C cable
- USB adapter board
