Description

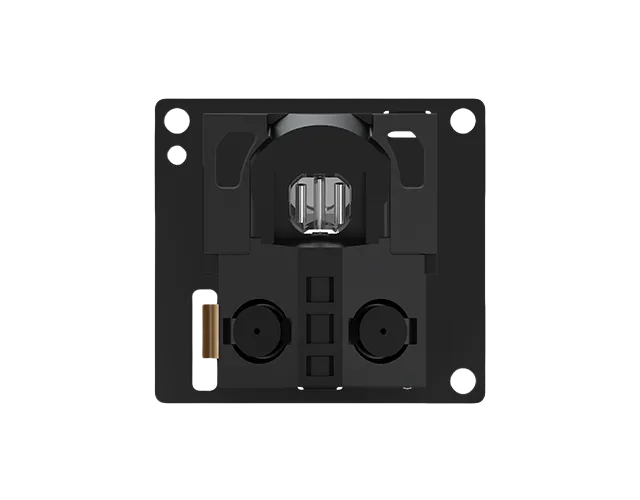

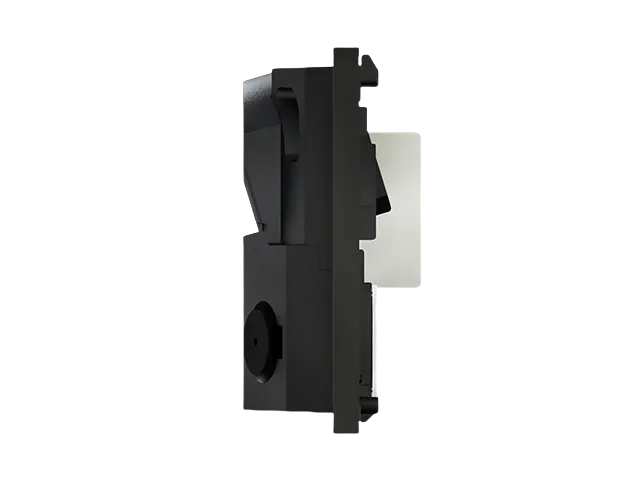

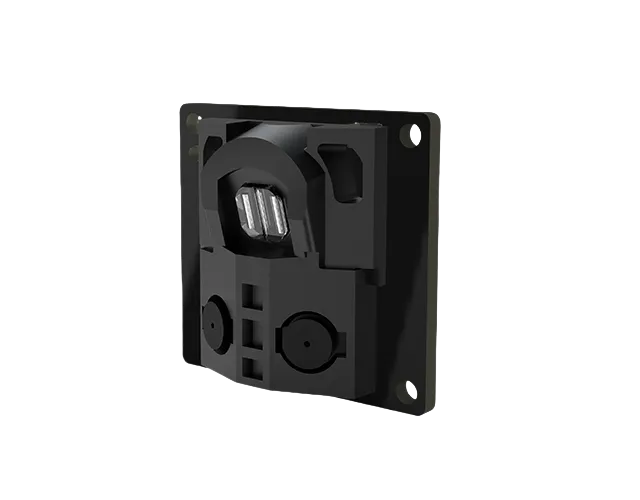

The YDLIDAR GS2-T850 is a compact, fixed-mount, side-entry linear LiDAR with an 808 nm wavelength. Based on triangulation technology, it combines optical precision with robust electronics for reliable close-range distance measurement. Ideal for robotics and automation applications with limited space.
Product features:
- 808 nm infrared laser (Class I, eye safe)
- Field of view: 60° horizontal
- Detection range: 50 mm - 1000 mm
- High angular resolution and accuracy
- Top-mounted connection for compact integration
- Lifespan over 10,000 hours
Typical applications:
- Obstacle avoidance in robots
- Smart devices and household robotics
- Near-field detection in automation systems
Scope of delivery:
- GS2 LiDAR (GS2-S808)
- USB-C cable
- USB adapter board
Documents:
