Description

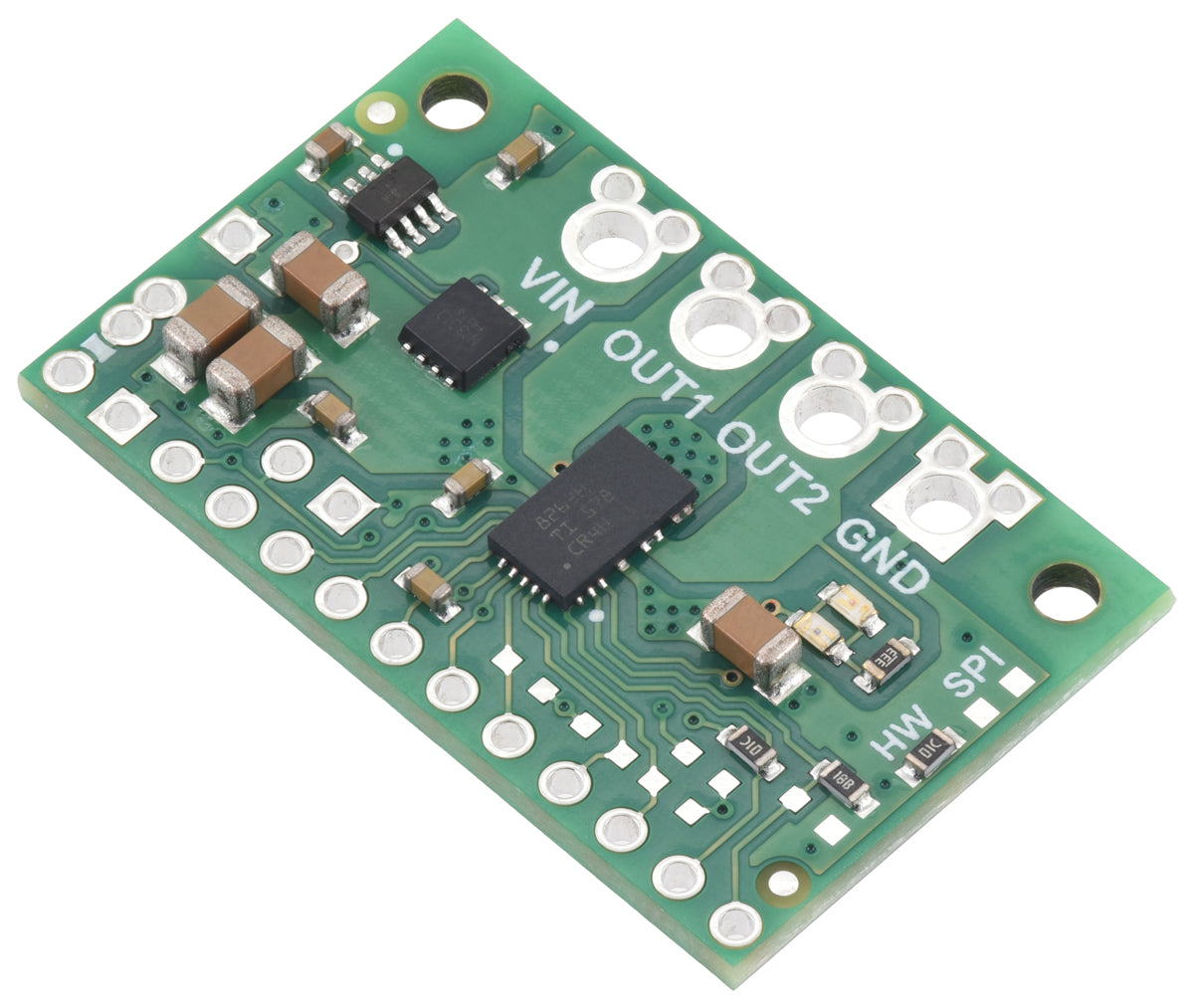

This breakout board for the TI DRV8263H motor driver supports a wide operating voltage range of 4.5 V to 65 V and delivers up to 3.5 A continuous current for a bidirectional DC motor. The driver features integrated current sensing and active current regulation with a standard peak current limit of approximately 10 A. It also includes protection against undervoltage, overcurrent, and overheating. The breakout board also provides reverse polarity protection.
Characteristics:
- Control of one bidirectional DC motor or two unidirectional DC motors
- Motor voltage: 4.5 V - 65 V
- Output current: up to approx. 3.5 A continuously (10 A peak current limit)
- Supports 3V to 5V logic levels (max. 5.5V)
- Integrated current measurement and adjustable current limiting
- Three control modes:
- Phase/Enable (PH/EH)
- PWM (IN/IN)
- Independent half-bridge control
- Diagnostic functions in the switched-off state (detection of open/short-circuited loads)
- Protection against undervoltage, overcurrent and overheating
- Reverse polarity protection on the carrier board
- Dimensions: 20.3 × 33 mm
- Two mounting holes for #2 or M2 screws
