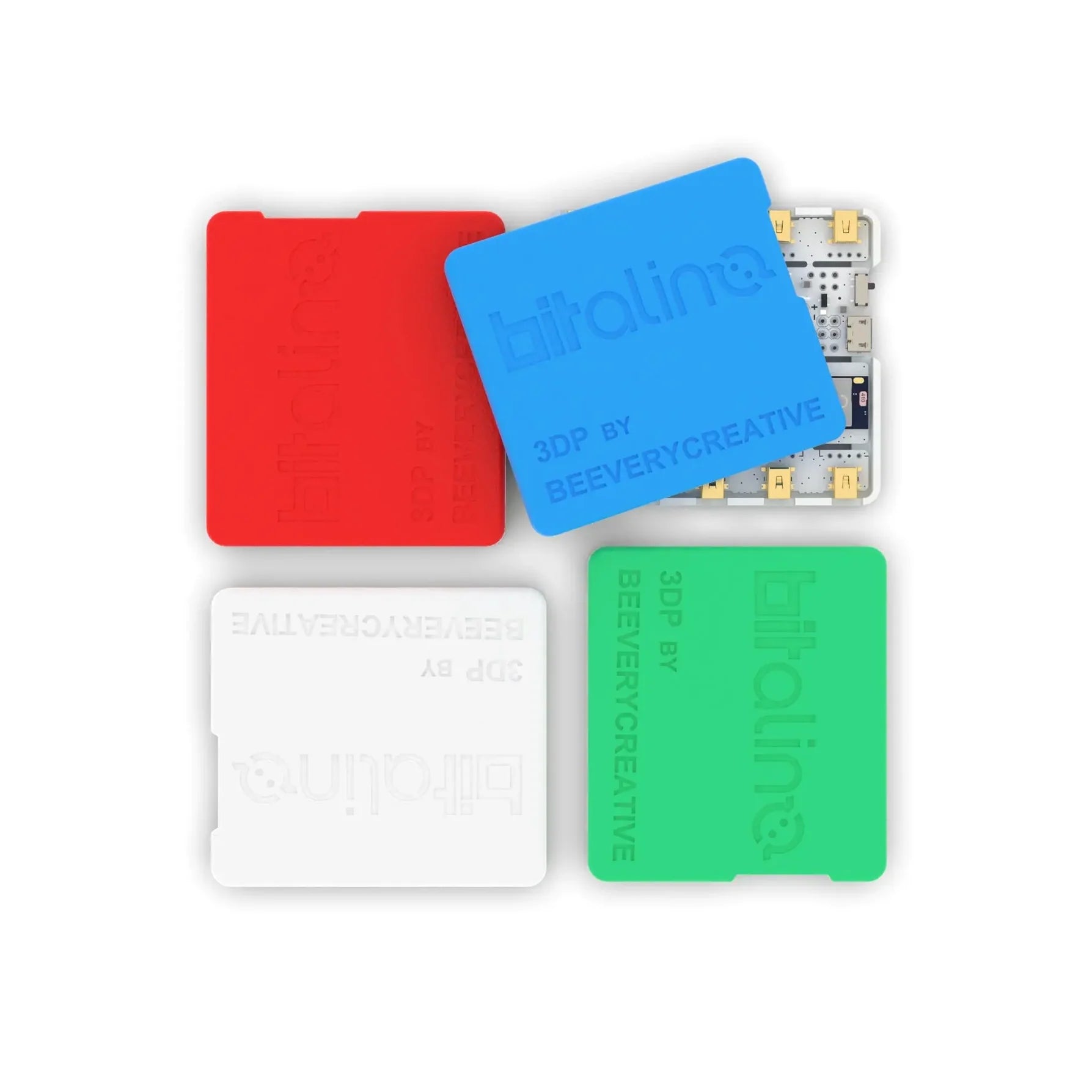

BITalino LabBIT Biosignals

LabBIT Biosignals is an option specifically designed for combining teaching and research, leveraging the benefits of both areas.

This package is suitable for various topics in biosignal education, including heart rate variability, muscle activity, fundamentals of electroencephalography, and psychophysiology, covering different sensors and actuators.

The various application kits can be used either as collaborative workstations in the lab or as individual academic research toolkits.

When purchasing this educational package (including the four application kits) for exploring different biosignals, we offer the software add-ons for post-processing the signals.

Scope of delivery:

• Included Application Kits
  • MuscleBIT BT/BLE for capturing electromyography data (EMG)

  • HeartBIT BT/BLE for capturing electrocardiography data (ECG) and photoplethysmography data (PPG)

  • NeuroBIT BT/BLE for capturing basic electroencephalography data (EEG)

  • PsychoBIT BT/BLE for capturing basic psychophysiological data
• Included Software:
  • Heart Rate Variability (HRV) Analysis (available for HeartBIT)

  • Electromyography (EMG) Analysis (available for MuscleBIT)

  • Electrodermal Activity (EDA/GSR) (available for PsychoBIT)

  • Respiratory Rate Analysis (available for PsychoBIT)
• Sensors that can be added to this kit:
  • High-resolution temperature sensor (NTC);

  • Pre-assembled electrooculography sensor (EOG);

  • Pre-assembled electrogastrography sensor (EGG);

  • FlexiForce Sensor (FSR)

Specifications:

• Analog ports: 6 universal inputs

• Digital ports: 2 inputs (1 bit) + 2 outputs (1 bit)

• Resolution: 4 inputs (10 bit) + 2 inputs (6 bit)

• Sampling rate: 1, 10, 100 or 1000 Hz

• Battery life: >10 hours streaming

• Communication: Bluetooth Class II

• Range: Up to 10 m

• MCU: Atmel ATMega328p chipset

• Battery: Integrated 3.7 V Li-Po battery charger

• Dimensions: 65 x 5 mm

Documentation:

• MuscleBIT Datasheet

• HeartBIT Datasheet

• NeuroBIT Datasheet

• PsychoBIT Datasheet

• Sample Files

• OpenSignals (r)evolution (Windows, macOS, Linux)

PLUX APIs for (r)evolution:

• Python

• Android

• Unity

• Cordova

• API Repository
