Description

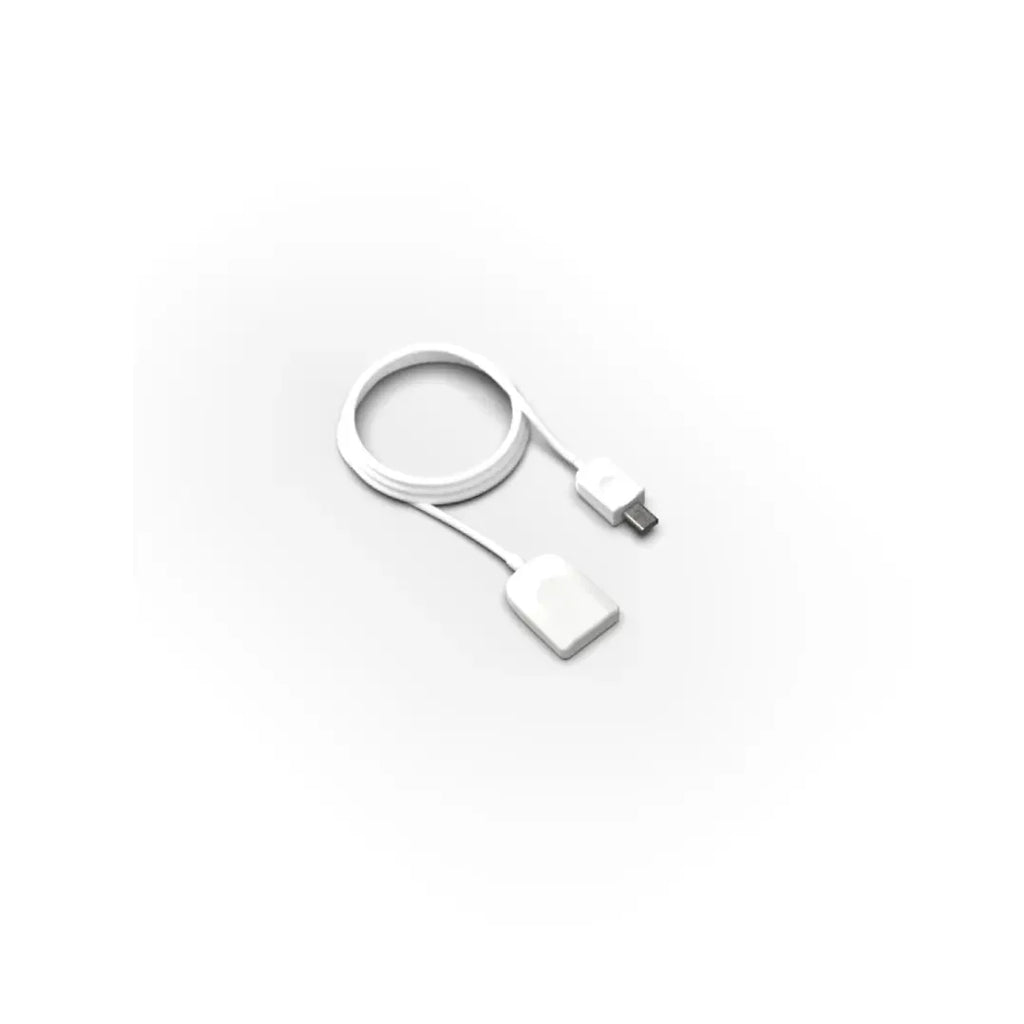

Light sensor for the visible range, useful for synchronization with visual stimuli and signals.
The biosignalsplux light sensor can be used for a wide variety of purposes, such as to capture physiological responses (e.g. heart rate) based on ambient light changes, or to measure visually evoked potentials.
Another common need when working with biosignals is the synchronization of the acquired data with external sources. When applied to a computer screen, for example, this sensor can detect color changes on the screen as a possible synchronization marker.
Features:
- Ambient light monitoring
- Visual stimuli tracking
- Visual synchronization marker
- Pre-conditioned analog output
- Raw data output
- Ready-to-use & miniaturized form-factor
Specifications:
- Wavelength range: 400–700nm (peak at 550nm)
- Current consumption: ~0.05mA
- Cable length: 100cm ±0.5cm
- Connector type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
- Compatibility:
This sensor is only compatible with the biosignalsplux acquisition system
Documents:
