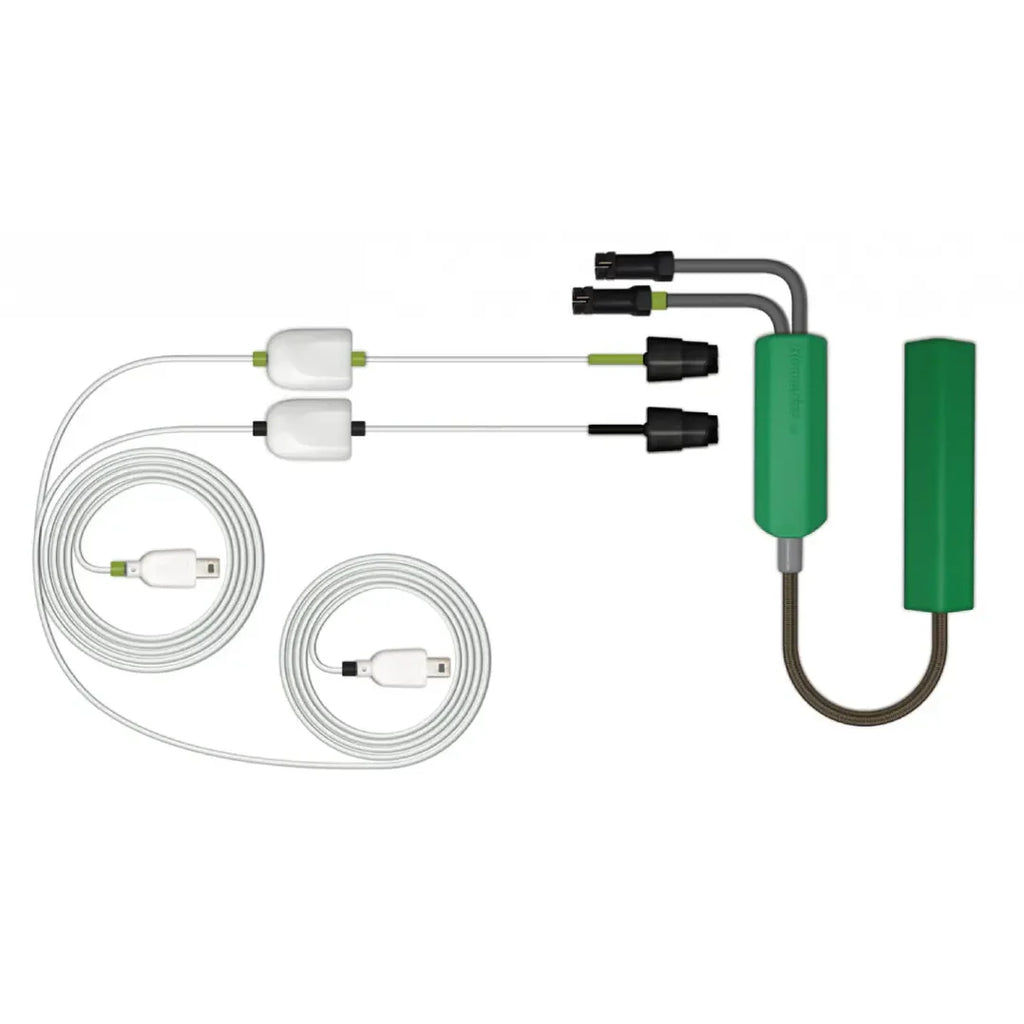

Biosignalsplux Goniometer (GON)

The Biosignalsplux Goniometer is based on the SG series of bi-axial goniometers (Biometrics, Ltd.) and is designed to seamlessly acquire angular data in conjunction with other biosignals.

Thanks to two attachment points on the body and a flexible carrier, it allows for uncompromising monitoring of flexion/extension and ulnar/radial deviation in single channels without restricting the movement of the monitored individuals. Various size options are available, allowing attachment to body parts from the finger (e.g., mid to toe joints) to the leg (e.g., lower part of the thigh – upper part of the shin).

Goniometers are commonly used in motion capture applications in biomechanics, rehabilitation, ergonomics, and sports research. Contact our support and sales representatives to choose the most suitable force sensor for your applications.

Features:

• Bi-axial sensor

• Strain gauge technology

• Flexible carrier (freedom of movement)

• Pre-conditioned analog output

• Raw signal output

• Ready-to-use & miniaturized design

Specifications:

• Axes: 2

• Channels: 2 (1 Flexion/Extension; 1 Ulnar/Radial)

• Lifespan: 600,000 cycles

• Measurement Range: ±150º

• Accuracy: ±2º (within stated measurement range)

• Repeatability: ±1º

• Cable Length: 100cm ± 0.5cm

• Connector Type: UC-E6 (male; must connect to a biosignalsplux acquisition station)

• Compatibility:
  This sensor requires a biosignalsplux data acquisition system to function, which is sold separately.

Documentation:

• Goniometer Sensor (GON) Datasheet

• Sample signals (.ZIP)
