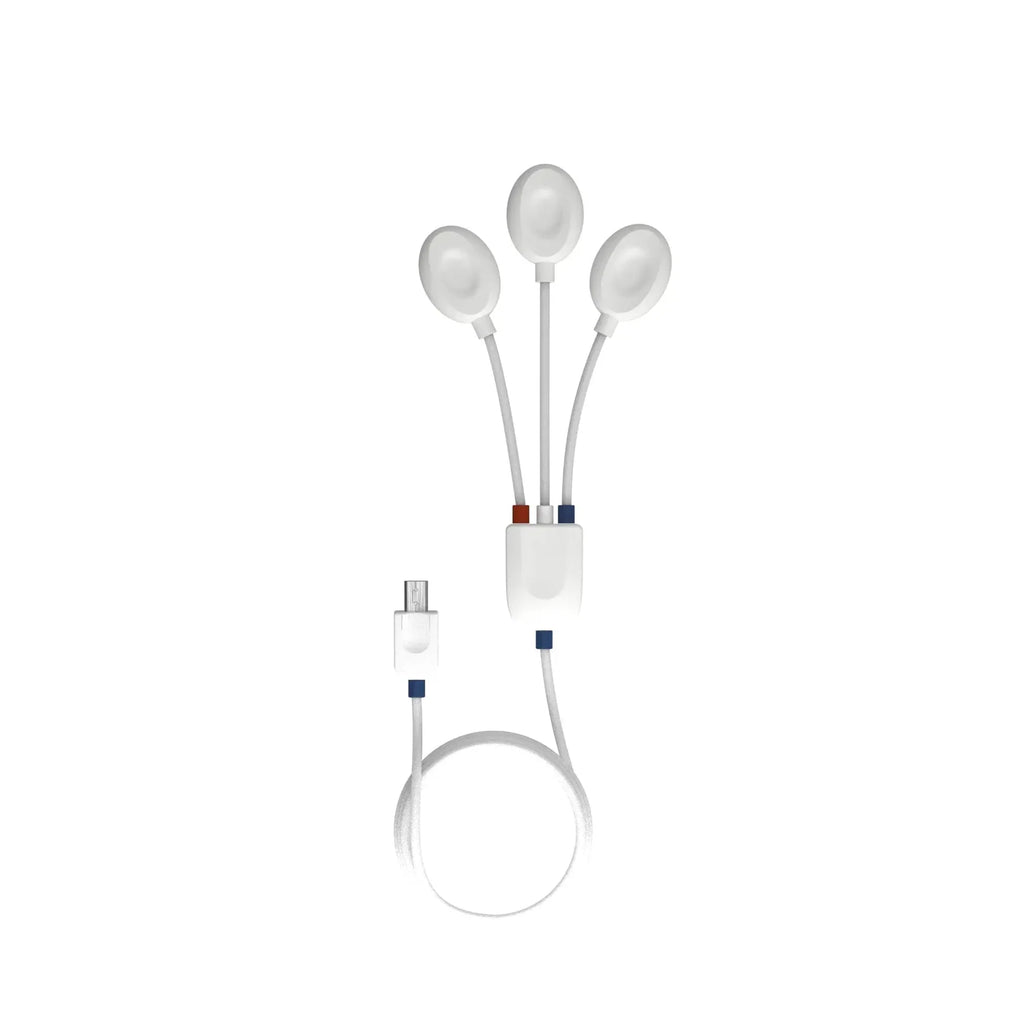

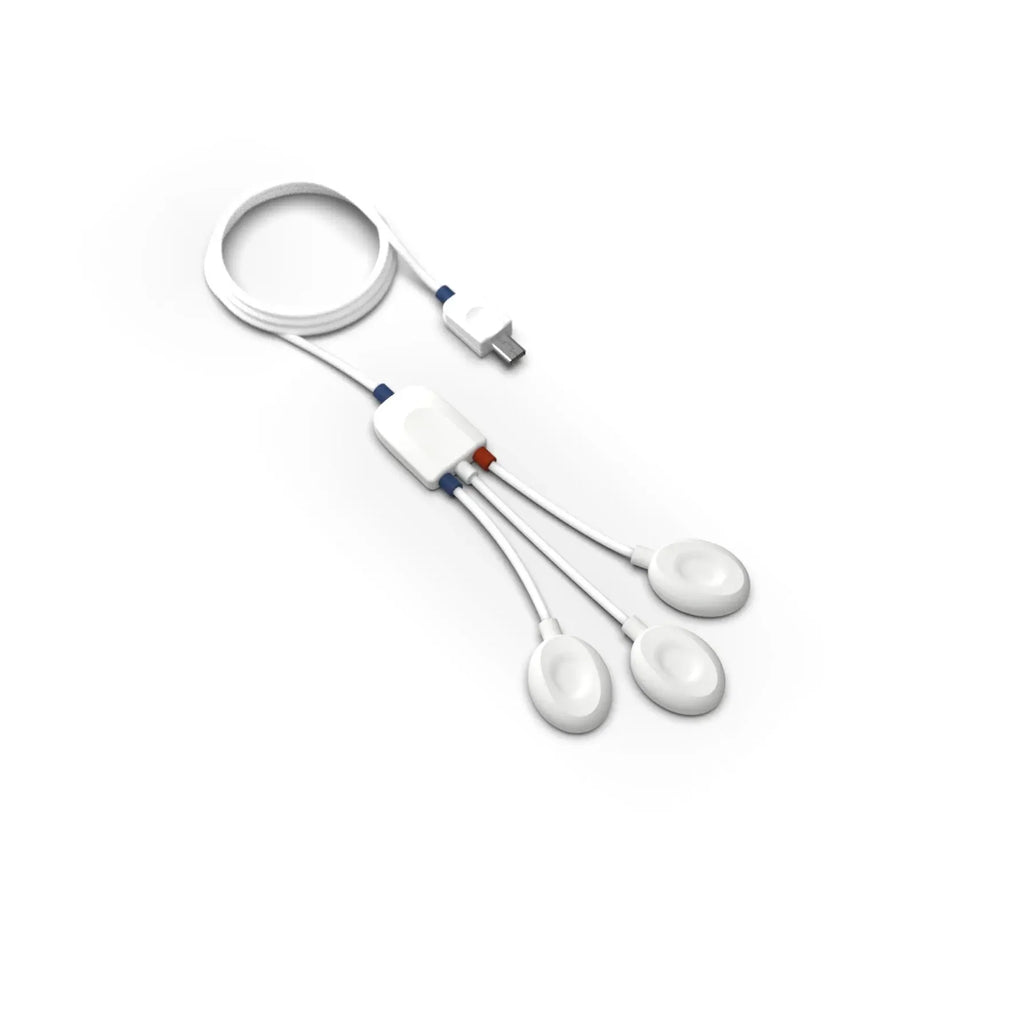

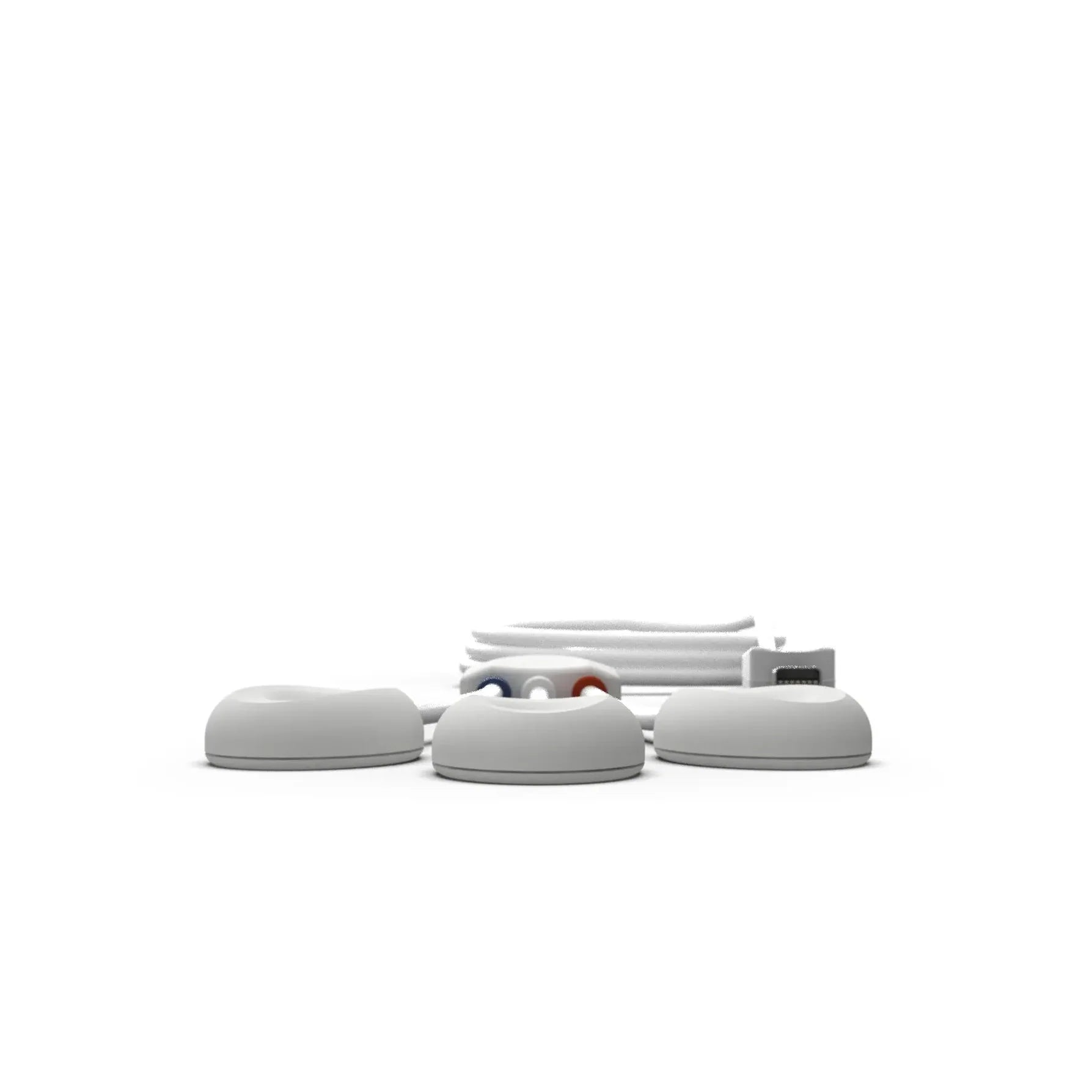

Biosignalsplux ECG sensor cable 4 cm + 6 cm + 4 cm

The low-noise local differential triode configuration for ECG measurements enables fast application and unobtrusive single-lead ECG data acquisition (however, custom electrode cable configurations are also available).

The state-of-the-art analog front-end design of this sensor is specifically geared towards analyzing the finest details in the data, providing medical-grade raw sensor data.

This sensor can be used to acquire heart rate data and other ECG features, making it applicable in research fields such as biomedicine, biofeedback, psychophysiology, and sports, as well as many other areas.

Features:

• Bipolar differential measurement

• Pre-conditioned analog output

• High signal-to-noise ratio

• Medical-grade raw data output

• Ready-to-use and in a compact design

Specifications:

• Gain: 1019

• Measurement Range: ±1.47 mV (at VCC = 3 V)

• Bandwidth: 0.48–100 Hz

• Input Impedance: >100 GΩ

• CMRR: 100 dB

• Cable Length: 100 cm ± 0.5 cm

• Connector Type: UC-E6 (Male connector; must be connected to a biosignalsplux acquisition station)

• Compatibility:
  This sensor is only compatible with the biosignalsplux acquisition system

Documentation:

• User Manual

• Datasheet

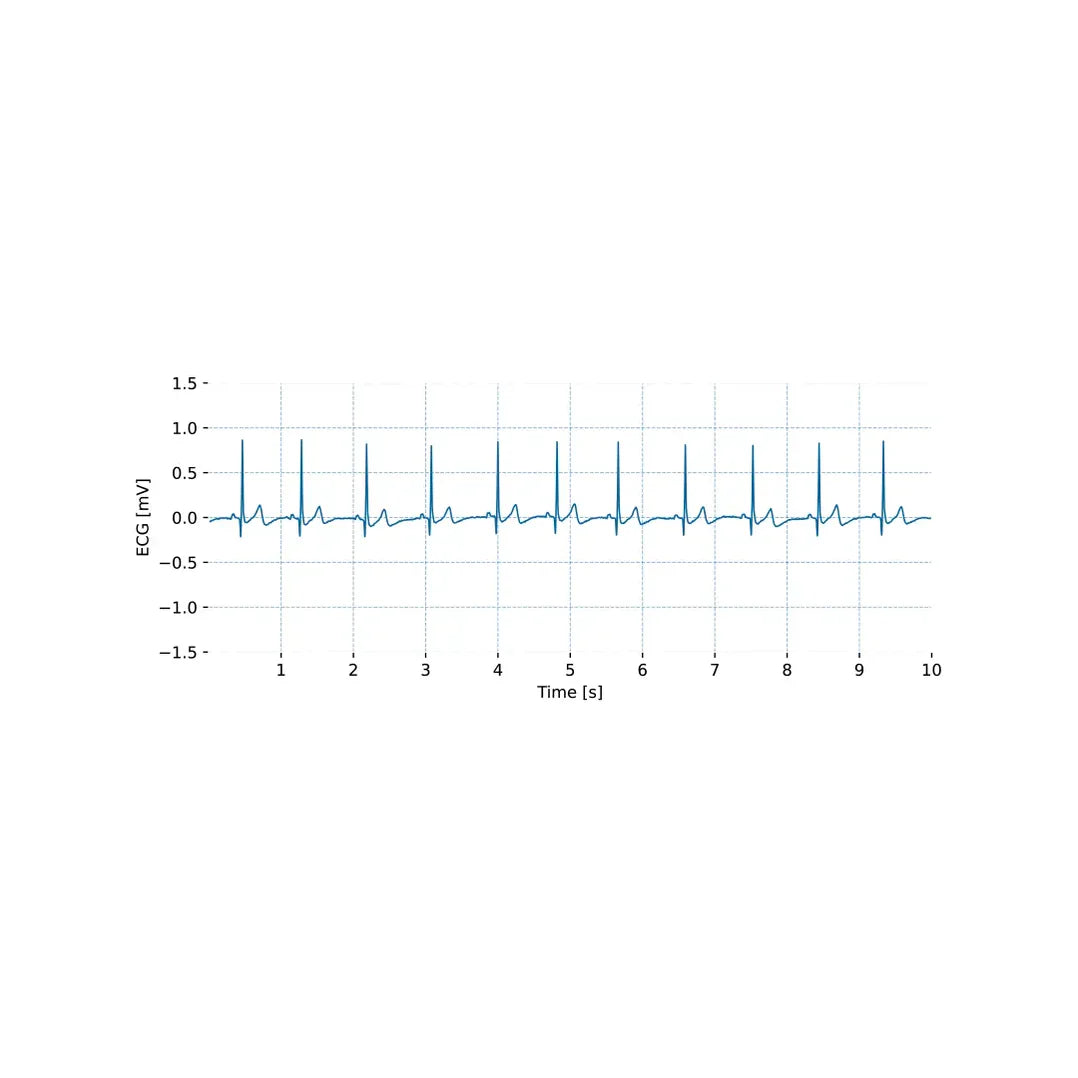

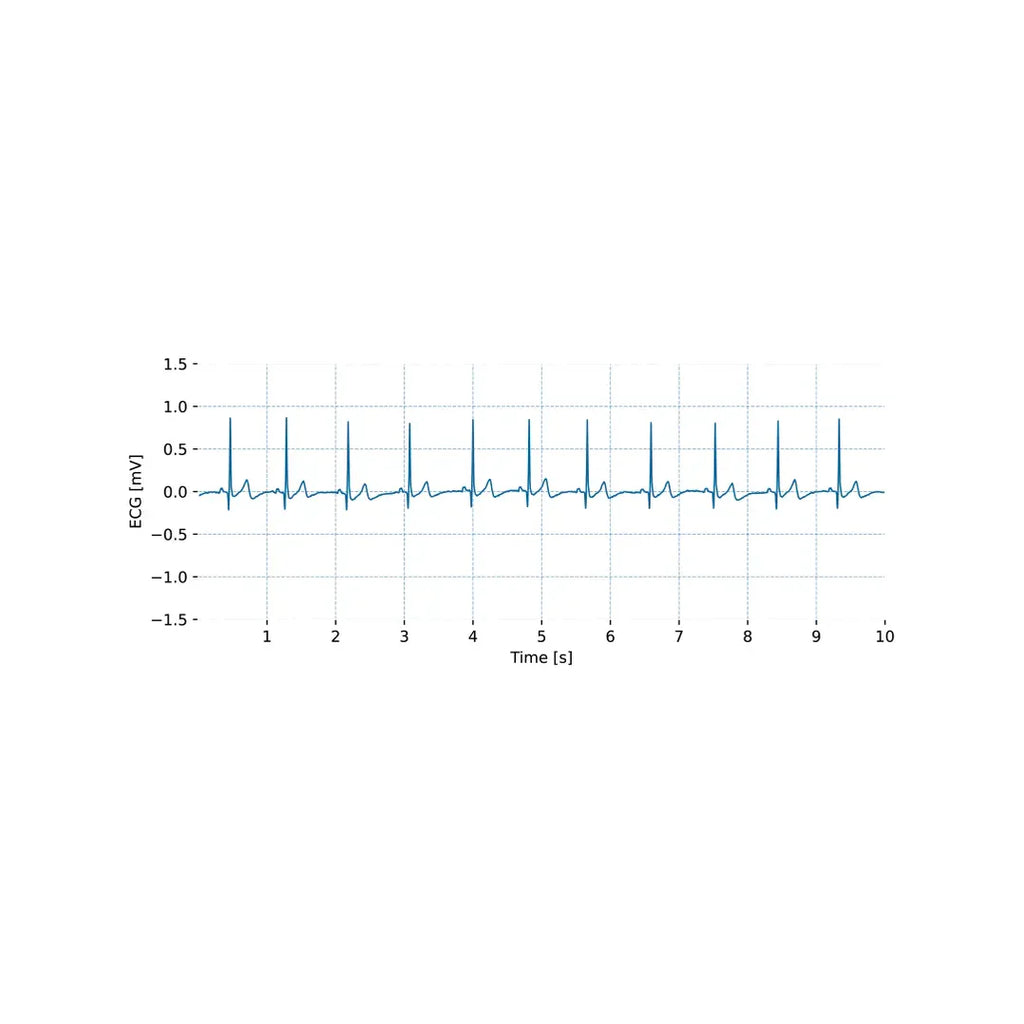

• Signal Samples (.ZIP)

• Technical Note – Electrocardiography (ECG) during Physical Exertion

• Technical Note – Electrocardiography (ECG) during Mental Challenge
