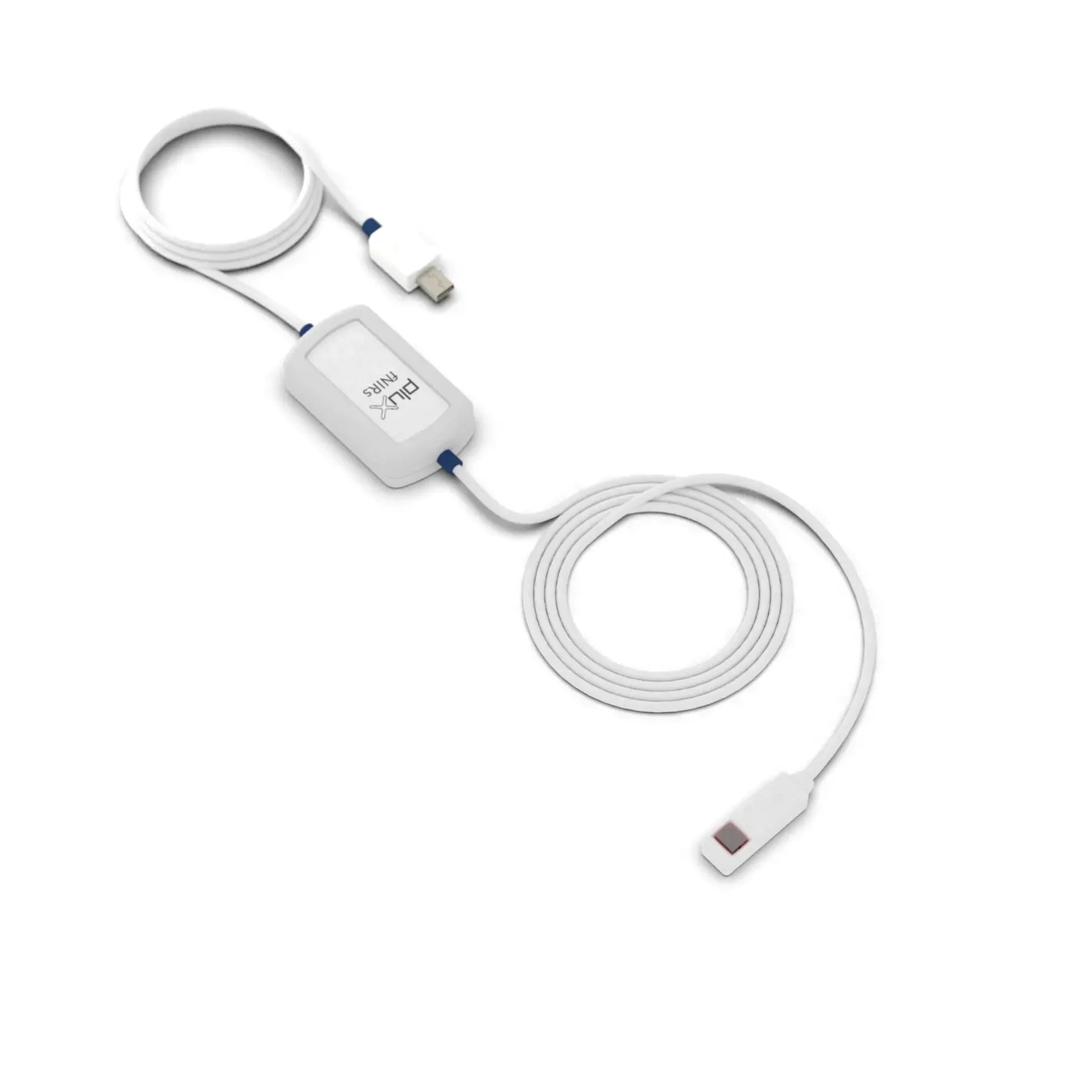

Biosignalsplux – Versatile Sensor for Measuring Blood Oxygen Saturation (SpO2) 4- and 8-channel Hubs

This optical sensor provides raw red and infrared (IR) light reflection data for developers and researchers who wish to develop their own algorithms to determine oxygen saturation (SpO₂) or related physiological measures.

Unlike conventional SpO₂ sensors, this device does not directly calculate oxygen saturation values, but rather provides the raw sensor output data. This enables the development of custom algorithms in areas where high-precision optical biosignal data is required.

Applications range from biomedical studies and algorithm development to research in wearables, psychophysiology, and much more.

Compatibility: Operation of this sensor requires a biosignalsplux data acquisition system, which is sold separately.

Special Features:

• Raw Data Output: Provides unprocessed red and infrared spectral reflection data for algorithm development.
• Flexible Use in Research: Finger clip version for conventional setups; versatile version for experimental sensor placements.
• Suitable for Multimodal Research: Fully compatible with all biosignalsplux acquisition systems and combinable with other biosignalsplux sensors.
• Developer-Oriented: Ideal for researchers developing their own or experimental SpO₂ algorithms.

Specifications:

• Dual LED illumination: 1 red and 1 infrared LED

• Red LED wavelength: 660 nm

• Infrared LED wavelength: 950 nm

• Detector sensitivity: 400 nm–1100 nm (max. at 920 nm)

• Resolution: 16 bit

• Sampling rate: 500 Hz

• Cable length: 100 cm ± 0.5 cm (customizable; additional costs may apply)

• Connector type: UC-E6 (male connector; must be connected to a Biosignalsplux acquisition station)

Documentation:

• biosignalsplux Documentation
• Getting Started with biosignalsplux
• Connecting and Configuring the SpO2 Sensor

Downloads:

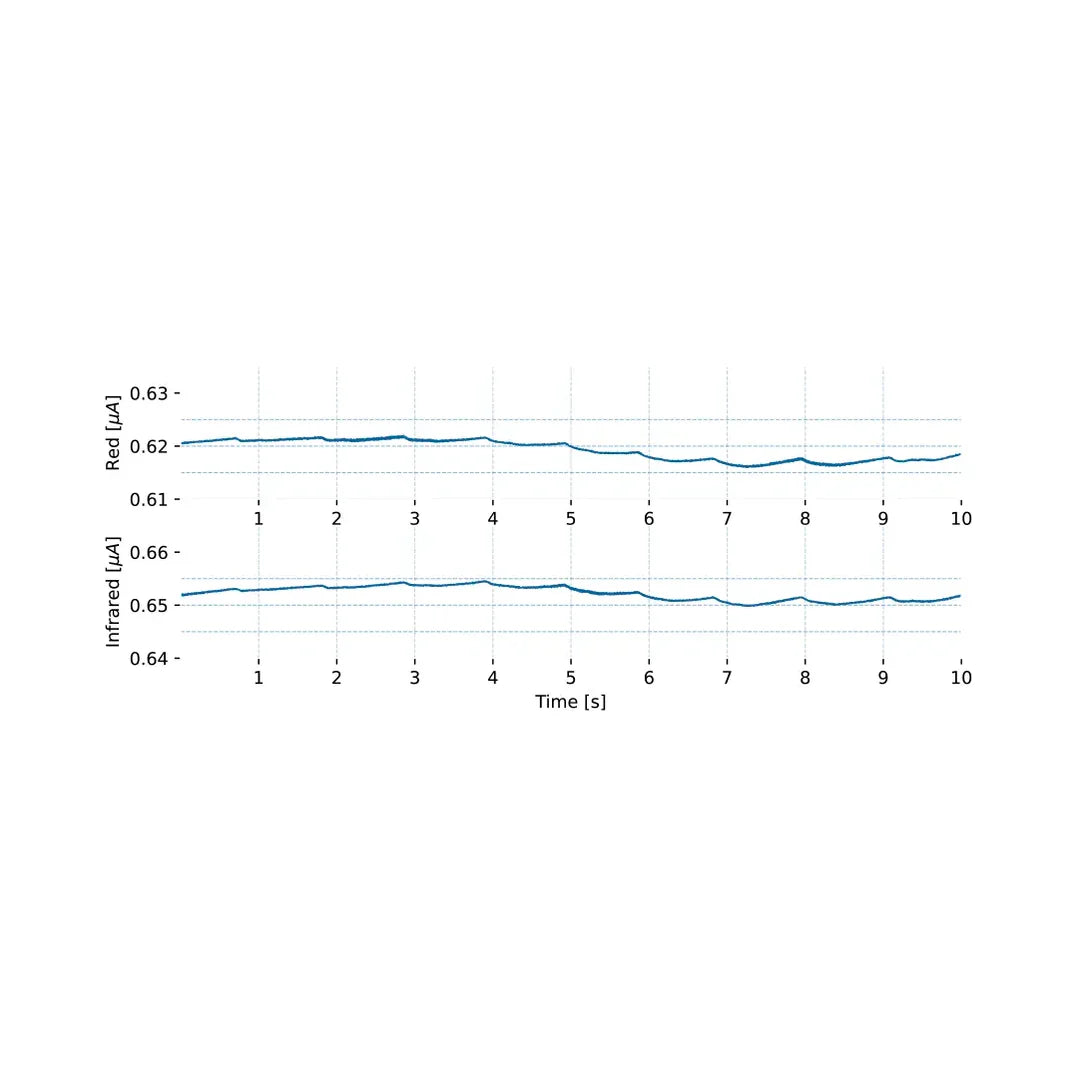

• Sample Data
