Description
Technical data:
- Typical operating voltage: 5 V
- Current measurement sensitivity: 200 mV/A
- Minimum logic voltage: 4.5 V
- Maximum logic voltage: 5.5 V
- Supply current: 9 mA
- Current measuring range: -10 A to +10 A (bidirectional, 10 A at 5 V)

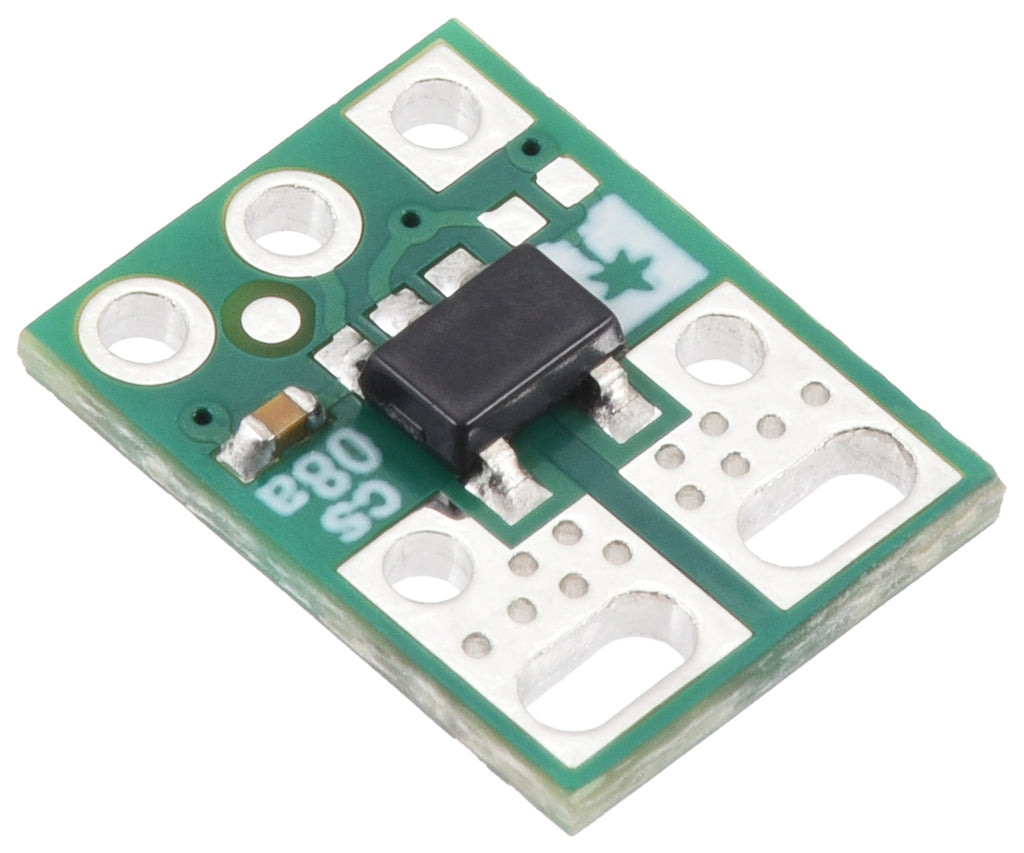

- Current sensor: Allegro ACS37041KLHBLT-010B5
- Dimensions: 7.6mm x 10.2mm
- Weight: 0.2g
