Description

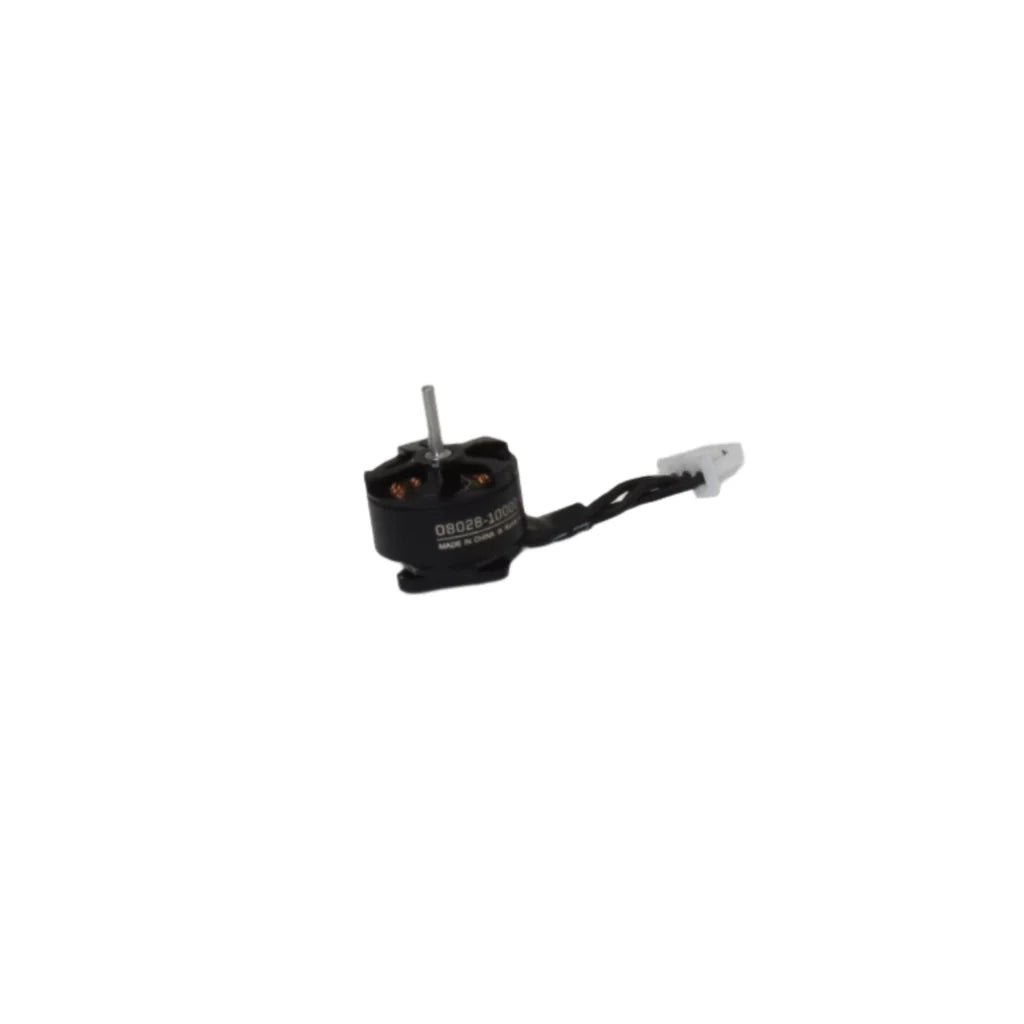

Replacement brushless motor for the Crazyflie 2.1 Brushless . Robust, efficient, and designed for precise flight performance. The motor features dual ball bearings that minimize friction and extend its service life. Combined with the BC55-35 propeller, the motor achieves an impressive efficiency of around 5 g of thrust per watt with only 10 g of thrust.
Made from high-quality materials such as 0.2 mm Kawasaki silicon steel sheets and aviation aluminum (AL2A12), this engine offers an excellent ratio of weight, power and durability.
Technical data:
- Motor KV: 10000
- Internal resistance: 520 mΩ
- Stator diameter: 8.4 mm
- Stator height: 2.8 mm
- Stator slots: 9
- Number of poles: 12
- No-load current (@4 V): 0.40 A
- Max. current consumption: 1.8 A
- Max. instantaneous power: 7.2 W
- Dimensions: Ø10.7 × L13.8 mm
- Shaft size: Ø1.0 × L5.0 mm
- Nominal voltage: 4.2 V (1S)
- Recommended propeller: Bitcraze 55-35
- Weight with cable: 2.3 g
Scope of delivery:
- 1× 08028-10000KV brushless motor
- 5× M1.4 × 3.7 mm Phillips screws (black)
