Description

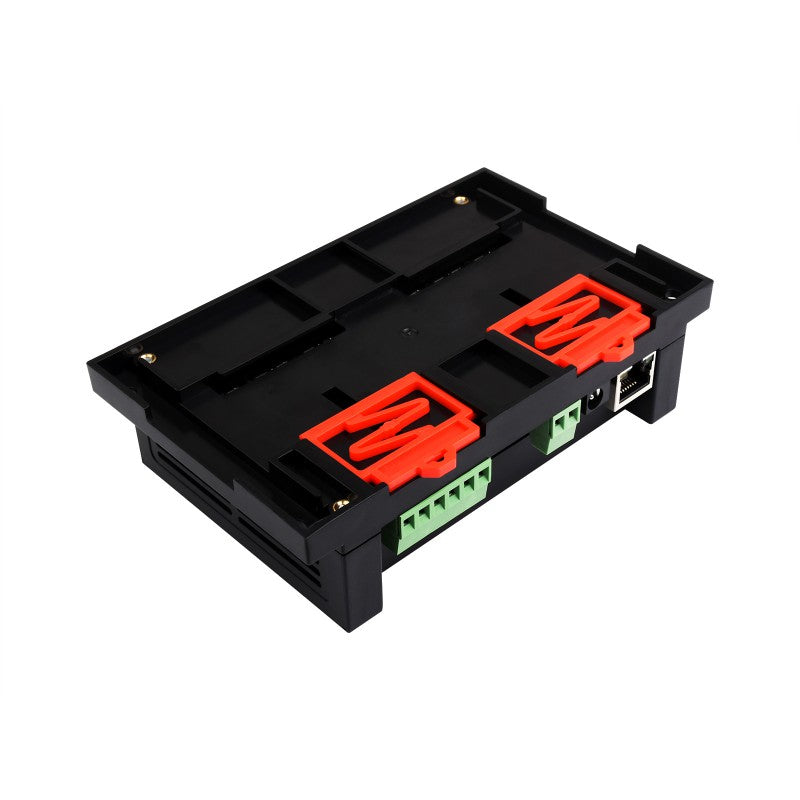

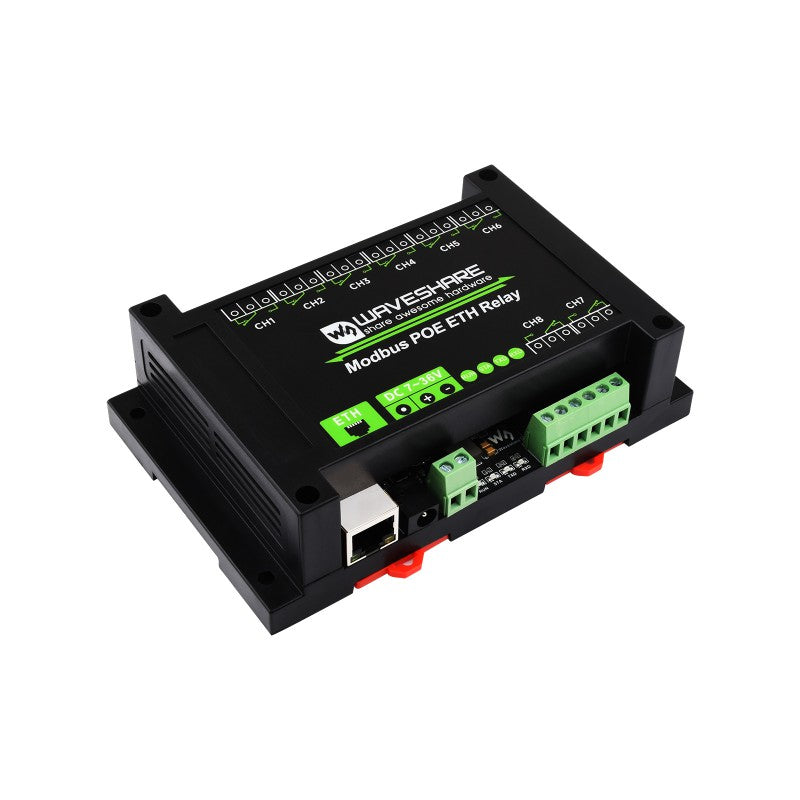

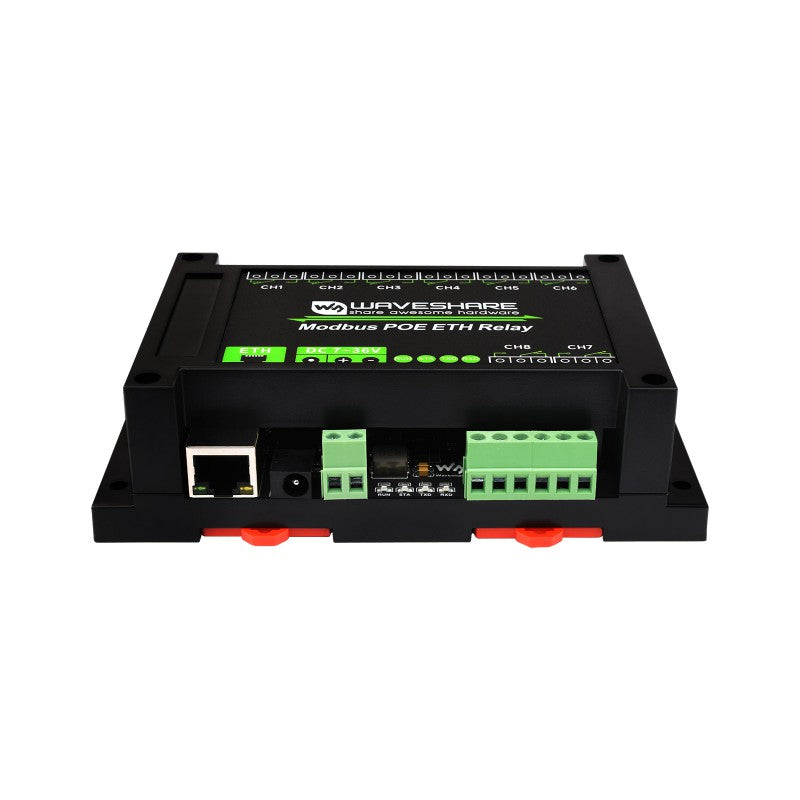

Waveshare (24964) 8-Channel Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE Port Communication, with Various Isolation and Protection Circuits, Industrial Rail Mount Enclosure
Industrial 8-channel relay module controlled via an Ethernet port, using Modbus RTU/Modbus TCP protocols, supporting PoE power supply, and supplied with an ABS enclosure for rail mounting.
The Modbus POE ETH relay is very easy to use. Its fast communication, stability, reliability, and security make it the ideal choice for industrial control devices and/or applications with high communication requirements.
Features:
- Flash-on and flash-off function: By passing an argument to the command, it is possible to switch the relay on for a specific time and then close it again automatically.
- Supports a wide input voltage range of 7 to 36 V DC and PoE power supply.
- Supports relay control via MQTT protocol, comes with Alibaba Cloud MQTT application demo.
- Integrated optocoupler isolation prevents relay interference from high-voltage circuits.
- Reverse-proof circuit, prevents accidental damage to the circuit due to incorrect connections
- High-quality relay, contact load capacity: ≤10 A 250 VAC/30 VDC
- DIN rail mountable ABS housing, easy to install, safe to use
- 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Specifications:
- Power supply: PoE port, DC 5.5*2.1 power connector or screw terminal (7~36V)
- Communication interface: PoE port, IEEE 802.3af compliant
Relay channels 8
- Contact form: 1NO 1NC
- Contact rating: ≤10A 250VAC/30VDC
- Modbus protocol: Modbus RTU protocol or Modbus TCP protocol
- LED indicators:
- RUN: Ethernet port indicator, flashes in 2-second cycles when the Ethernet port is functioning normally
- STA: MCU indicator, flashes when the MCU is working normally
- TXD: TX indicator, lights up when sending data
- RXD: RX indicator, lights up when receiving data
For further technical details please visit the manufacturer’s product page.
