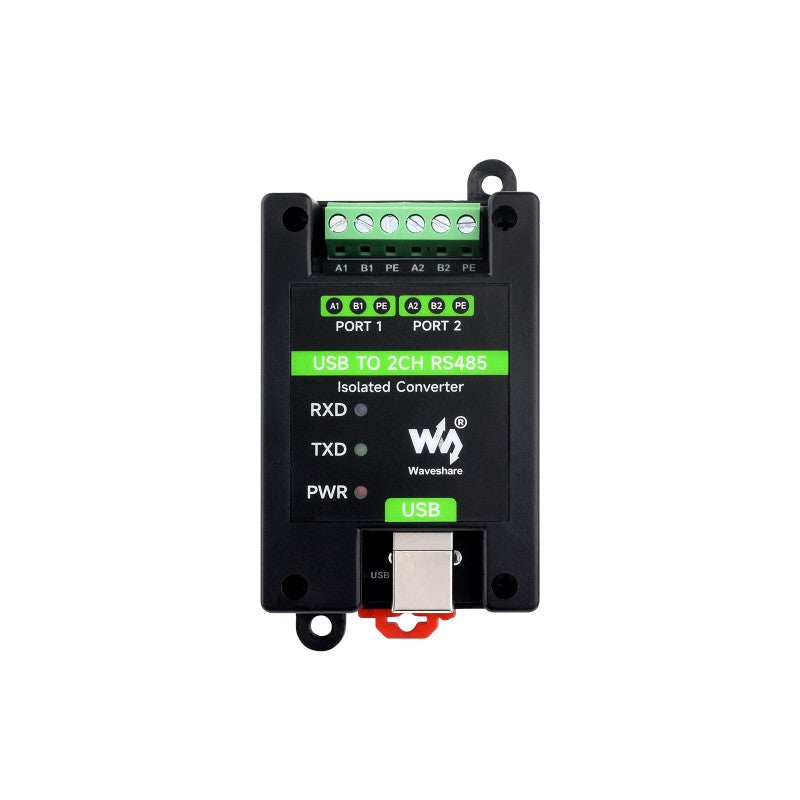

Waveshare USB TO 2CH RS485 Industrial Grade Isolated Converter

Waveshare 27646 Industrial-Grade USB to 2CH RS485 Isolation Converter, USB to RS485 Adapter, Built-in Original FT2232HL Chip, Stable and Reliable Communication, Multiple Fuses, Support Wall and Rail Mounting

Features:

• Uses the original chip FT2232HL, fast communication, stable and reliable, better compatibility.

• Extends USB to 2CH RS485 and enables simultaneous and independent communication for each channel.

• Integrated unibody power supply isolation, provides stable isolated voltage, no additional power supply required for the isolated port.

• Integrated unibody digital isolation, enables signal isolation, high reliability, strong anti-interference, low power consumption.

• Integrated TVS (Transient Voltage Suppressor) effectively suppresses overvoltages and transient voltage spikes in the circuit, lightning and electrostatic safe.

• Integrated 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching

• 3 LEDs to indicate power and transceiver status

• Industrial ABS enclosure for rail mounting, small, easy to install and cost-effective

Specifications:

• Product Type: Industrial-Grade Isolated USB to RS485 Converter
• Host connection: USB
• Device connection: RS485
• USB:
  • Operating voltage: 5 V
  • Connection: USB-B
  • Fuse: 200 mA self-recovery fuse, isolated output
  • Transmission distance: approx. 5 m
• Isolated RS485:
  • Connection: screw terminal
  • Directional control: Automatic hardware control
  • Fuse: 600 W lightning and surge protection, 15 kV ESD protection (integrated 120R compensating resistor)
  • Transmission distance: Up to 1.2 km
  • Transmission mode: Point-to-multipoint connections (up to 32 nodes, for 16 or more nodes, the use of repeaters is recommended)
  • Baud rate: 300 bit/s to 3 Mbit/s
• LED displays:
  • PWR: Red power indicator, lights up when a USB connection is established and voltage is detected
  • TXD: Green TX indicator, lights up when the USB port is sending data
  • RXD: Blue RX indicator, lights up when the device ports are sending data back
• Operating environment:
  • Operating temperature: -15 °C to 70 °C
  • Humidity: 5% RH to 95% RH
• Supported operating systems: macOS, Linux, Android, Windows 11/10/8.1/8/7
• Miscellaneous:

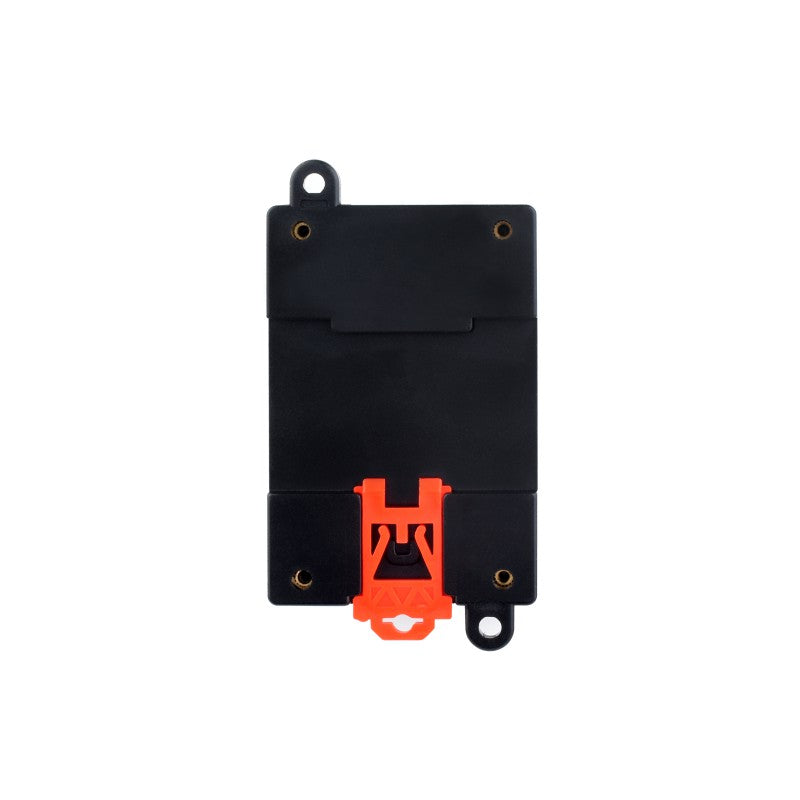

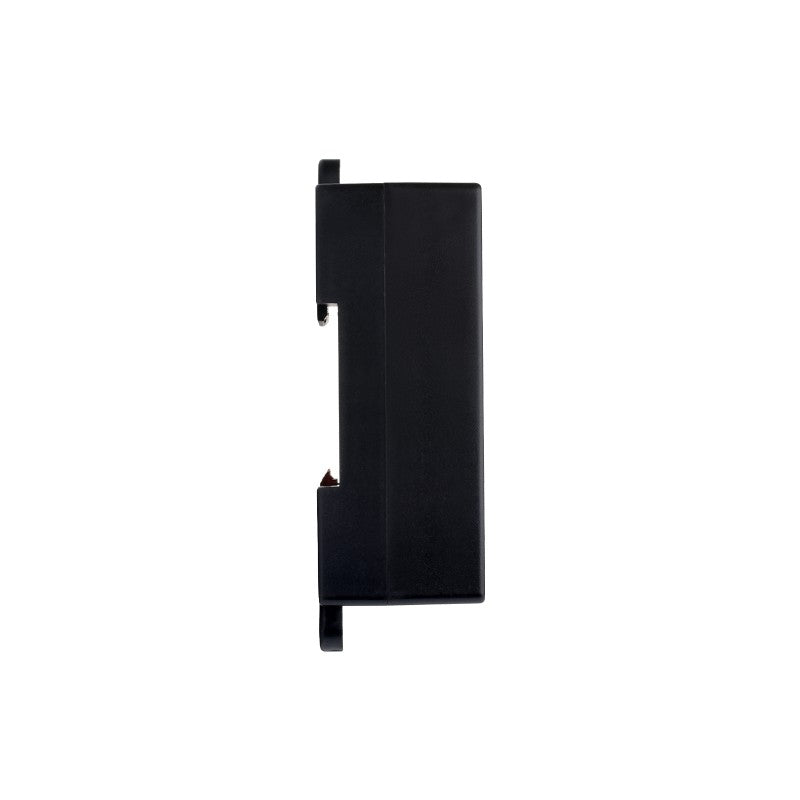

  • Housing: ABS housing for rail mounting, suitable for 35 mm DIN rail
  • Dimensions: 81.9 x 54.0 x 32.0 mm

For further technical details please visit the manufacturer's product page .
