Description

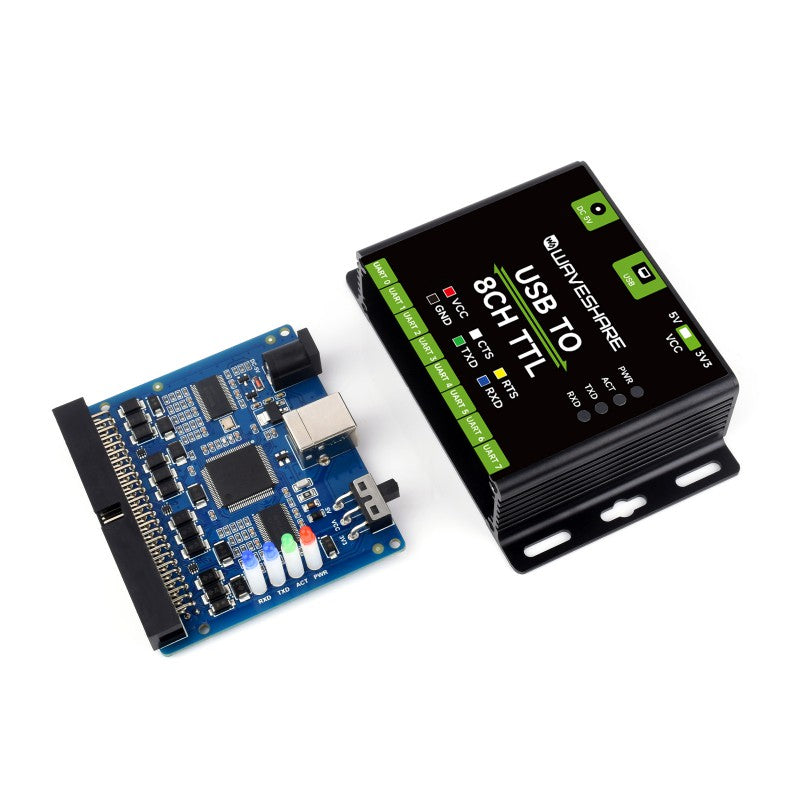

Waveshare 27076 Industrial USB to 8-Channel TTL Converter, USB to UART, Multiple Protection Circuits, Multi-System Support, USB to TTL Adapter
Features:
- Extends USB to 8-channel TTL (UART) with hardware flow control, enabling simultaneous and independent communication for each channel.
- Integrated self-recovery fuse and protection diodes ensure stable current/voltage outputs, provide overcurrent/overvoltage protection and improve shock resistance.
- Integrated TVS (Transient Voltage Suppressor) effectively suppresses overvoltages and transient voltage spikes in the circuit, lightning protection and ESD protection.
- Integrated voltage converter circuit with overvoltage and ESD protection for safe and stable communication.
- Integrated TTL serial port with 3.3 V and 5 V voltage level switch allows selection of the TTL level.

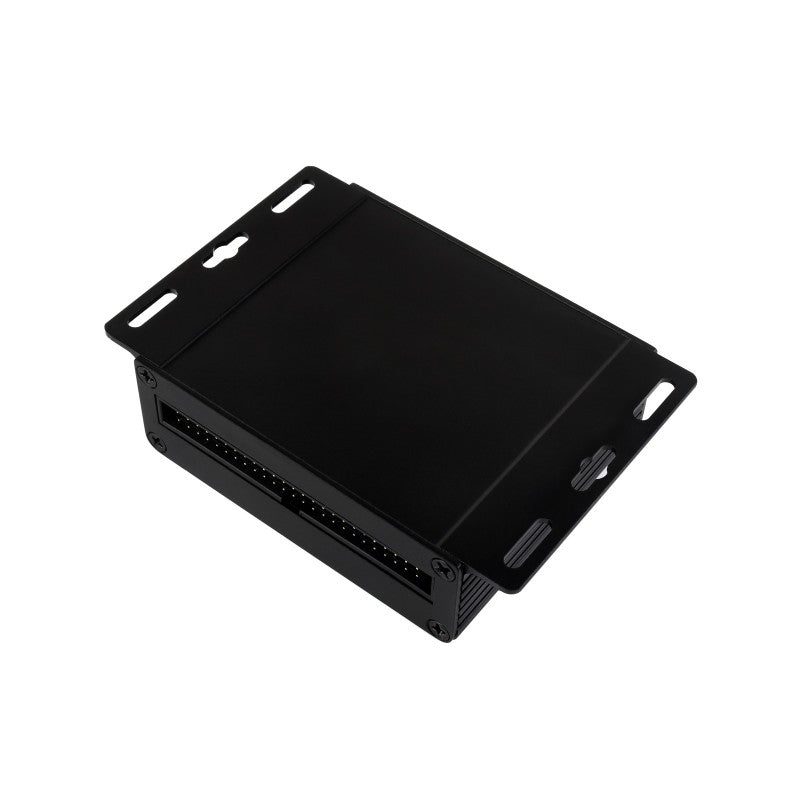

- Aluminum alloy body with matte polished surface, CNC machined openings, solid and durable, high quality workmanship.
- 4 LEDs to indicate power and transceiver status.
Specifications:
- Product Type: Industrial USB to TTL Converter
- Host Port: USB
- Device connection: TTL (UART)
- Baud rate: 1200 bit/s to 2 Mbit/s
- USB:
- Operating voltage: 5 V
- Connection: USB-B
- Fuse: 200 mA self-recovery fuse, ESD protection
- Power supply:
- Connection: 5 V DC connection
- Fuse: Overvoltage protection and reverse polarity protection
- TTL (UART):
- Connector: 50-pin anti-reverse connector
- Fuse: TVS diode, overvoltage protection and ESD protection
- TTL level: 3.3 V/5 V (configurable)
- Show:
- PWR: Power indicator, lights up red when a USB connection is established and voltage is detected
- ACT: Status indicator, lights up green when the driver is detected
- TXD: TX indicator, lights up when the USB port is sending data
- RXD: RX indicator, lights up when the device ports are sending data back
- Operating environment:
- Operating temperature: -40 °C to 85 °C
- Humidity: 5% RH to 95% RH
- Operating systems: Mac, Linux, Android, Windows 11/10/8.1/8/7
For further technical details please visit the manufacturer's product page .
