5V, 1A Step-Up/Step-Down Voltage Regulator S13V10F5

PololuSKU: EXP-R25-1534

Price:
Sale price6,60 €

excl. VAT plus Versand
Delivery time: 3-5 days

Stock:
In stock (44 units), ready to be shipped

Manufacturer Product Number: 4083
Taric: 90328900
Country of origin: US

Fast shipping within 24 hours
Shipping from Germany
Encrypted payment

Description

This powerful synchronous switching step-up/step-down regulator efficiently produces 5 V from input voltages between 2.8 V and 22 V. Its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below 5 V. The board measures 8.9 mm × 12.1 mm, has a typical efficiency of 85% to 95%, and can supply a typical continuous output current of around 1 A.

The S13VxF5 family of efficient switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters) use a buck-boost topology to convert both higher and lower input voltages to a regulated 5 V output. They take input voltages from 2.8 V to 22 V and increase or decrease them as necessary, offering a typical efficiency of over 85% and typical continuous output currents between 1 A and 3 A . The flexibility in input voltage offered by this family of regulators is especially well-suited for battery-powered applications in which the battery voltage begins above 5 V and drops below as the battery discharges. Without the typical restriction on the battery voltage staying above the required voltage throughout its life, new battery packs and form factors can be considered.

The different members of this family offer different continuous output currents:
  • S13V10F5: 1 A continuous output current
  • S13V15F5: 1.5 A continuous output current
  • S13V20F5: 2 A continuous output current
  • S13V30F5: 3 A continuous output current

The regulators have under-voltage lockout, output over-voltage protection, and over-current protection. A thermal shutdown feature also helps prevent damage from overheating and a soft-start feature limits the inrush current and gradually ramps the output voltage on startup. The larger 3 A S13V30F5 has reverse-voltage protection up to 20 V, but the S13V10F5, S13V15F5, and S13V20F5 do not.

Features:
  • Input voltage: 2.8 V to 22 V
  • Output voltage: 5 V with 3% accuracy
  • Typical maximum continuous output current: 1 A (see the maximum continuous output current graph below)
  • Typical efficiency of 85% to 95%, depending on input voltage and load (see the efficiency graph below)
  • 10 mA to 20 mA typical no-load quiescent current (see the quiescent current graph below)
  • Input under-voltage lockout and output over-voltage protection
  • Soft-start feature limits inrush current and gradually ramps output voltage
  • Over-current protection and over-temperature shutoff
  • 1 A output current limit
  • Fixed switching frequency of ~500 kHz
  • Compact size: 8.9 mm × 12.1 mm × 4.2 mm

Specs:
  • Minimum operating voltage: 2.8 V
  • Maximum operating voltage: 22 V
  • Continuous output current: 1 A
  • Output voltage: 5 V
  • Reverse voltage protection?: N
  • Maximum quiescent current: 20 mA
  • Output type: fixed 5V

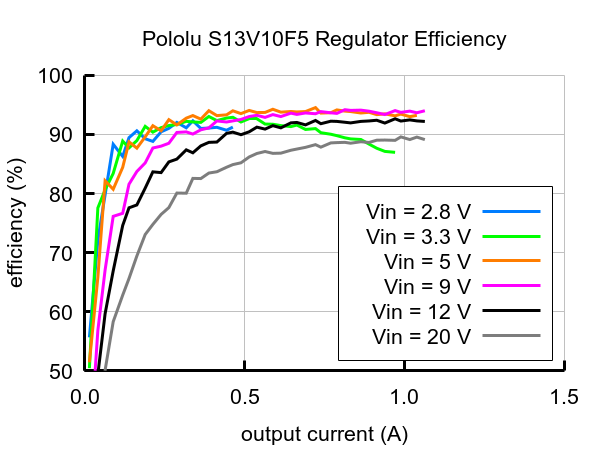

Typical efficiency:

Maximum continuous output current:

Quiescent current:
